Description

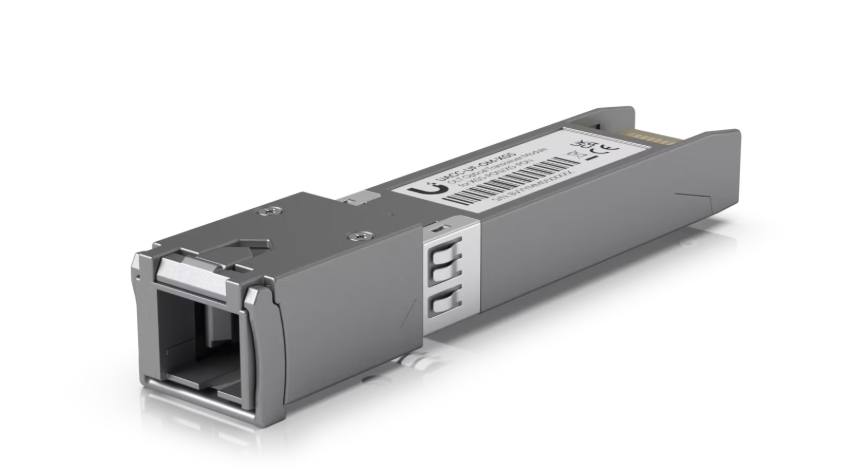

Ubiquiti UISP Fiber XGS/XG Optical Transceiver UACC-UF-OM-XGS
The Ubiquiti UACC-UF-OM-XGS is a 10 Gbps XGS/XG optical transceiver module designed for the UISP Fiber OLT XGS. It supports single-mode fiber, SC/UPC connectivity, 10 Gbps downlink, XGS/XG uplink operation, and fiber connections up to 20 km, making it suitable for ISP fiber broadband and XGS-PON / XG-PON network deployments.
Specifications:
- Model: Ubiquiti UISP Fiber XGS/XG Optical Transceiver UACC-UF-OM-XGS
- Device Type: XGS/XG Optical Transceiver Module
- Ethernet Ports: 1 × SC/UPC fiber connector
- CPU: Not applicable
- RAM: Not applicable
- Storage: Not applicable
- Operating System: Not applicable
- Routing: XGS/XG optical link with 10 Gbps downlink, 10 Gbps XGS uplink / 2.5 Gbps XG uplink, 1577 nm TX wavelength, 1270 nm RX wavelength, and up to 20 km cable distance
- Management: Managed through compatible UISP Fiber OLT XGS equipment
- Power: Powered through SFP module slot; maximum power consumption 2.6W
- Dimensions: SFP module form factor
- Use Case: UISP Fiber OLT XGS deployments, XGS-PON / XG-PON fiber networks, ISP broadband distribution, FTTx installations, single-mode fiber links, and long-distance optical network connections.
