Description

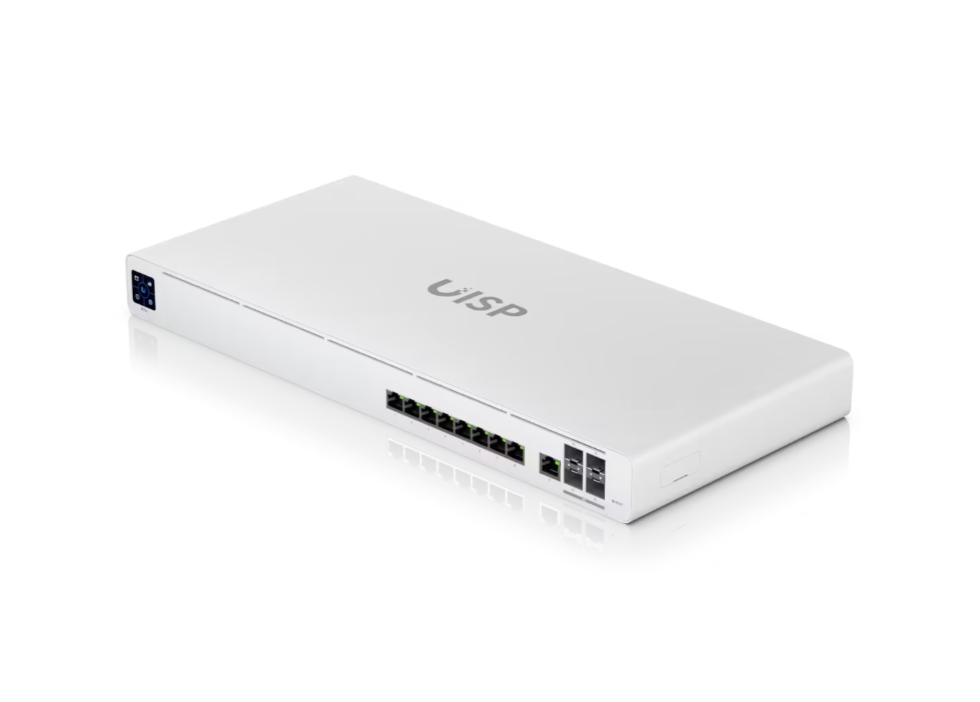

Ubiquiti UISP Router Pro UISP-R-Pro
The Ubiquiti UISP Router Pro UISP-R-Pro is a 10 GbE router designed for ISP applications. It provides multiple Gigabit RJ45 LAN ports, a dedicated Gigabit WAN port, four 1/10G SFP+ ports, UISP management, touchscreen display, and Power TransPort DC input support for professional ISP, WISP, and network infrastructure deployments.
Specifications:
- Model: Ubiquiti UISP Router Pro UISP-R-Pro
- Device Type: 10 GbE ISP Router
- Ethernet Ports: 8 × GbE RJ45 LAN ports, 1 × GbE RJ45 WAN port, 4 × 1/10G SFP+ ports
- CPU: Quad-core ARM Cortex-A57 at 1.7 GHz
- RAM: 4 GB DDR4
- Storage: 16 GB eMMC
- Operating System: UISP routing firmware
- Routing: 10 GbE routing for ISP applications with Gigabit LAN/WAN and 1/10G SFP+ uplink support
- Management: Ethernet, Bluetooth, UISP application version 1.4.5 and later, and 1.3-inch touchscreen
- Power: Universal AC input 100–240V AC, 1.5A max, 50/60Hz; Power TransPort DC input 27V DC, 2.2A; internal 60W AC/DC power supply; maximum power consumption 50W
- Dimensions: 442.4 × 200 × 43.7 mm
- Use Case: ISP routing, WISP network infrastructure, 10G SFP+ uplinks, service provider edge routing, rack-mounted network routing, fiber aggregation, and UISP-managed deployments.
