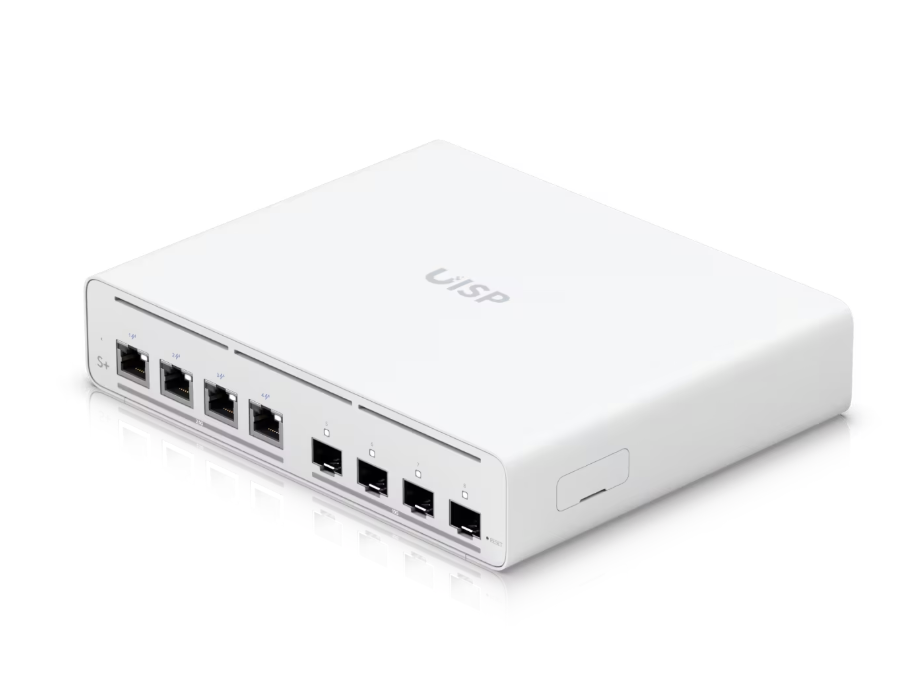

Ubiquiti UISP Switch Plus UISP-S-Plus
The Ubiquiti UISP Switch Plus UISP-S-Plus is a managed 2.5 GbE PoE switch designed for ISP, WISP, tower, and outdoor network infrastructure deployments. It features 4 × 2.5 GbE RJ45 ports with 27V passive PoE, 4 × 10G SFP+ ports, a 160W total PoE budget, and UISP management for professional high-speed wireless and fiber-backed deployments.
Specifications:
- Model: Ubiquiti UISP Switch Plus UISP-S-Plus
- Device Type: 2.5 GbE PoE UISP Switch
- Ethernet Ports: 4 × 1/2.5 GbE RJ45 LAN ports, 4 × 1/10G SFP+ ports
- CPU: Dual-core ARM Cortex-A55 at 1.4 GHz
- RAM: 1 GB DDR4
- Storage: 256 MB NAND
- Operating System: UISP switch firmware
- Routing: Layer 2 switching with 50 Gbps total non-blocking throughput, 100 Gbps switching capacity, 74.4 Mpps forwarding rate, port isolation, speed limiting, DHCP snooping, and 27V passive PoE output
- Management: Ethernet in-band, Bluetooth, and UISP application management
- Power: 27V DC, 7.04A power adapter included; Power TransPort DC input; 25W maximum power consumption excluding PoE output; 160W total available PoE; 20W per port in 2-pair mode or 40W per port in 4-pair mode
- Dimensions: Not specified
- Use Case: ISP and WISP network deployments, UISP radio aggregation, 2.5 GbE PoE device installations, 10G SFP+ uplinks, tower switching, outdoor wireless infrastructure, MicroPoP sites, and managed high-speed UISP networks.
