Description

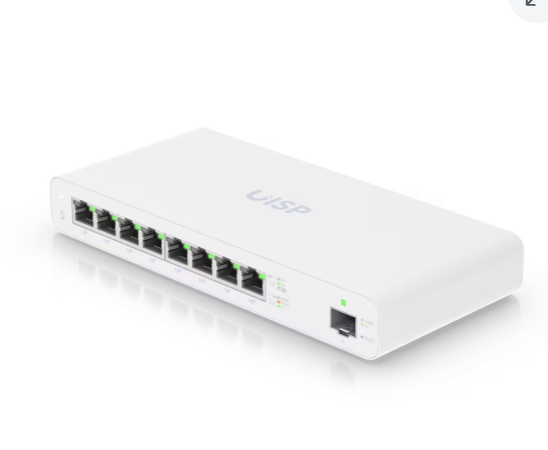

Ubiquiti UISP Switch UISP-S
The Ubiquiti UISP Switch UISP-S is an 8-port Layer 2 Gigabit PoE switch designed for MicroPoP, WISP, ISP, and outdoor network deployments. It features 8 GbE RJ45 ports, 1 × 1G SFP port, 27V passive PoE output, 110W total PoE availability, and UISP management for building secure, high-performance networks.
Specifications:
- Model: Ubiquiti UISP Switch UISP-S
- Device Type: 8-Port Layer 2 Gigabit PoE Switch
- Ethernet Ports: 8 × GbE RJ45 ports, 1 × 1G SFP port
- CPU: Not specified
- RAM: Not specified
- Storage: Not specified
- Operating System: UISP switch firmware
- Routing: Layer 2 switching with 9 Gbps total non-blocking throughput, 18 Gbps switching capacity, 13.392 Mpps forwarding rate, and 27V passive PoE output
- Management: Ethernet in-band, Bluetooth BLE, and UISP application version 1.4.0 and later
- Power: 27V DC, 4.4A power adapter included; supported voltage range 24–28V DC; 8W maximum power consumption excluding PoE output; 110W total available PoE; up to 30W passive PoE per port
- Dimensions: 210.4 × 95 × 29 mm
- Use Case: MicroPoP deployments, WISP and ISP network sites, powering compatible UISP radios, 27V passive PoE device installations, SFP fiber uplinks, outdoor wireless infrastructure, and managed UISP networks.
