Ubiquiti UniFi AC SHD UAP-AC-SHD
The Ubiquiti UniFi AC SHD UAP-AC-SHD is a high-density WiFi 5 ceiling or wall-mounted access point designed for demanding office, school, hotel, retail, and enterprise wireless environments. Built with an 8-stream dual-band design, 4 × 4 DL MU-MIMO on both 5 GHz and 2.4 GHz bands, and support for 1000+ clients, it delivers reliable wireless performance for dense user areas. With dual Gigabit RJ45 ports, PoE+ power, wireless meshing, band steering, fast roaming, guest portal features, and UniFi Network management, the UAP-AC-SHD is ideal for professional deployments that need stable, centrally managed WiFi coverage across high-client-count spaces.
Specifications:
- Model: Ubiquiti UniFi AC SHD UAP-AC-SHD
- Device Type: Ceiling / Wall-Mounted WiFi Access Point
- WiFi Standard: WiFi 5 / 802.11ac
- Wireless Bands: Dual-band 2.4 GHz and 5 GHz
- Spatial Streams: 8-stream wireless design
- MIMO: 4 × 4 DL MU-MIMO on 5 GHz and 2.4 GHz
- Coverage Area: Up to 140 m² / 1,500 ft²
- Client Support: 1000+ clients

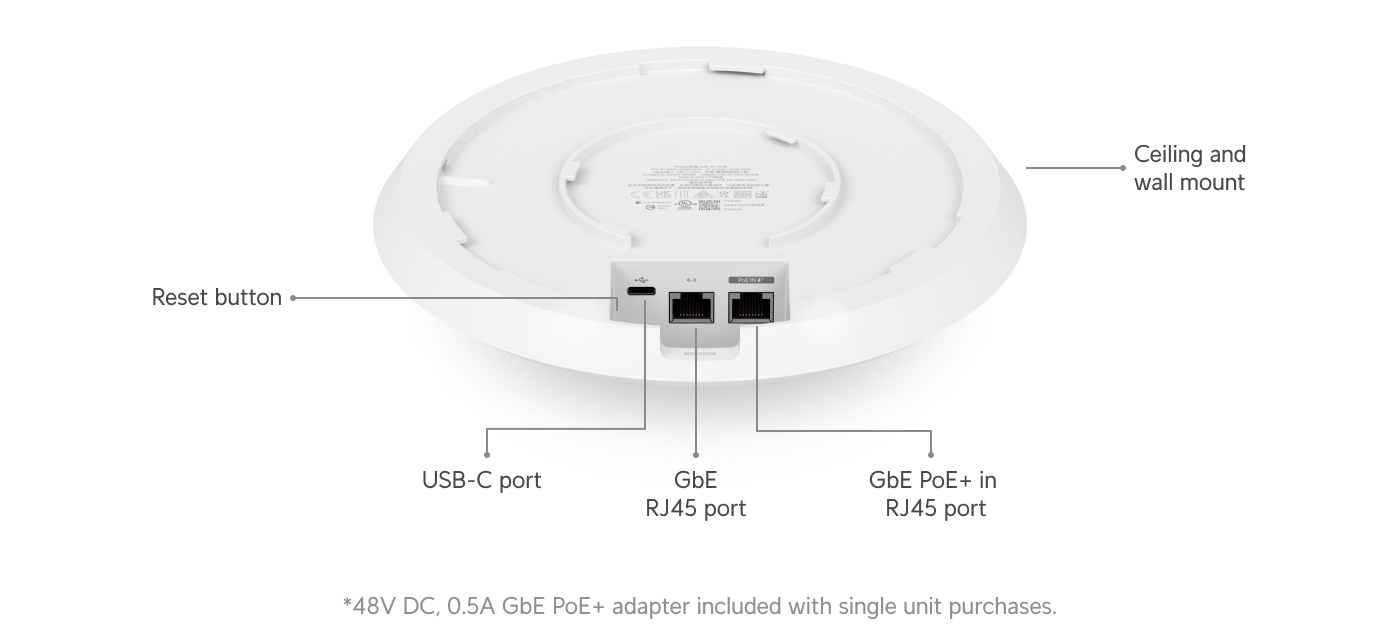

- Networking Interface: 2 × GbE RJ45 ports
- Uplink: Gigabit Ethernet
- 5 GHz Performance: Up to 1.7 Gbps with 80 MHz channel width
- 2.4 GHz Performance: Up to 800 Mbps with 40 MHz channel width
- Antenna Gain: 6 dBi on both 5 GHz and 2.4 GHz
- Max TX Power: 25 dBm on both 5 GHz and 2.4 GHz
- Max BSSIDs: 8 per radio
- Wireless Features: Wireless meshing, band steering, 802.11r fast roaming, 802.11k radio resource management, 802.11v BSS transition management, advanced radio management, and Passpoint / Hotspot 2.0
- Guest Features: Captive hotspot portal, custom branding landing page, voucher authentication, payment-based authentication, external portal support, password authentication, and guest network isolation
- Security Features: Private Pre-Shared Key, client device isolation, WiFi speed limiting, RADIUS over TLS, and dynamic RADIUS-assigned VLAN
- Power Method: PoE+
- Maximum Power Consumption: 20W
- PoE Adapter: Included
- Supported Voltage Range: 44–57V DC
- Mounting: Ceiling or wall mount, Pro Mount included

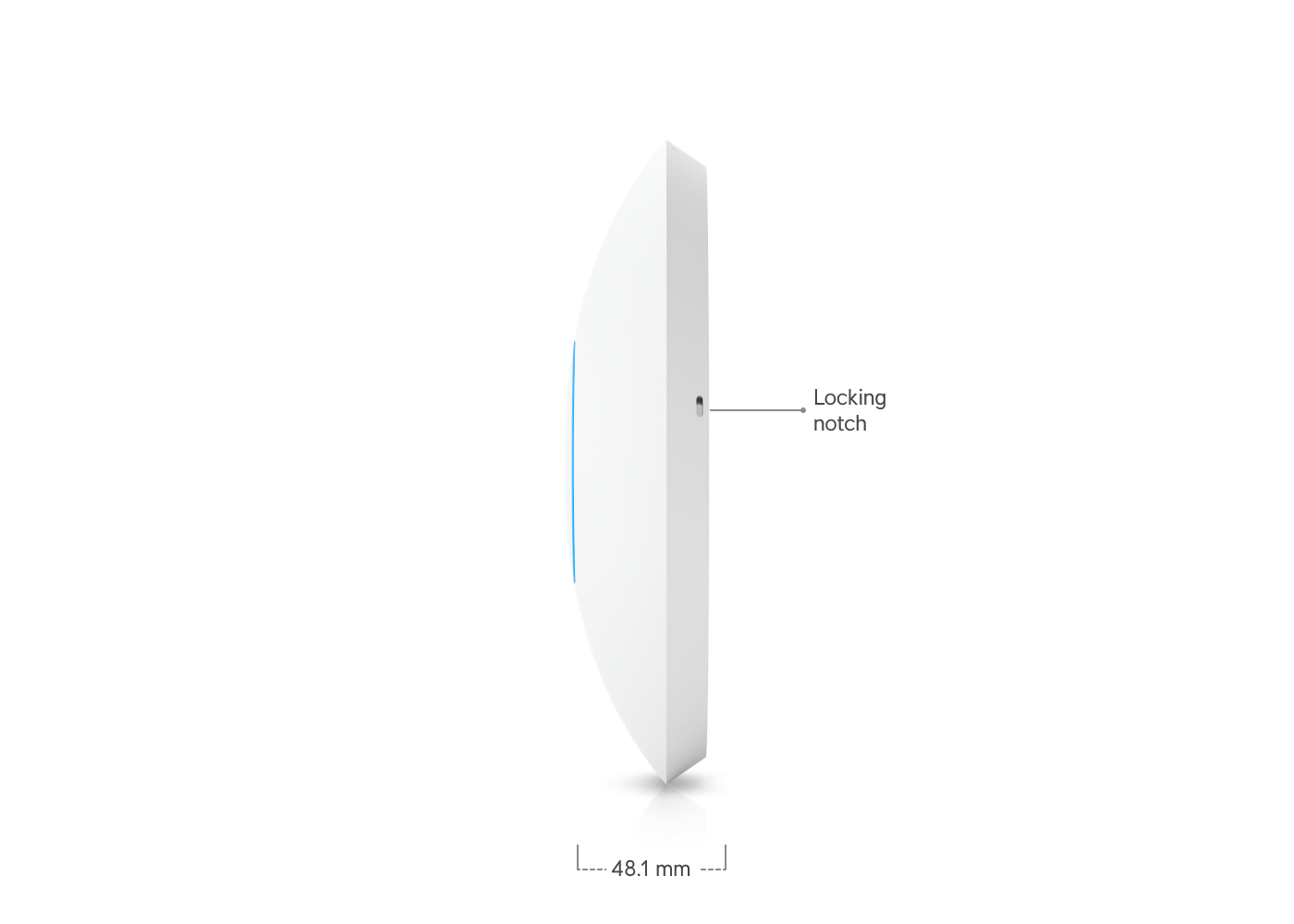

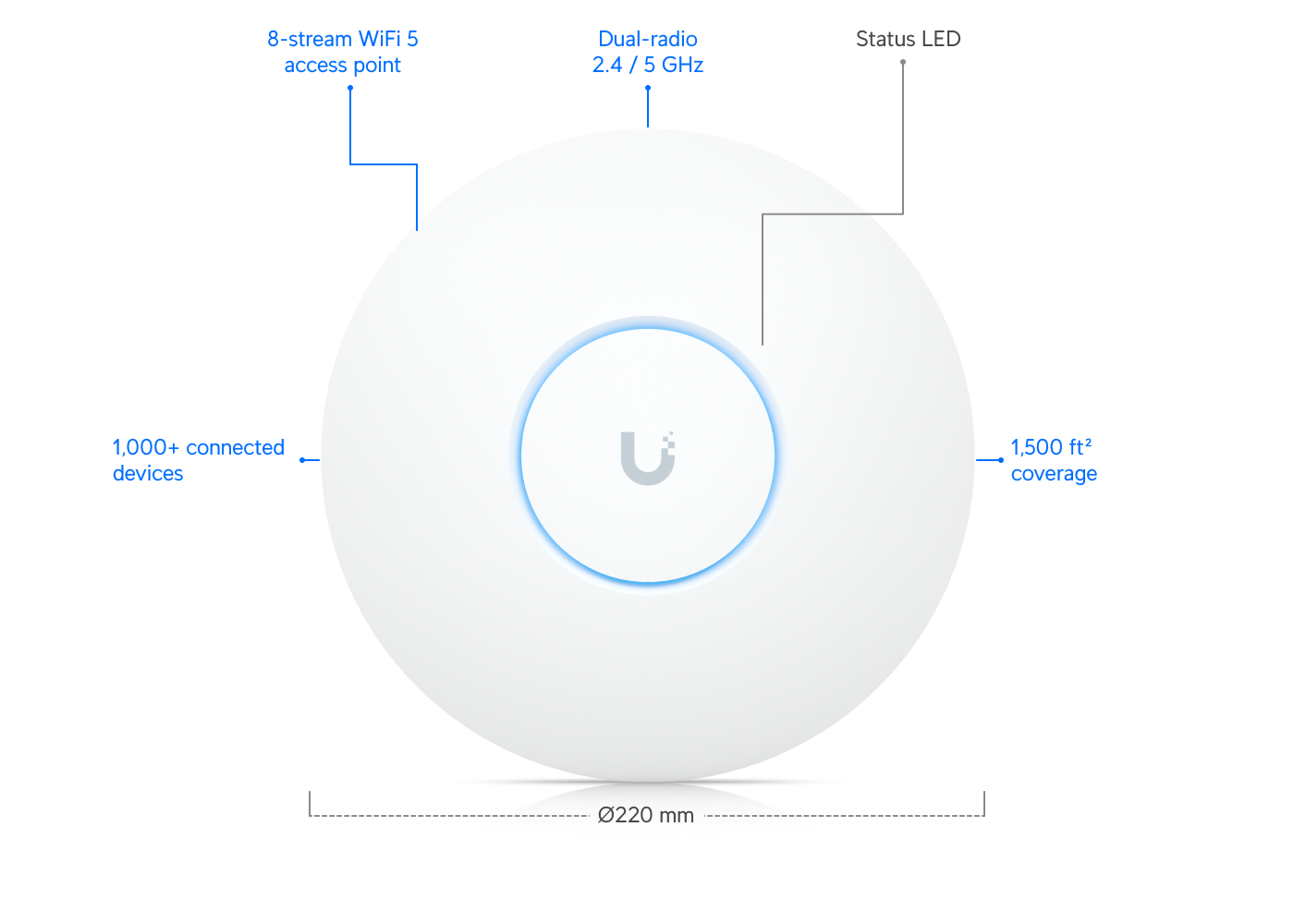

- Dimensions: Ø220 × 48.1 mm
- Weight: 700 g device only; 830 g with mount
- Management: UniFi Network via Ethernet or WiFi
- Channel Bandwidth: HT 20/40 and VHT 20/40/80 MHz
- Operating Temperature: -10°C to 70°C
- Operating Humidity: 5% to 95% non-condensing
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes
- UniFi Requirement: UniFi Network version 6.0.45 or later
- Use Case: High-density WiFi deployments, enterprise offices, schools, hotels, retail spaces, auditoriums, conference rooms, guest networks, and centrally managed UniFi wireless infrastructure
