Description

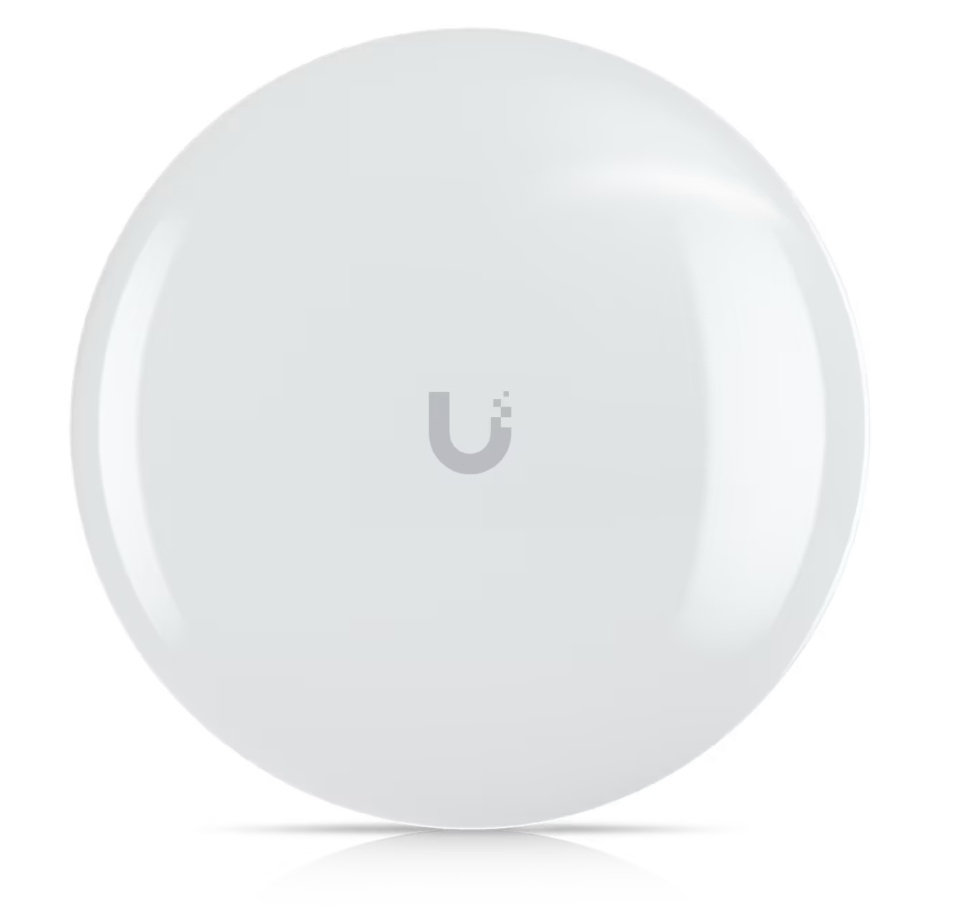

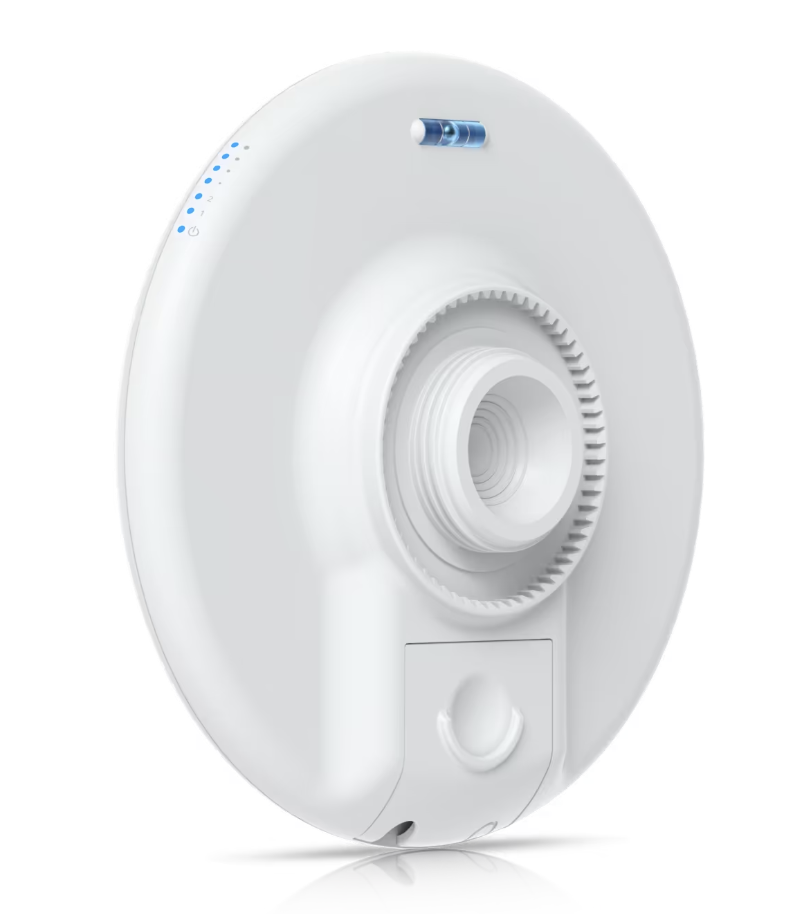

Ubiquiti UniFi Device Bridge Pro UDB-Pro
The Ubiquiti UniFi Device Bridge Pro UDB-Pro is a professional 5 GHz wireless bridge with PoE output designed to connect remote wired devices or extend network connectivity across long distances without running Ethernet cabling. Built for outdoor and long-range deployments, it can connect at 5+ km distances when paired with another compatible UDB Pro or UDB Pro Sector, while also supporting seamless uplink to UniFi WiFi. With 2 × Gigabit RJ45 ports, passive PoE output, 19 dBi antenna gain, IPX6 weatherproofing, and wall or pole mounting, the UDB-Pro is ideal for linking cameras, gates, remote buildings, warehouses, outdoor devices, and other Ethernet equipment into a UniFi-managed network.
Specifications:
- Model: Ubiquiti UniFi Device Bridge Pro UDB-Pro
- Device Type: Outdoor Wireless Bridge with PoE Output
- WiFi Standard: WiFi 5 / 802.11ac
- Wireless Band: 5 GHz
- Spatial Streams: 2-stream wireless design
- MIMO: 2 × 2 on 5 GHz
- Maximum Data Rate: Up to 867 Mbps with 80 MHz channel width
- Coverage / Range: Up to 5 km / 3.1 miles
- Antenna Gain: 19 dBi
- Maximum TX Power: 25 dBm
- Wireless Security: WPA2 AES

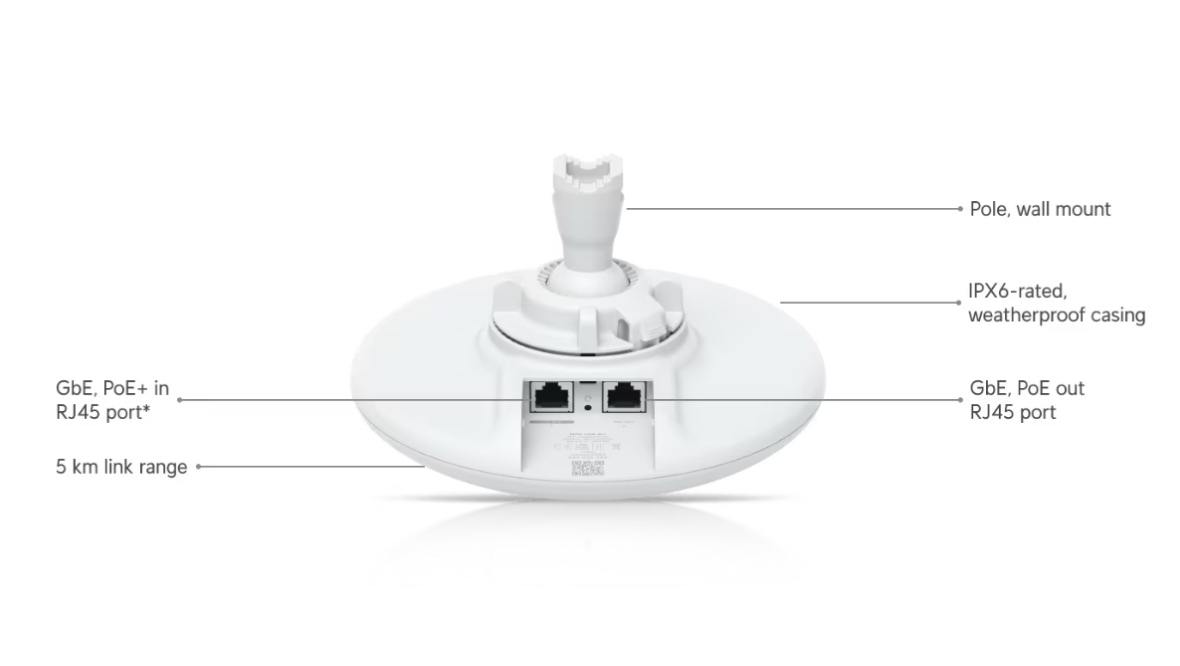

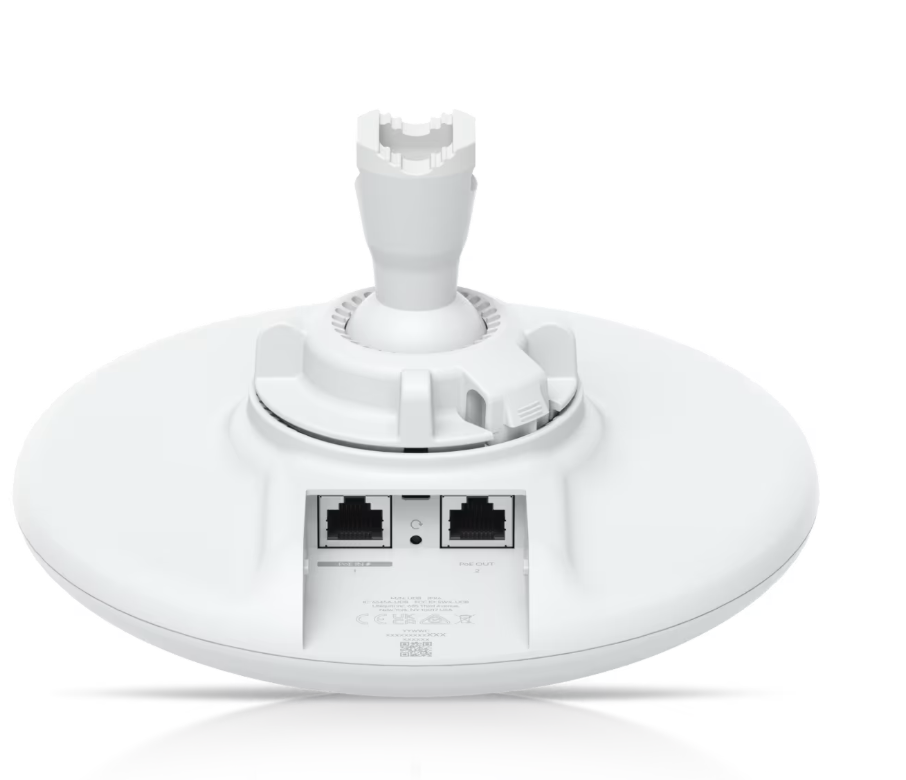

- Networking Interface: 2 × GbE RJ45 ports
- PoE Output: 1 × passive PoE output port
- Power Method: PoE input; PoE+ input required for PoE passthrough
- Power Supply: 48V, 0.32A PoE adapter included
- Maximum Power Consumption: 9W
- Supported Voltage Range: 42.5–57V DC
- Management: Managed via UniFi Console, Official UniFi Hosting, or Self-Hosted UniFi Network Server
- Channel Bandwidth: 20 / 40 / 80 MHz
- Weatherproofing: IPX6

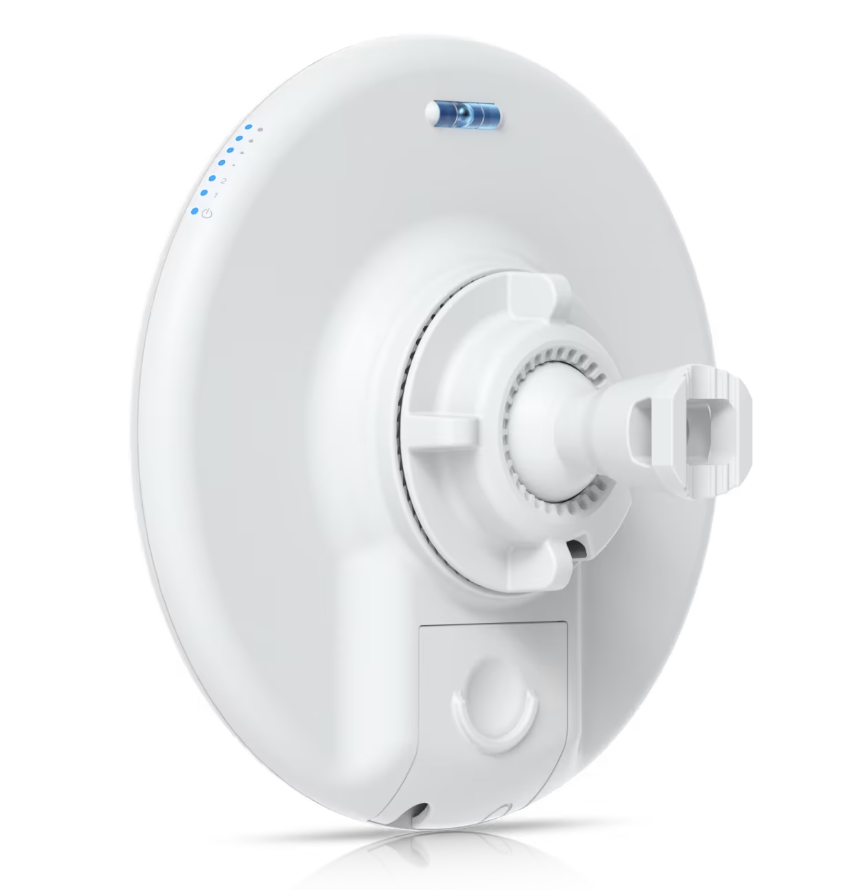

- Mounting: Wall or pole mount; pole mount included
- Pole Mount Diameter: 20–53.1 mm / 0.8–2.1 inches

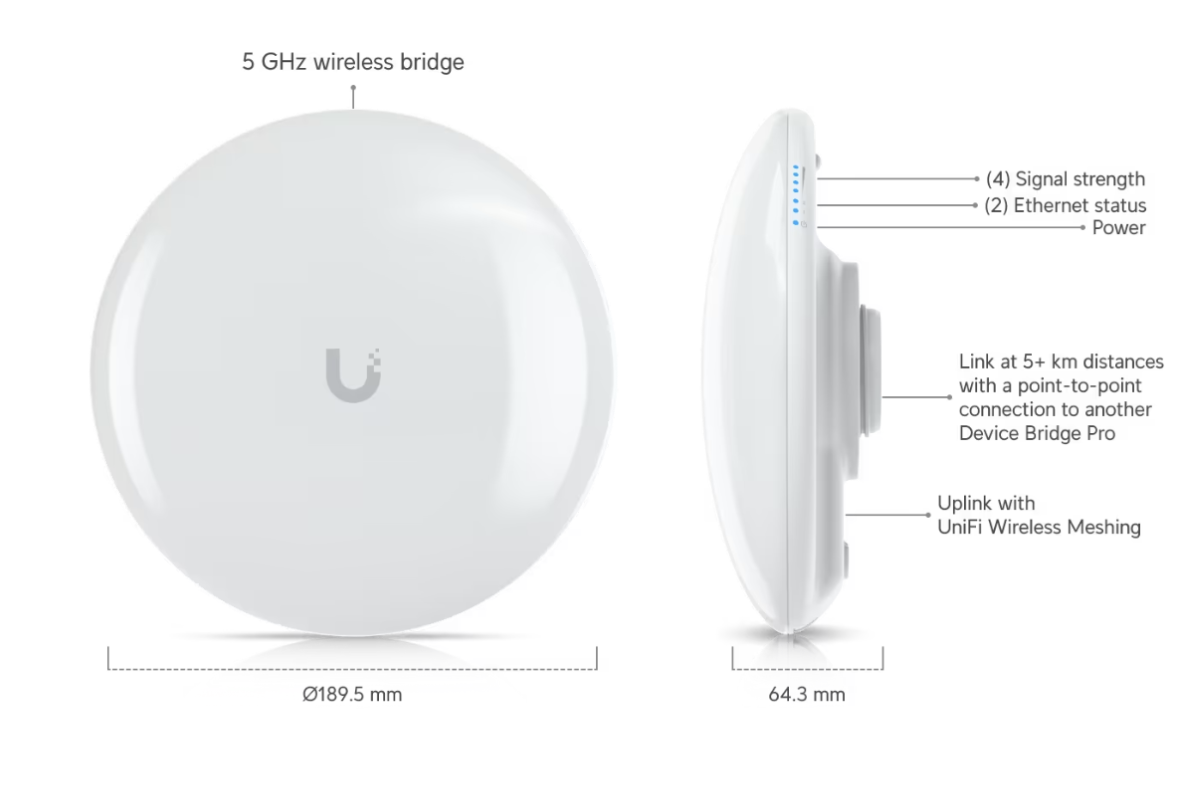

- Dimensions: Ø189.5 × 64.3 mm
- Weight: 431 g device only; 515 g with mount
- Enclosure Material: UV-resistant polycarbonate

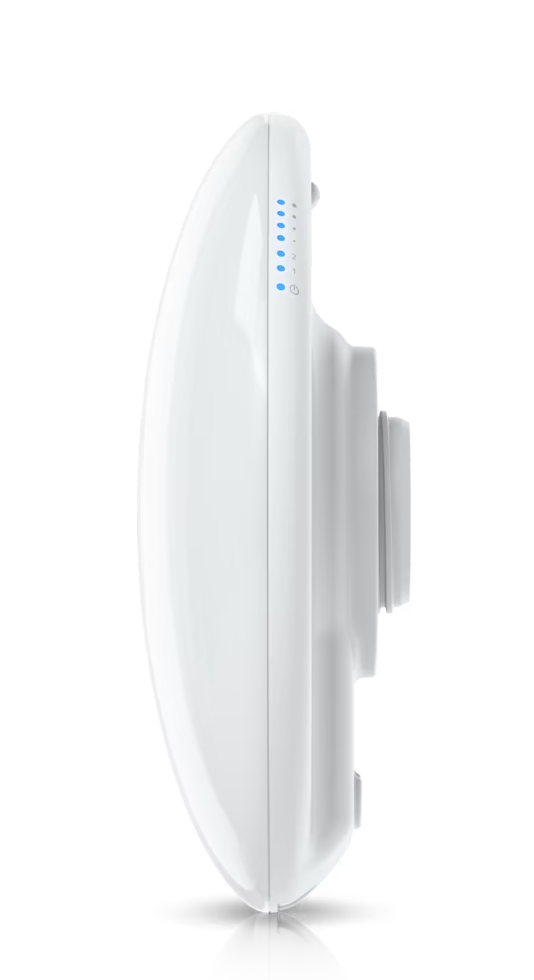

- LEDs: System, power, Ethernet status, PoE output status, and signal strength LEDs
- Button: Factory reset button
- Operating Temperature: -40°C to 60°C
- Operating Humidity: 5% to 95% non-condensing
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes
- Singapore Store Price: S$309.00, GST included
- UI Care Option: 5-year coverage available as an add-on at S$57.00/unit
- Use Case: Outdoor wireless bridging, remote IP cameras, gate access systems, warehouse links, building-to-building connectivity, parking areas, farms, remote equipment, and UniFi-managed long-range deployments
