Description

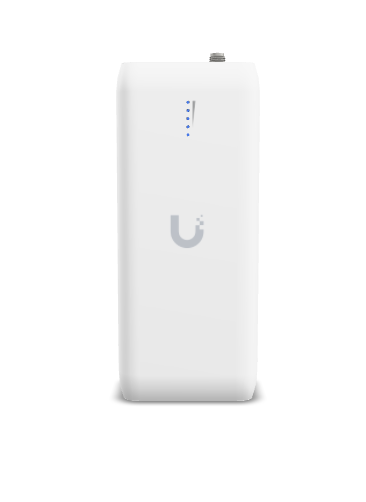

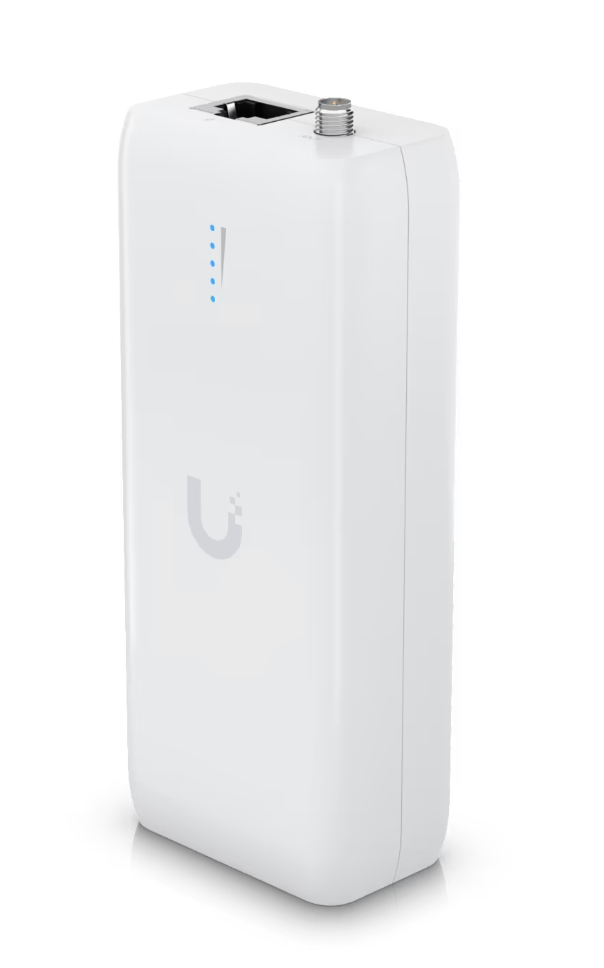

Ubiquiti UniFi Device Bridge UDB

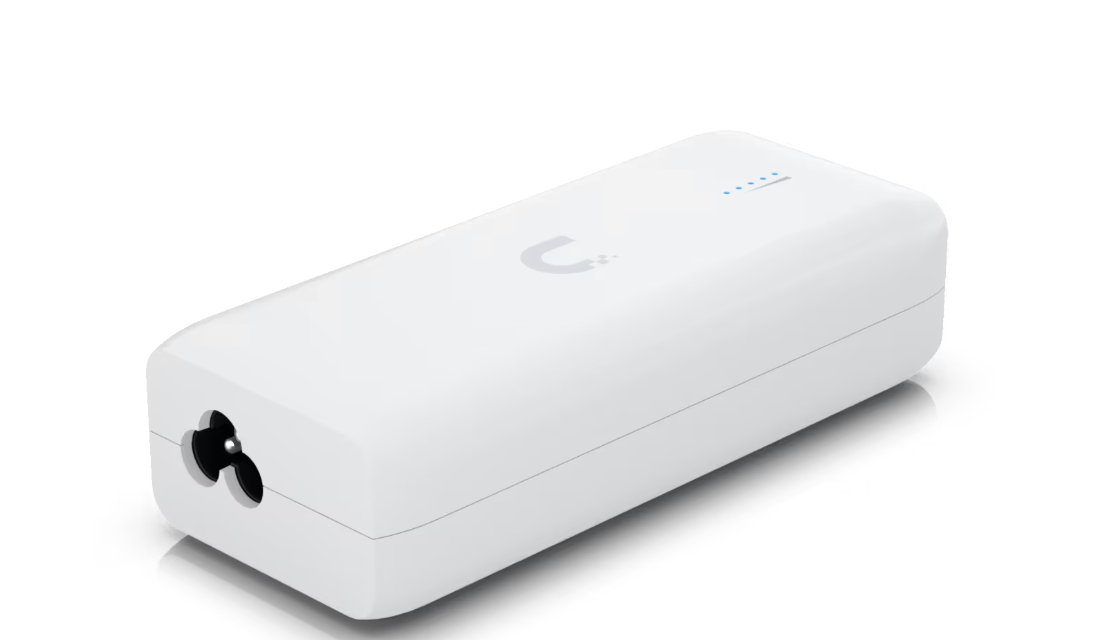

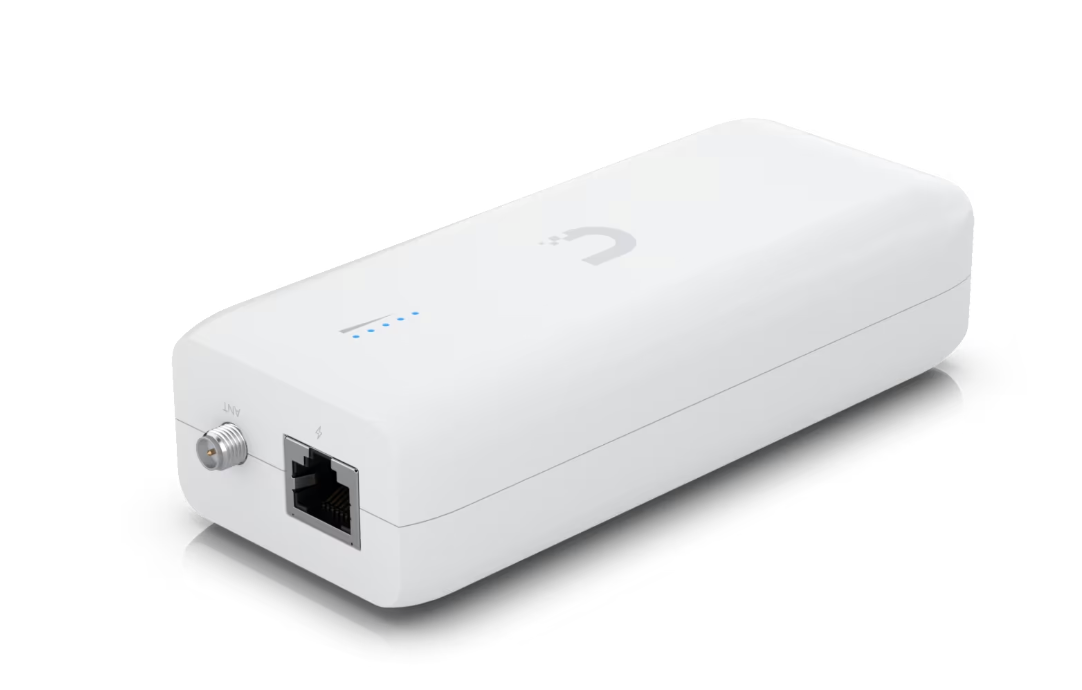

The Ubiquiti UniFi Device Bridge UDB is a compact plug-and-play wireless bridging adapter designed to connect wired network devices to a UniFi WiFi network without running additional Ethernet cabling. Built with integrated UniFi WiFi Auto-Link, WiFi 5 wireless bridging, and a Gigabit RJ45 port, it is ideal for connecting devices such as IP cameras, printers, access control devices, VoIP phones, media devices, or other Ethernet-only equipment in areas where cabling is difficult. With wall or table mounting, AC power input, signal strength LEDs, and UniFi-managed wireless connectivity, the UDB provides a simple and reliable way to extend wired device access over WiFi.
Specifications:
- Model: Ubiquiti UniFi Device Bridge UDB
- Device Type: Wireless Bridging PoE Adapter
- WiFi Standard: WiFi 5 / 802.11ac
- Wireless Band: 5 GHz
- Spatial Streams: 2-stream wireless design
- MIMO: 2 × 2 on 5 GHz
- Maximum Data Rate: Up to 866.7 Mbps with 80 MHz channel width
- Networking Interface: 1 × GbE RJ45 port
- Wireless Security: WPA2 AES

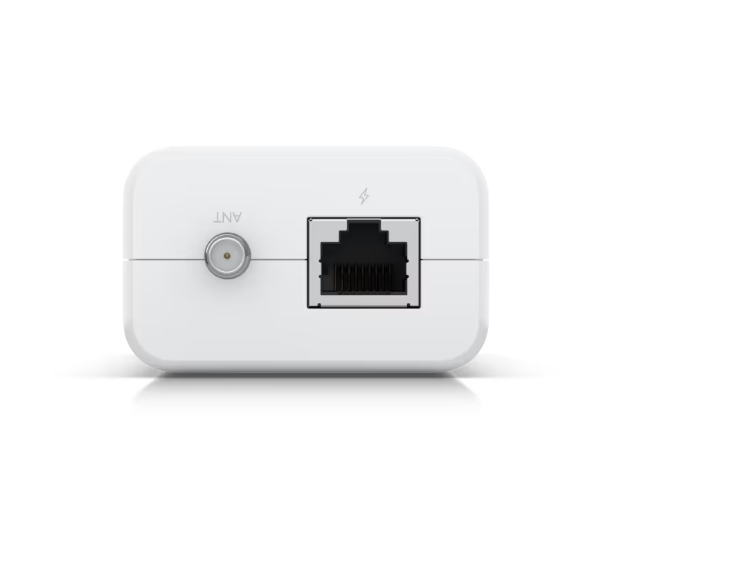

- Antenna: 1 × internal antenna and 1 × RP-SMA connector for external omni antenna
- Antenna Gain: Internal 5 dBi; external omni 4 dBi
- Maximum TX Power: 21 dBm on 5 GHz

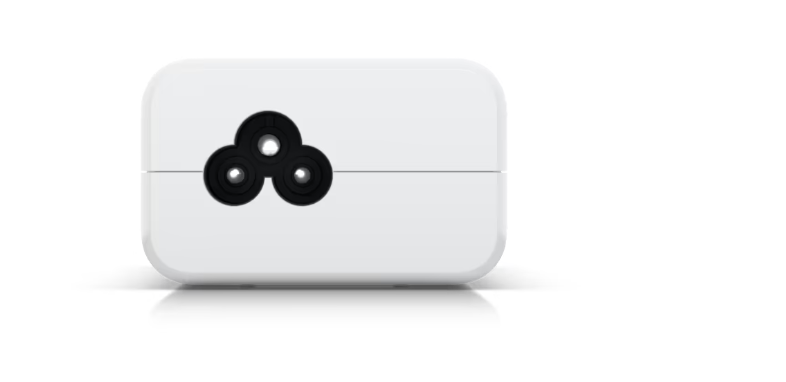

- Power Method: Universal AC input, 100–240V AC, 0.45A max, 50/60 Hz
- Maximum Power Consumption: 25W with AC input; 10W excluding PoE output

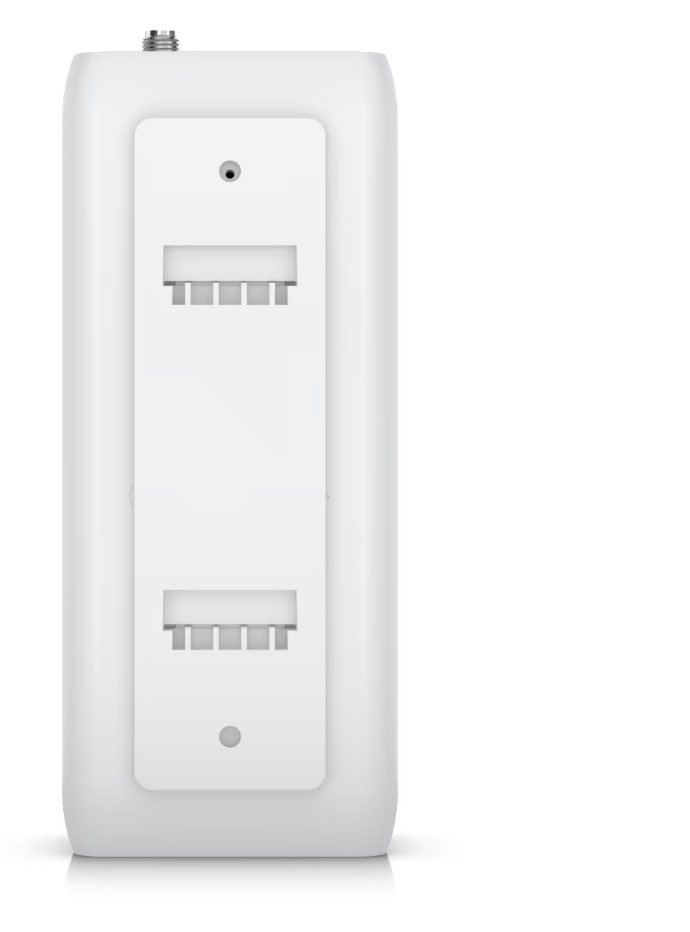

- Mounting: Wall or table mount
- Mount Included: Wall mount included
- Management: WiFi
- Channel Bandwidth: 20 / 40 / 80 MHz

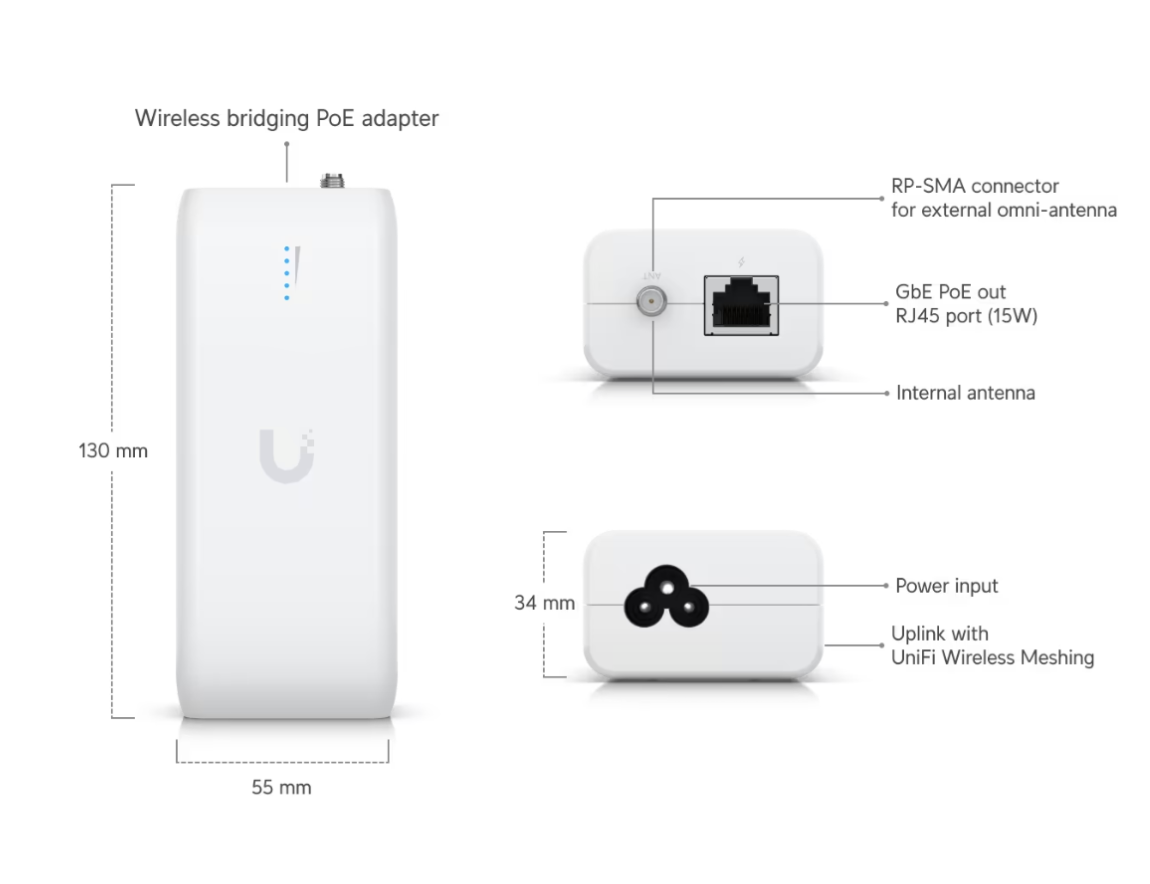

- Dimensions: 130 × 55 × 34 mm
- Weight: 200 g
- Enclosure Material: Polycarbonate
- LEDs: 4 × blue signal LEDs and 1 × white/blue indicator LED
- Button: Factory reset button
- Operating Temperature: -10°C to 40°C
- Operating Humidity: 5% to 95% non-condensing
- Certifications: CE, FCC, IC, Anatel
- NDAA Compliant: Yes
- Use Case: Wireless Ethernet bridging, connecting wired devices over WiFi, IP cameras, printers, access control devices, VoIP phones, media devices, retail networks, offices, and UniFi-managed deployments
