Description
Ubiquiti UniFi G5 PTZ UVC-G5-PTZ

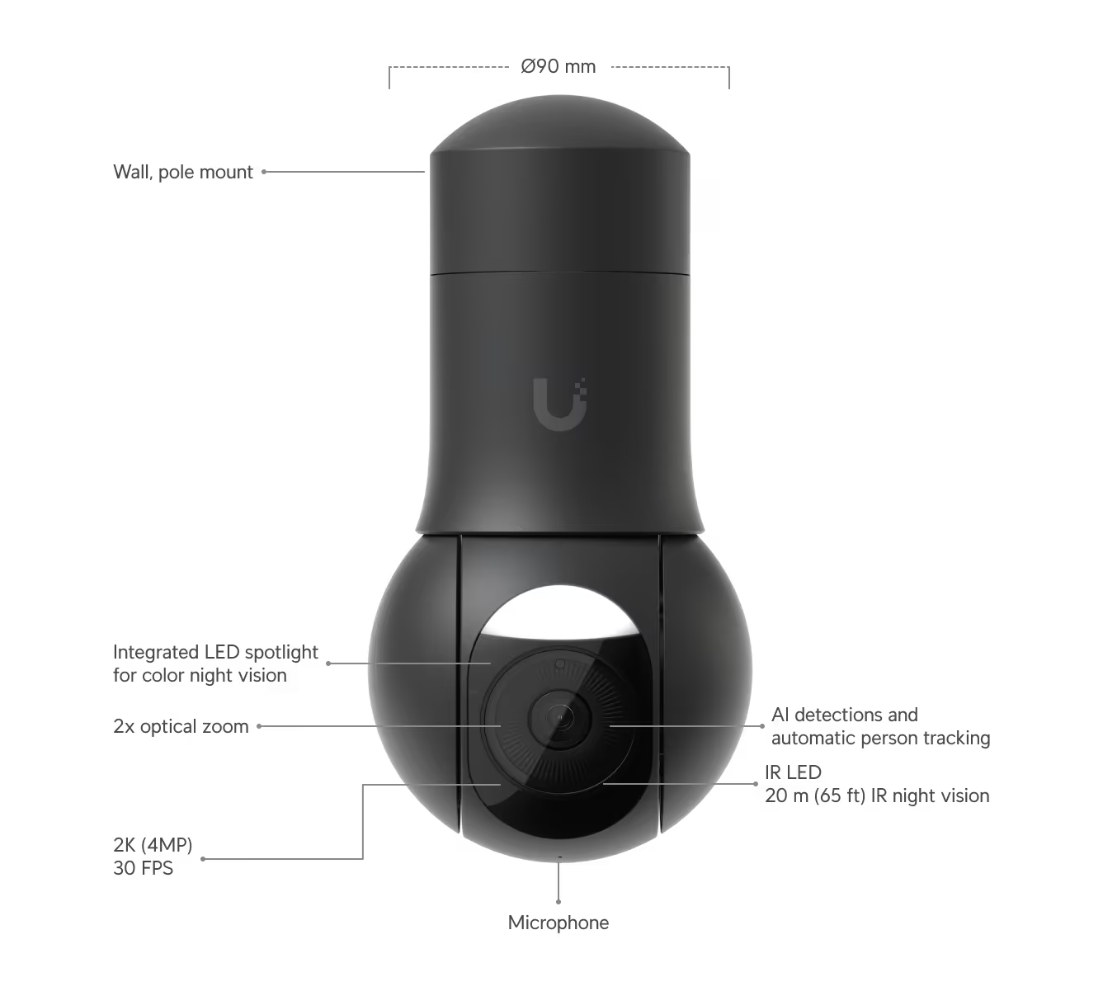

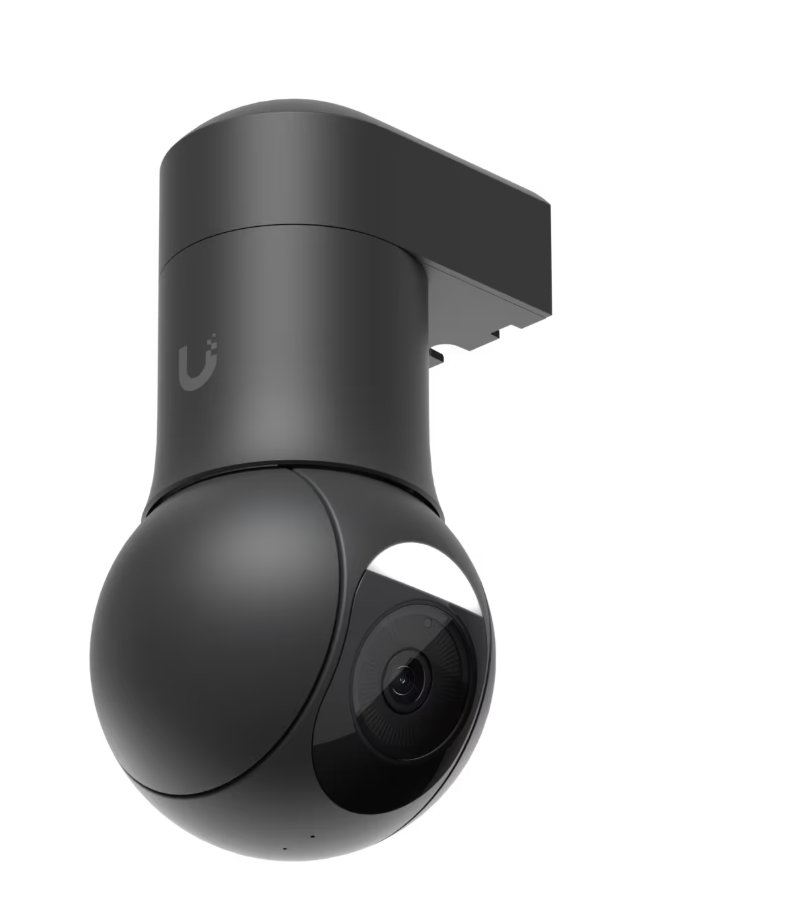

The Ubiquiti UniFi G5 PTZ UVC-G5-PTZ is a compact 2K all-weather pan-tilt-zoom security camera designed for homes, offices, retail stores, warehouses, carparks, entrances, and small-to-medium surveillance deployments. Built with ultra-low-latency PTZ control, 2× optical zoom, 350° pan range, 100° tilt range, and smart detection for people, vehicles, and animals, it provides flexible live monitoring and accurate event detection from a single camera position. With 20 m IR night vision, built-in microphone, IP66 weatherproofing, PoE+ power, and multiple mounting options, the G5 PTZ is ideal for UniFi Protect users who need a compact PTZ camera for both indoor and outdoor security coverage.
Specifications:
- Model: Ubiquiti UniFi G5 PTZ UVC-G5-PTZ
- Device Type: Compact All-Weather PTZ Security Camera
- Resolution: 2K / 4MP, 2688 × 1512
- Frame Rate: Up to 30 FPS
- Image Sensor: 5MP 1/2.7-inch CMOS sensor
- Lens: F 3.42–6.85 mm, f/1.85–f/2.4
- Zoom: 2× optical zoom
- Field of View:
- Wide: 99.7° horizontal, 51.9° vertical, 121° diagonal
- Tele: 45.5° horizontal, 25.4° vertical, 52.4° diagonal
- Pan-Tilt Range: 350° pan, 100° tilt
- Night Vision: Built-in IR and white LED illumination with IR cut filter
- IR Night Vision Range: Up to 20 m / 65 ft
- Smart Detections: People, vehicles, and animals
- Audio: Built-in microphone

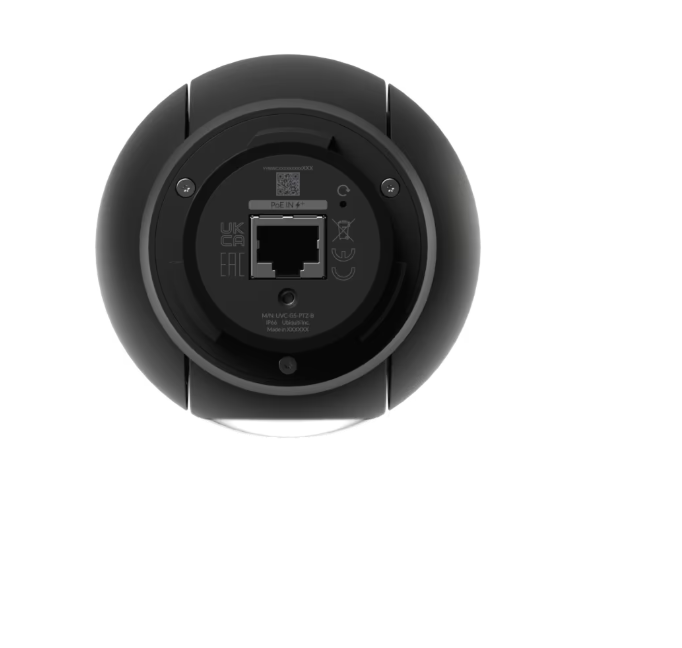

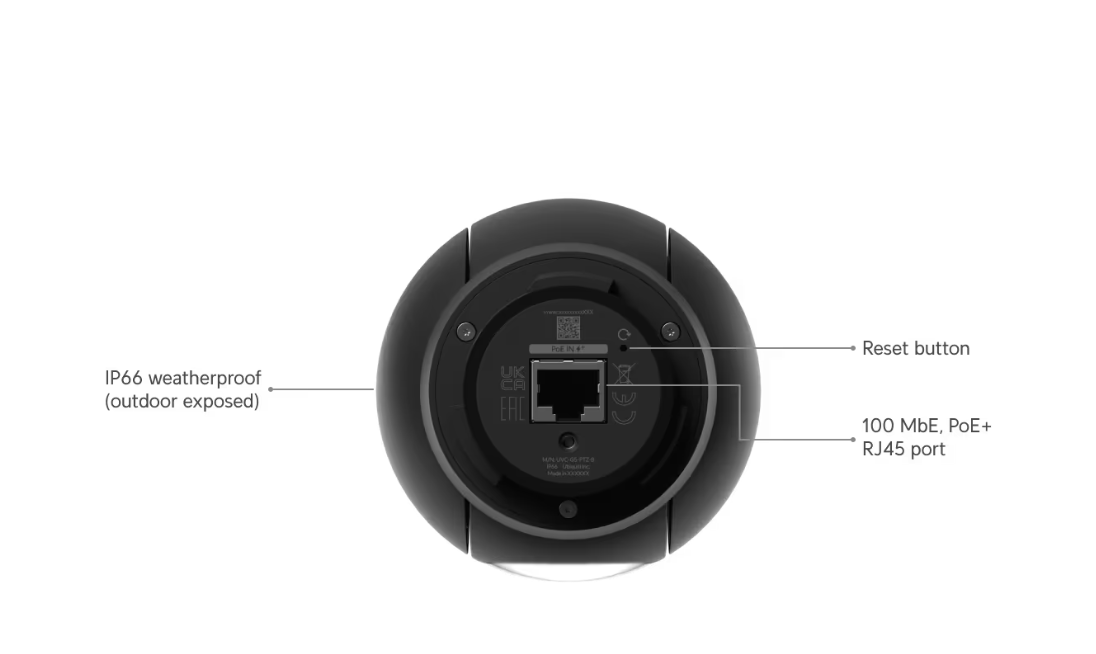

- Networking Interface: 1 × 10/100 MbE RJ45 port
- Power Method: PoE+
- Supported Voltage Range: 37–57V DC
- Maximum Power Consumption: 14W
- Weatherproofing: IP66
- Tamper Resistance: IK04
- Mounting: Wall mount and pole mount included
- Optional Mounting Accessories: Corner mount, conduit adapter, in-ceiling mount, surface mount, pendant mount, and gang box mounting plate
- Pole Mount Diameter: 1.5–2 inches / 38–50 mm

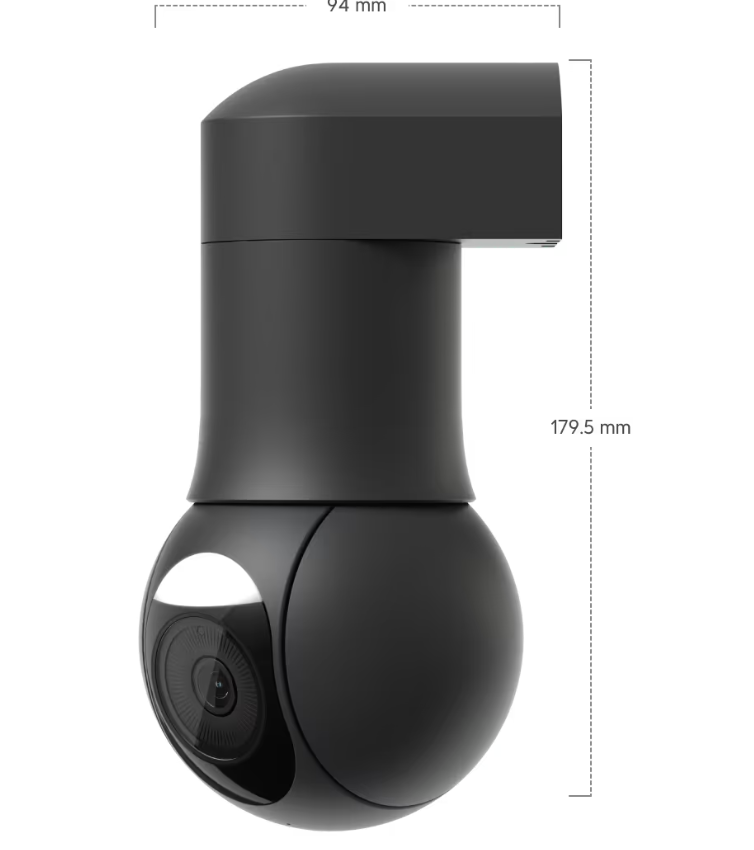

- Dimensions: Without mount: Ø90 × 152.5 mm; with mount: 90 × 94 × 179.5 mm
- Weight: 580 g without mount; 650 g with mount
- Enclosure Material: Aluminum alloy and polycarbonate
- Mount Material: Wall mount: polycarbonate; pole mount: aluminum alloy
- Button: Factory reset button
- Operating Temperature: -30°C to 45°C
- Operating Humidity: 0% to 90% non-condensing
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes
- Use Case: Home security, office monitoring, retail shops, entrances, carparks, warehouses, outdoor areas, perimeter monitoring, and UniFi Protect PTZ camera deployments
