Description
Ubiquiti UniFi Pro HD 24 PoE USW-Pro-HD-24-PoE
The Ubiquiti UniFi Pro HD 24 PoE USW-Pro-HD-24-PoE is a professional-grade Layer 3 Etherlighting™ managed PoE++ switch designed for high-performance office, enterprise, and advanced UniFi networks. Built with 22 × 2.5 GbE PoE++ RJ45 ports, 2 × 10 GbE PoE++ RJ45 ports, and 4 × 10G SFP+ uplink ports, it provides multi-gig wired connectivity and high-power PoE delivery for access points, IP cameras, VoIP phones, and other PoE-powered devices. With a large 600W PoE budget, UniFi Network management, Layer 3 switching features, redundant power support, and Etherlighting™ port identification, the USW-Pro-HD-24-PoE is ideal for scalable networks that need both high-speed switching and centralised PoE power management.
Specifications:
- Model: Ubiquiti UniFi Pro HD 24 PoE USW-Pro-HD-24-PoE
- Device Type: Professional Layer 3 Managed PoE++ Switch
- Ethernet Ports: 22 × 2.5 GbE RJ45 PoE++ ports
- 10G RJ45 Ports: 2 × 10 GbE RJ45 PoE++ ports
- SFP+ Ports: 4 × 10G SFP+ uplink ports
- PoE: PoE++ supported on RJ45 ports
- Total PoE Budget: 600W
- Power Supply: Internal 660W AC/DC power supply
- Power Consumption: 60W excluding PoE output; 660W including PoE output
- Switching Features: Layer 3 switching, VLAN support, inter-VLAN routing, static routing, ACL-based traffic control, and network segmentation
- Layer 2 Features: STP/RSTP, port isolation, storm control, Voice VLAN, port mirroring, LACP aggregation, jumbo frames, DHCP snooping/guarding, LLDP-MED, and 802.1X control

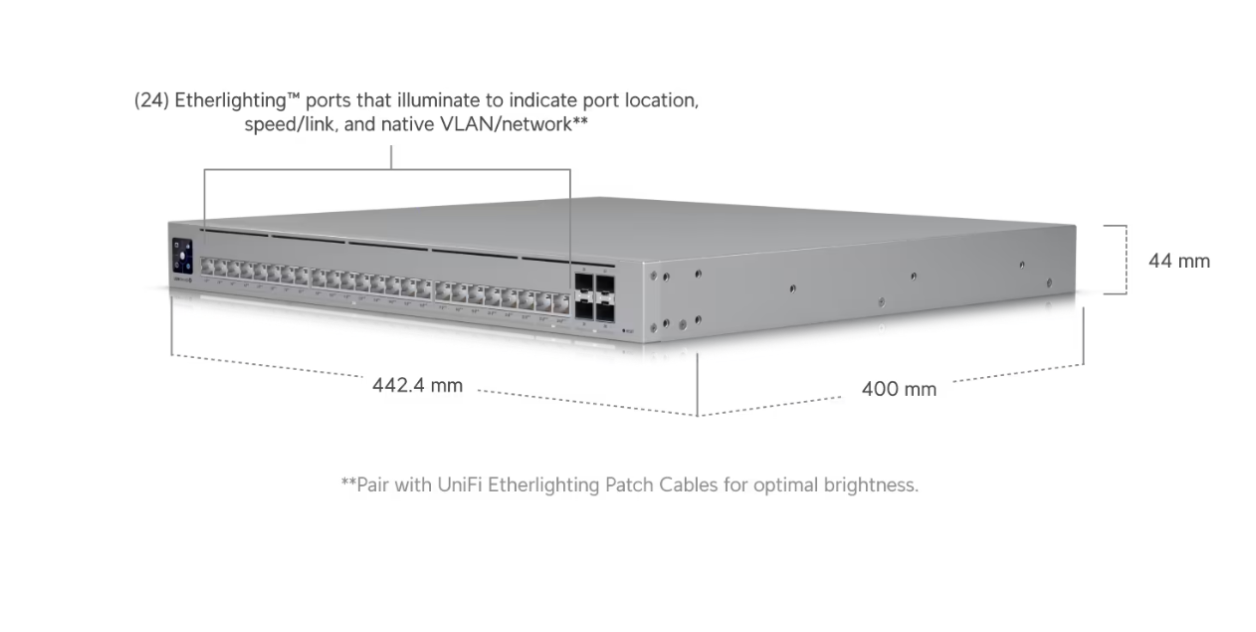

- Etherlighting™: Ethernet and SFP+ port lighting for locating ports, link speed, and VLAN/network identification
- Management: UniFi Network application via Ethernet
- Display: 1.3-inch touchscreen
- Power Method: Universal AC input, 100–240V AC, 50/60 Hz
- Redundant Power: USP RPS DC input support
- Enclosure Material: SGCC steel
- Mounting: Rack-mountable
- Supported Rack Depth: 600–1200 mm
- Weight: 6.2 kg without mounting brackets; 6.3 kg with mounting brackets
- Operating Temperature: -5°C to 40°C
- Operating Humidity: 10% to 90% non-condensing
- UniFi Requirement: UniFi Network version 9.0.114 or later
- Use Case: Enterprise networks, WiFi 6/WiFi 7 access point deployments, IP camera systems, VoIP phones, multi-gig workstation networks, VLAN segmentation, network aggregation, and UniFi-managed PoE infrastructure
