Description
Ubiquiti UniFi Pro HD 24 USW-Pro-HD-24

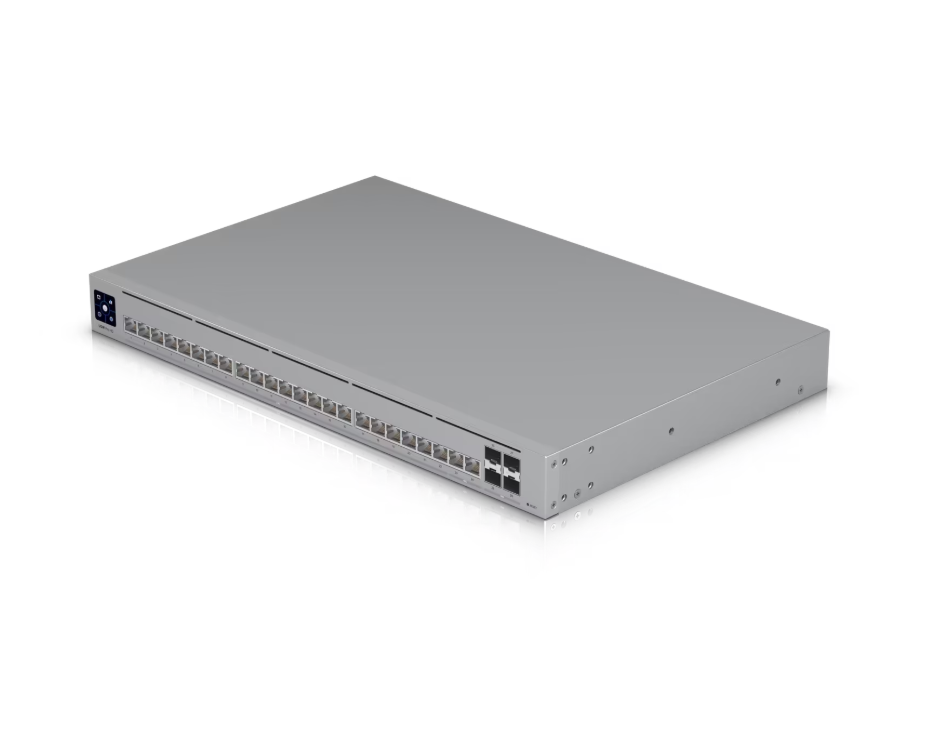

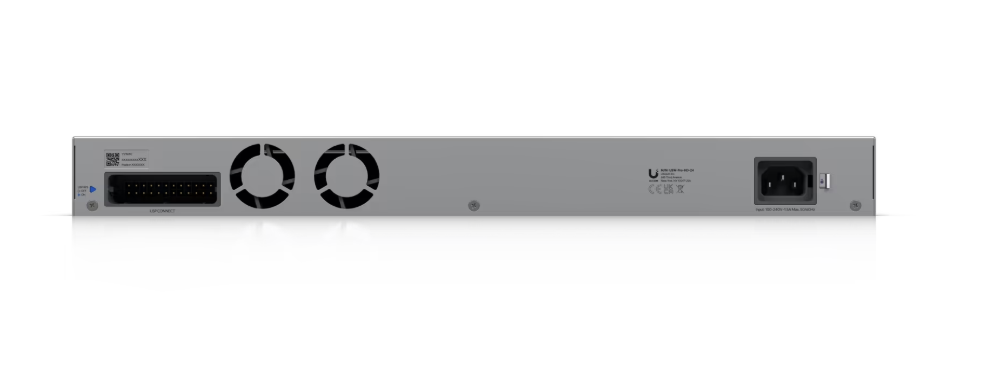

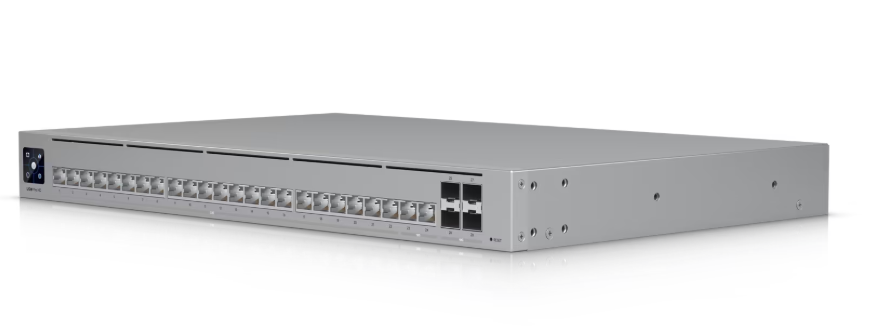

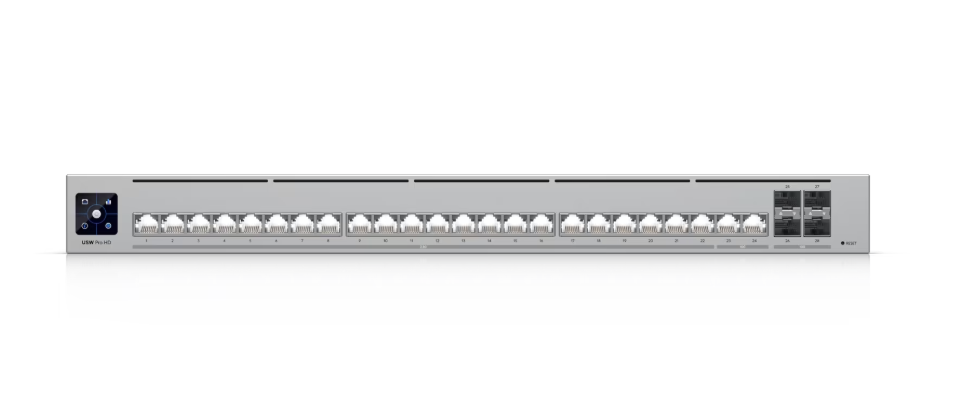

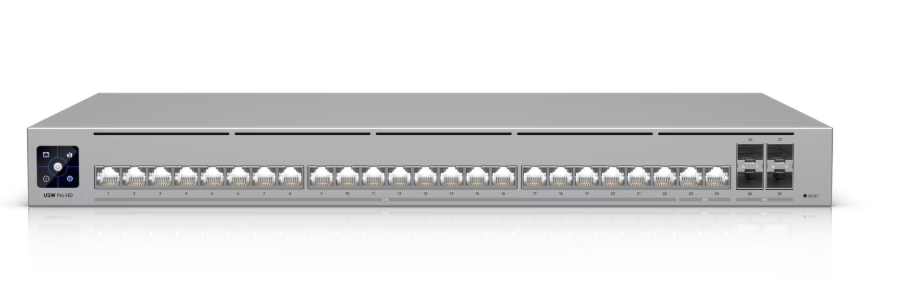

The Ubiquiti UniFi Pro HD 24 USW-Pro-HD-24 is a professional-grade Layer 3 Etherlighting™ managed switch designed for high-performance office, enterprise, and advanced home networks. Built with 22 × 2.5 GbE RJ45 ports, 2 × 10 GbE RJ45 ports, and 4 × 10G SFP+ uplink ports, it provides fast multi-gig wired connectivity for workstations, servers, NAS devices, access points, and network backbone links. With UniFi Network management, Layer 3 switching features, a 1.3-inch touchscreen, redundant power support, and Etherlighting™ port identification, the USW-Pro-HD-24 is ideal for users who need reliable, scalable, and centrally managed switching without PoE output.
Specifications:
- Model: Ubiquiti UniFi Pro HD 24 USW-Pro-HD-24
- Device Type: Professional Layer 3 Managed Switch

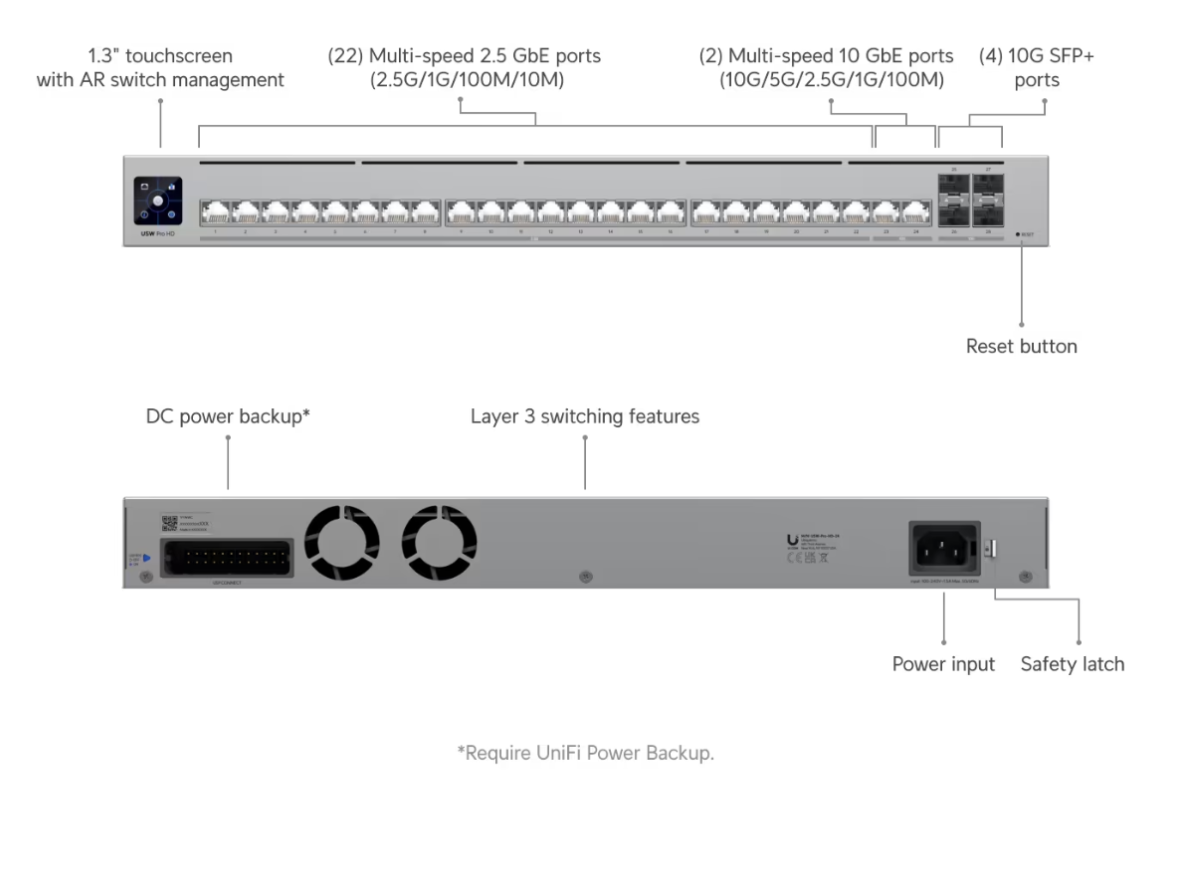

- Ethernet Ports: 22 × 2.5 GbE RJ45 ports
- 10G RJ45 Ports: 2 × 10 GbE RJ45 ports
- SFP+ Ports: 4 × 10G SFP+ uplink ports
- PoE: Not supported on this model
- Switching Features: Layer 3 switching, inter-VLAN routing, static routing, DHCP relay, ACL-based network isolation

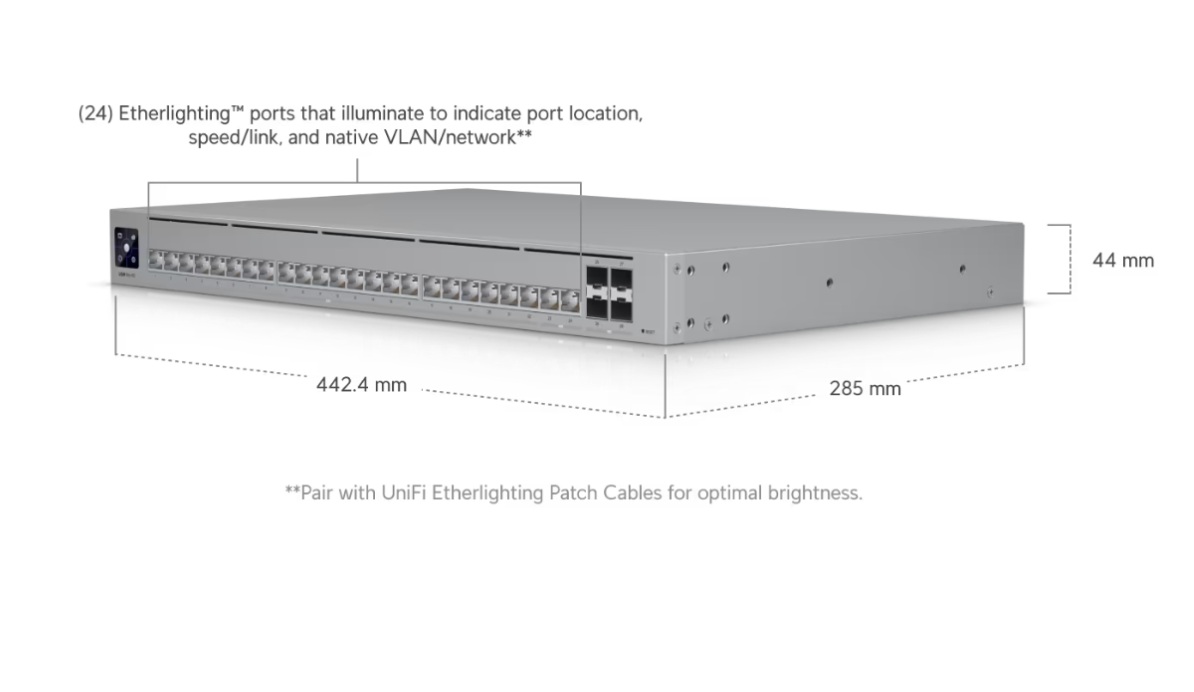

- Etherlighting™: Ethernet and SFP+ port lighting for locating ports, link speed, and VLAN/network identification
- Management: UniFi Network application via Ethernet
- Display: 1.3-inch touchscreen
- Power Method: Internal AC power supply, 100–240V AC, 50/60 Hz
- Redundant Power: USP RPS DC input support
- Maximum Power Consumption: 60W
- Heat Dissipation: 102 BTU/hr
- Enclosure Material: SGCC steel
- Mounting: Rack-mountable
- Supported Rack Depth: 400–1200 mm
- Weight: 4.2 kg without mounting brackets; 4.3 kg with mounting brackets
- Operating Temperature: -5°C to 40°C
- Operating Humidity: 10% to 90% non-condensing
- UniFi Requirement: UniFi Network version 9.0.114 or later

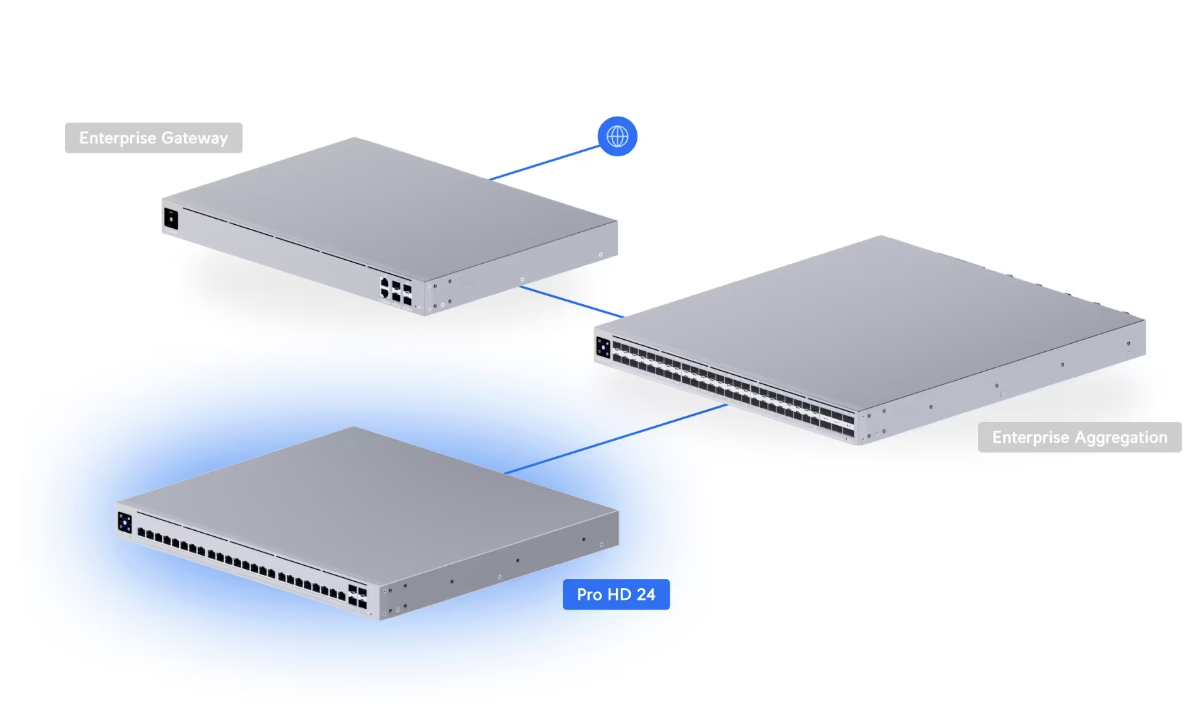

- Use Case: Enterprise networks, multi-gig office switching, NAS/server connectivity, high-speed workstation networks, network aggregation, VLAN segmentation, and UniFi-managed infrastructure
