Description

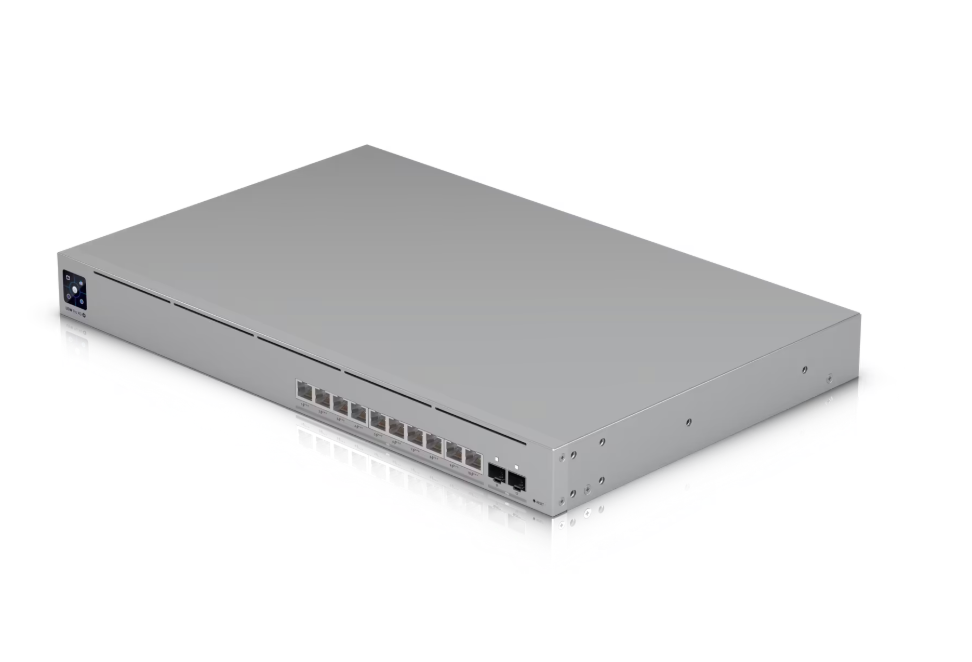

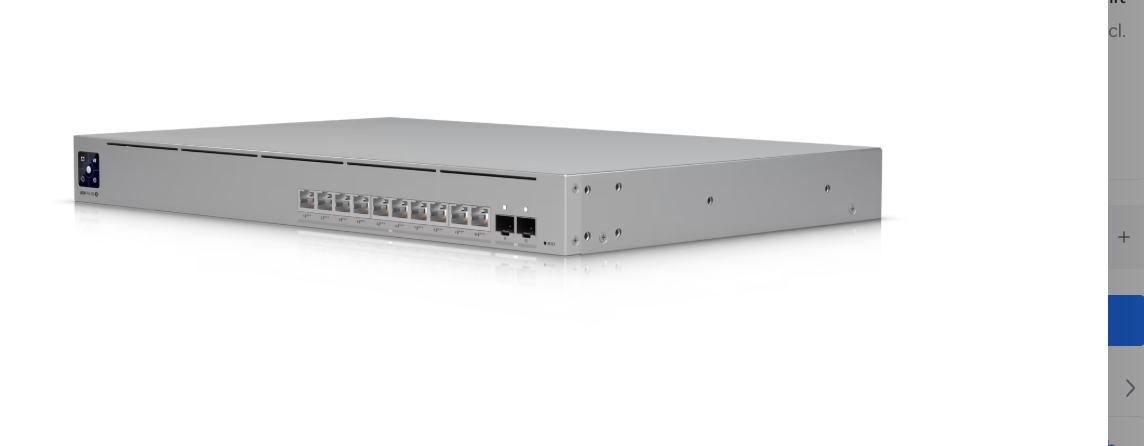

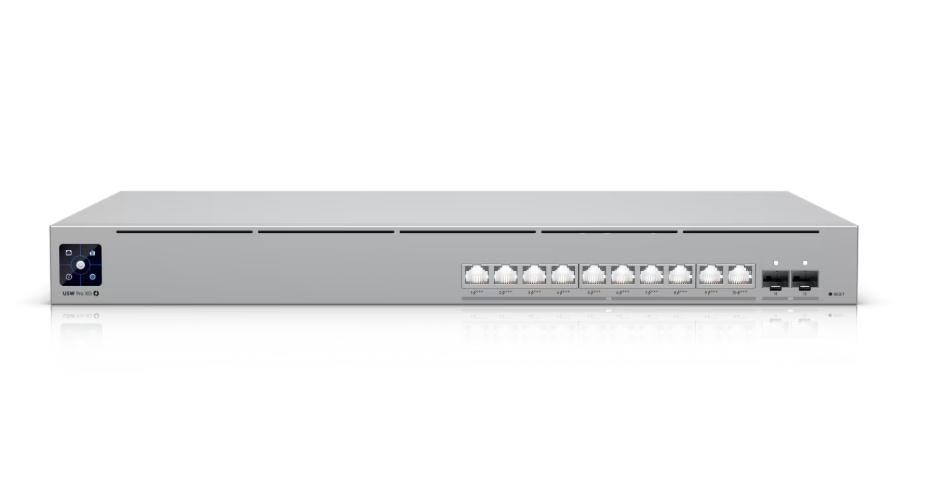

Ubiquiti UniFi Pro XG 10 PoE USW-Pro-XG-10-PoE
The Ubiquiti UniFi Pro XG 10 PoE USW-Pro-XG-10-PoE is a professional-grade Layer 3 Etherlighting™ 10G PoE+++ switch designed for high-performance UniFi networks, enterprise offices, creative studios, and advanced home/business setups. Built with 10 × 10 GbE RJ45 ports and 2 × 10G SFP+ uplink ports, it delivers fast multi-gigabit switching for servers, NAS devices, high-end workstations, WiFi access points, and network backbone connections. With PoE+++ support, UniFi Network management, a 1.3-inch touchscreen, redundant power support, and Etherlighting™ port identification, the USW-Pro-XG-10-PoE is ideal for networks that require high-speed 10G connectivity and powerful centralised PoE delivery in a compact 1U rack-mount form factor.
Specifications:
- Model: Ubiquiti UniFi Pro XG 10 PoE USW-Pro-XG-10-PoE
- Device Type: Professional Layer 3 Managed 10G PoE+++ Switch
- Form Factor: 1U rack-mount switch

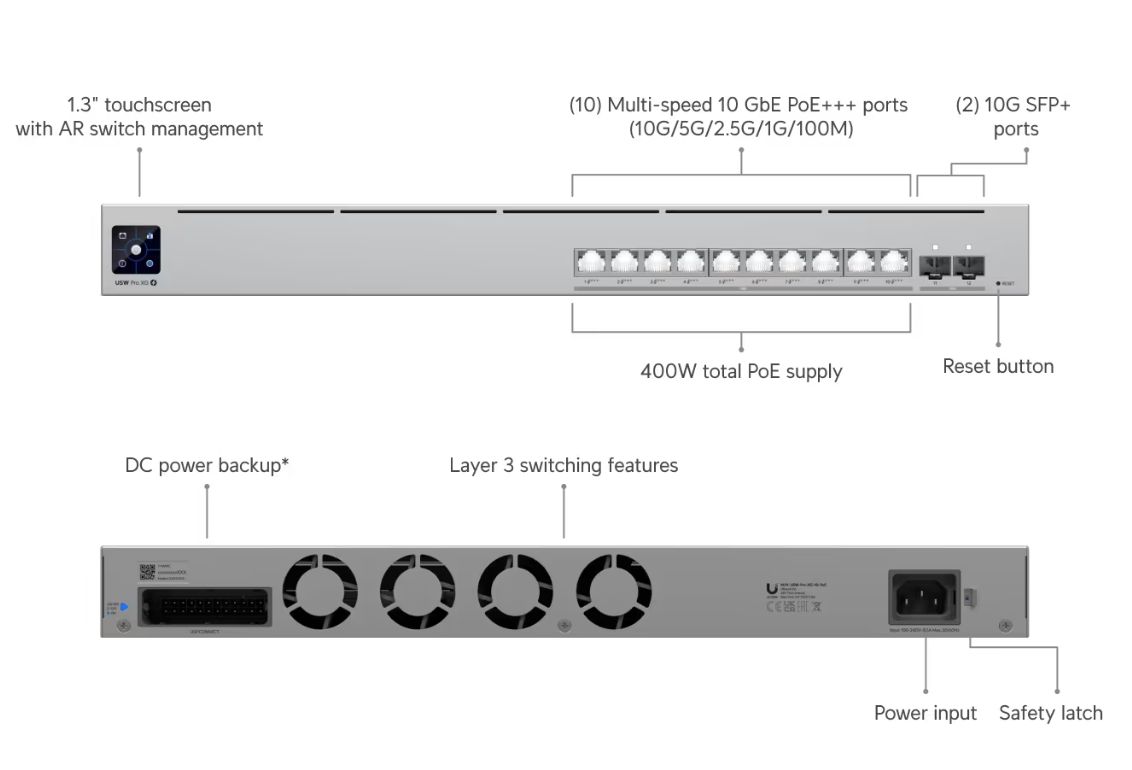

- Ethernet Ports: 10 × 10 GbE RJ45 ports
- SFP+ Ports: 2 × 10G SFP+ uplink ports
- PoE: PoE+++ supported
- Power Consumption: 65W excluding PoE output; 520W including PoE output
- Power Supply: Internal 550W AC/DC power supply
- Power Method: Universal AC input, 100–240V AC, 50/60 Hz
- Redundant Power: USP RPS DC input support
- Switching Features: Layer 3 switching, VLAN support, network segmentation, routing, and UniFi-managed traffic control
- Etherlighting™: Ethernet and SFP+ port lighting for locating ports, link speed, and network/VLAN identification
- Management: UniFi Network application via Ethernet
- Display: 1.3-inch touchscreen
- Enclosure Material: SGCC steel
- Mounting: Rack-mountable
- Supported Rack Depth: 400–1200 mm
- Weight: 4.6 kg without mounting brackets; 4.7 kg with mounting brackets
- Operating Temperature: -5°C to 40°C
- Operating Humidity: 10% to 90% non-condensing
- ESD Protection: Air ±30kV, contact ±30kV
- Certifications: CE, FCC, IC, Anatel
- UniFi Requirement: UniFi Network version 9.1.120 or later
- Use Case: 10G office networks, WiFi 7 access point deployments, NAS/server connectivity, high-speed workstation networks, IP camera systems, VLAN segmentation, network aggregation, and UniFi-managed PoE infrastructure
