Description
Ubiquiti UniFi Pro XG 24 PoE USW-Pro-XG-24-PoE
The Ubiquiti UniFi Pro XG 24 PoE USW-Pro-XG-24-PoE is a professional-grade Layer 3 Etherlighting™ PoE+++ switch designed for enterprise networks, high-performance offices, WiFi 7 deployments, camera systems, and advanced UniFi infrastructures. Built with 16 × 10 GbE RJ45 ports, 8 × 2.5 GbE RJ45 ports, and 2 × 25G SFP28 uplink ports, it provides powerful multi-gigabit switching for access points, servers, NAS devices, IP cameras, workstations, and network backbone connections. With PoE+++ support, an 870W internal power supply, UniFi Network management, a 1.3-inch touchscreen, redundant power support, and Etherlighting™ port identification, the USW-Pro-XG-24-PoE is ideal for scalable networks that require both high-speed connectivity and centralised PoE power delivery.
Specifications:
- Model: Ubiquiti UniFi Pro XG 24 PoE USW-Pro-XG-24-PoE
- Device Type: Professional Layer 3 Managed PoE+++ Switch
- Form Factor: Rack-mount switch
- Ethernet Ports: 24 × RJ45 ports total
- 10G RJ45 Ports: 16 × 10 GbE RJ45 ports
- 2.5G RJ45 Ports: 8 × 2.5 GbE RJ45 ports
- SFP28 Ports: 2 × 25G SFP28 uplink ports
- PoE: PoE+++ supported on RJ45 ports
- Power Consumption: 150W excluding PoE output; 870W including PoE output
- Power Supply: Internal 870W AC/DC power supply
- Power Method: Universal AC input, 100–240V AC, 50/60 Hz
- Redundant Power: USP RPS DC input support
- Switching Features: Layer 3 switching, VLAN support, network segmentation, routing, and UniFi-managed traffic control
- Etherlighting™: Ethernet and SFP28 port lighting for locating ports, link speed, and network/VLAN identification
- Management: UniFi Network application via Ethernet
- Display: 1.3-inch touchscreen
- Enclosure Material: SGCC steel

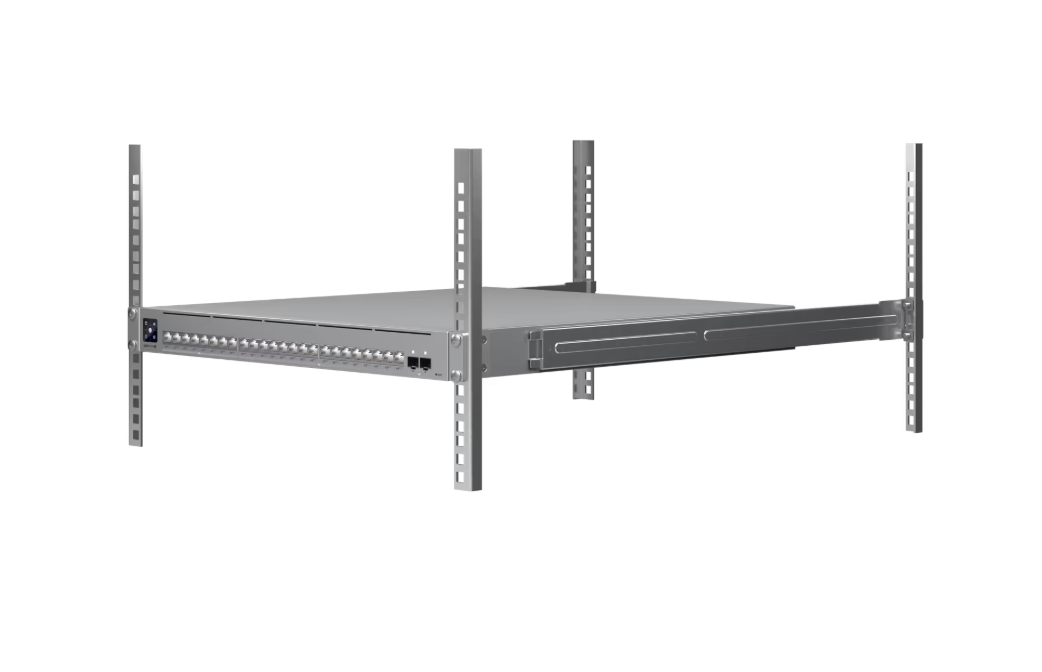

- Mounting: 19-inch four-post rack mounting
- Supported Rack Depth: 600–1,066 mm
- Weight: 7.9 kg without mounting brackets; 8.0 kg with mounting brackets
- Operating Temperature: -5°C to 40°C
- Operating Humidity: 10% to 90% non-condensing
- ESD Protection: Air ±30kV, contact ±20kV
- Certifications: CE, FCC, IC, Anatel
- UniFi Requirement: UniFi Network version 9.1.120 or later
- Use Case: Enterprise switching, WiFi 7 access point deployments, IP camera systems, high-speed NAS/server connectivity, 10G workstation networks, VLAN segmentation, network aggregation, and UniFi-managed PoE infrastructure
