Description

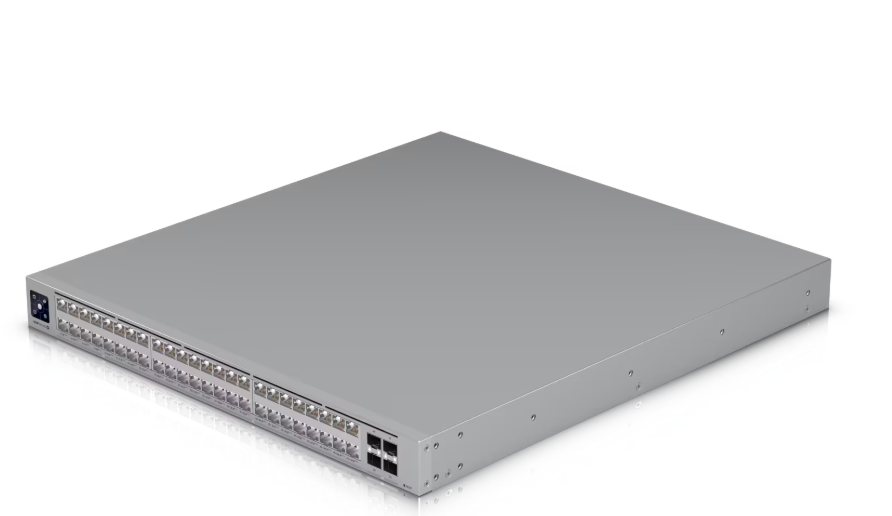

Ubiquiti UniFi Pro XG 48 PoE USW-Pro-XG-48-PoE
The Ubiquiti UniFi Pro XG 48 PoE USW-Pro-XG-48-PoE is a high-capacity professional Layer 3 Etherlighting™ PoE+++ switch designed for enterprise networks, large offices, WiFi 7 deployments, surveillance systems, AV networks, and high-performance UniFi infrastructures. Built with 32 × 10 GbE RJ45 PoE+++ ports, 16 × 2.5 GbE RJ45 PoE+++ ports, and 4 × 25G SFP28 uplink ports, it delivers powerful multi-gigabit switching for access points, IP cameras, VoIP devices, servers, NAS systems, high-speed workstations, and network backbone connections. With a large PoE budget, UniFi Network management, Layer 3 switching, redundant power support, and Etherlighting™ port identification, the USW-Pro-XG-48-PoE is ideal for scalable networks that need maximum wired performance and centralised PoE power delivery.
Specifications:
- Model: Ubiquiti UniFi Pro XG 48 PoE USW-Pro-XG-48-PoE
- Device Type: Professional Layer 3 Managed PoE+++ Switch
- Form Factor: 1U rack-mount switch
- Ethernet Ports: 48 × RJ45 PoE+++ ports total
- 10G RJ45 Ports: 32 × 10 GbE RJ45 ports
- 2.5G RJ45 Ports: 16 × 2.5 GbE RJ45 ports
- SFP28 Ports: 4 × 25G SFP28 uplink ports
- PoE: PoE+++ supported on RJ45 ports
- Total PoE Availability: 1080W at 200–240V AC; 972W at 100–120V AC
- Power Consumption: 200W excluding PoE output; up to 1,280W including PoE output at 200–240V AC
- Power Supply: Internal 1,350W AC/DC power supply
- Power Method: Universal AC input, 100–240V AC, 50/60 Hz
- Redundant Power: USP RPS DC input support
- Switching Capacity: 920 Gbps
- Total Non-Blocking Throughput: 460 Gbps
- Forwarding Rate: 684 Mpps
- Switching Features: Layer 3 switching, inter-VLAN routing, static routing, DHCP server, DHCP relay, VLAN support, ACL-based traffic control, and network segmentation
- Layer 2 Features: LACP port aggregation, STP/RSTP, QoS, IGMP snooping, advanced IGMP configuration, 802.1X control, MAC-based ACLs, device isolation, DHCP snooping/guarding, egress rate limiting, and flow control
- Pro AV Profiles: Supports Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron profiles
- Etherlighting™: Ethernet and SFP28 port lighting for locating ports, link speed, and network/VLAN identification
- Management: UniFi Network application via Ethernet
- Display: 1.3-inch touchscreen
- Enclosure Material: SGCC steel
- Mounting: 19-inch four-post rack mounting
- Supported Rack Depth: 600–1,066 mm
- Weight: 8.7 kg without mounting brackets; 8.8 kg with mounting brackets
- Operating Temperature: -5°C to 40°C
- Operating Humidity: 10% to 90% non-condensing
- ESD Protection: Air ±30kV, contact ±20kV
- Certifications: CE, FCC, IC, Anatel
- UniFi Requirement: UniFi Network version 9.1.120 or later
- Use Case: Enterprise switching, WiFi 7 access point deployments, large IP camera systems, AV-over-IP networks, high-speed NAS/server connectivity, 10G workstation networks, VLAN segmentation, network aggregation, and UniFi-managed PoE infrastructure
