Description

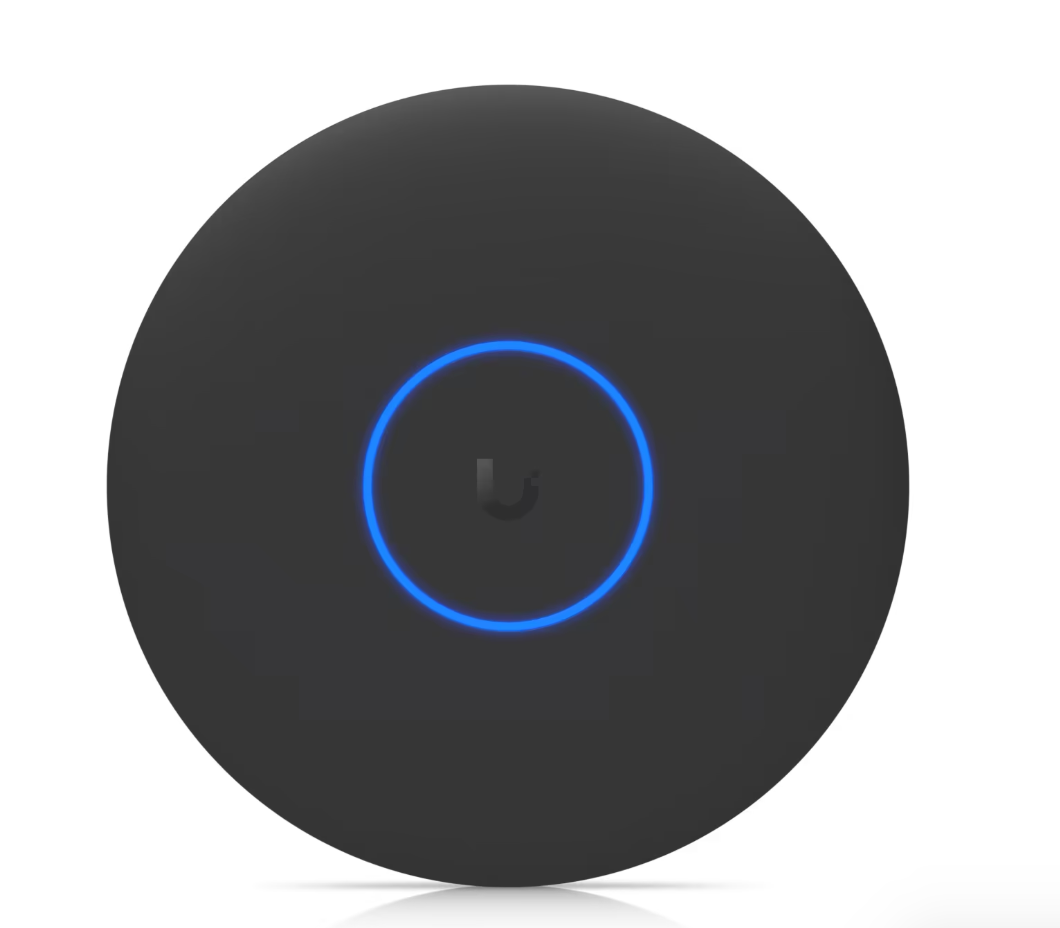

Ubiquiti UniFi U7 Pro XGS U7-Pro-XGS

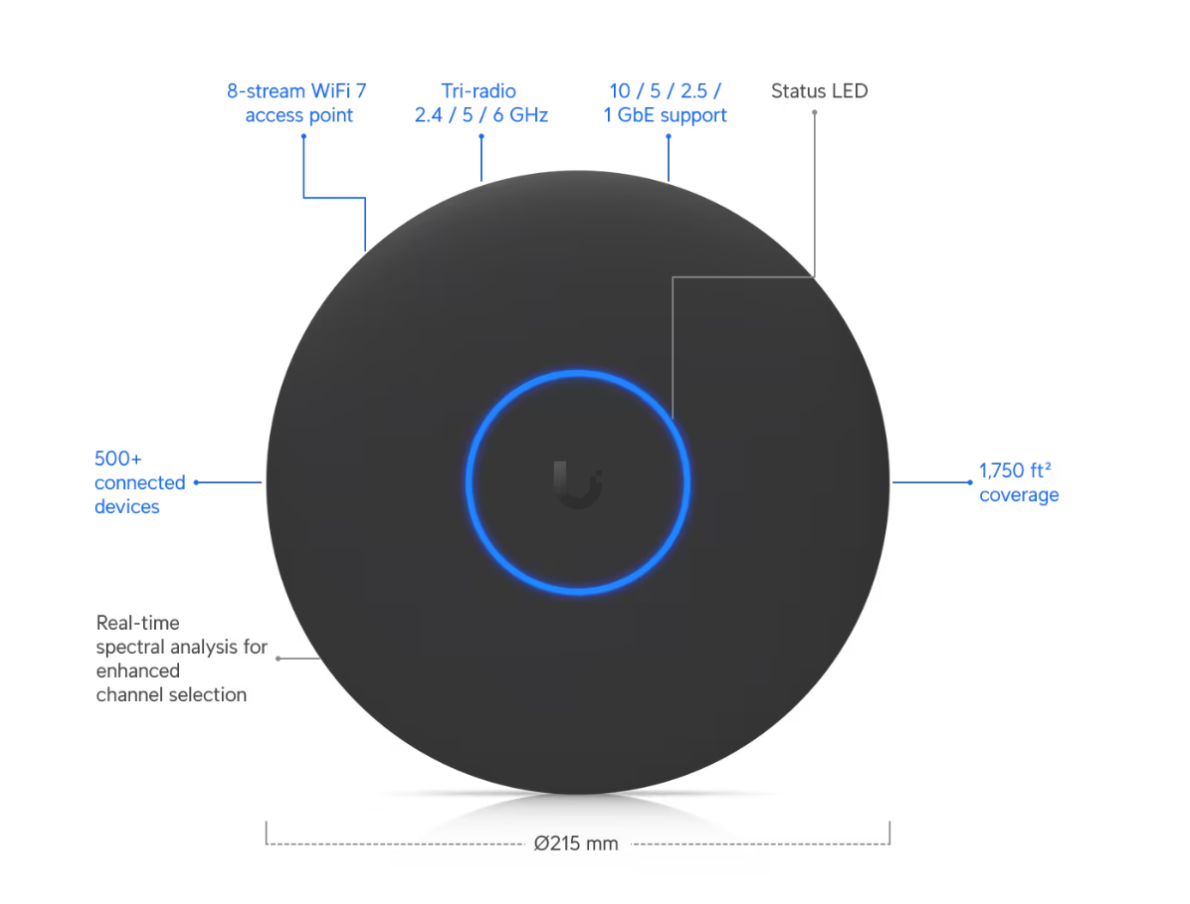

The Ubiquiti UniFi U7 Pro XGS U7-Pro-XGS is a flagship ceiling-mounted WiFi 7 access point designed for high-performance homes, offices, retail spaces, and enterprise UniFi networks that require faster wireless capacity, stronger client handling, and advanced radio monitoring. Built with an 8-stream tri-band WiFi 7 design, a dedicated spectral scanning radio, and a 10 GbE RJ45 uplink port supporting 10G/5G/2.5G/1G connectivity, it delivers powerful wireless performance across the 2.4 GHz, 5 GHz, and 6 GHz bands. With support for 500+ clients, up to 160 m² coverage, real-time spectral analysis, advanced roaming features, and UniFi Network management, the U7 Pro XGS is ideal for demanding WiFi 7 deployments that need speed, reliability, and centralised wireless control.
Specifications:
- Model: Ubiquiti UniFi U7 Pro XGS U7-Pro-XGS
- Device Type: Ceiling-Mounted WiFi 7 Access Point
- WiFi Standard: 802.11be WiFi 7
- Wireless Bands: Tri-band 2.4 GHz, 5 GHz, and 6 GHz
- Spatial Streams: 8-stream wireless design
- MIMO: 2 × 2 on 6 GHz, 4 × 4 on 5 GHz, 2 × 2 on 2.4 GHz
- Coverage Area: Up to 160 m² / 1,750 ft²
- Client Support: 500+ clients

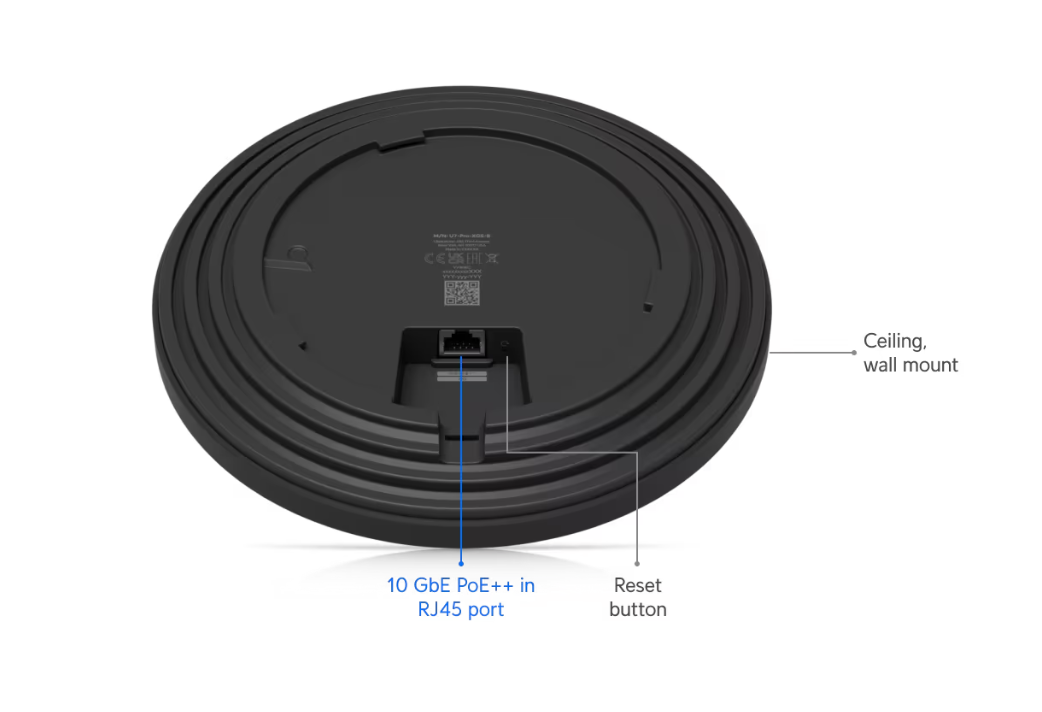

- Networking Interface: 1 × 10 GbE RJ45 port
- Supported Ethernet Speeds: 10G / 5G / 2.5G / 1G
- 6 GHz Performance: Up to 5.8 Gbps with 320 MHz channel width
- 5 GHz Performance: Up to 8.6 Gbps with 240 MHz channel width
- 2.4 GHz Performance: Up to 688 Mbps with 40 MHz channel width
- Dedicated Radio: Spectral scanning radio with real-time spectral analysis
- Wireless Features: Wireless meshing, band steering, fast roaming, BSS transition management, radio resource management, zero-wait DFS, and advanced radio management
- Guest Features: Captive hotspot portal, custom branding landing page, voucher authentication, payment-based authentication, guest network isolation, and external portal support
- Security Features: Private Pre-Shared Key, client device isolation, WiFi speed limiting, RADIUS over TLS, and dynamic RADIUS-assigned VLAN
- Power Method: PoE++
- Supported Voltage Range: 42.5–57V DC
- Maximum Power Consumption: 29W
- Mounting: Ceiling or wall mount, Lite Mount included
- Management: UniFi Network application via Ethernet

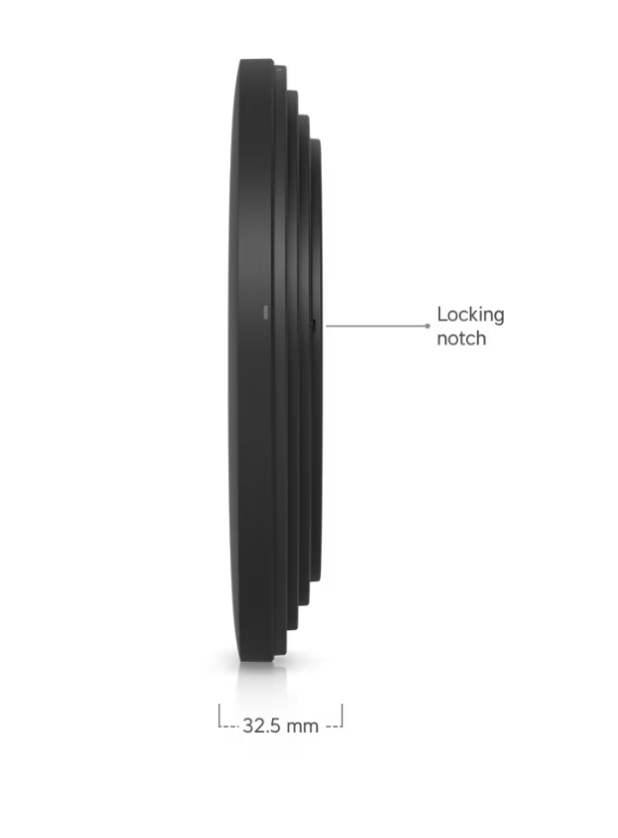

- Dimensions: Ø215 × 32.5 mm
- Weight: 800 g
- Enclosure Material: UV-stabilized polycarbonate and aluminum alloy
- Mount Material: Stainless steel and galvanized steel
- Operating Temperature: -30°C to 40°C
- Operating Humidity: 5% to 95% non-condensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel

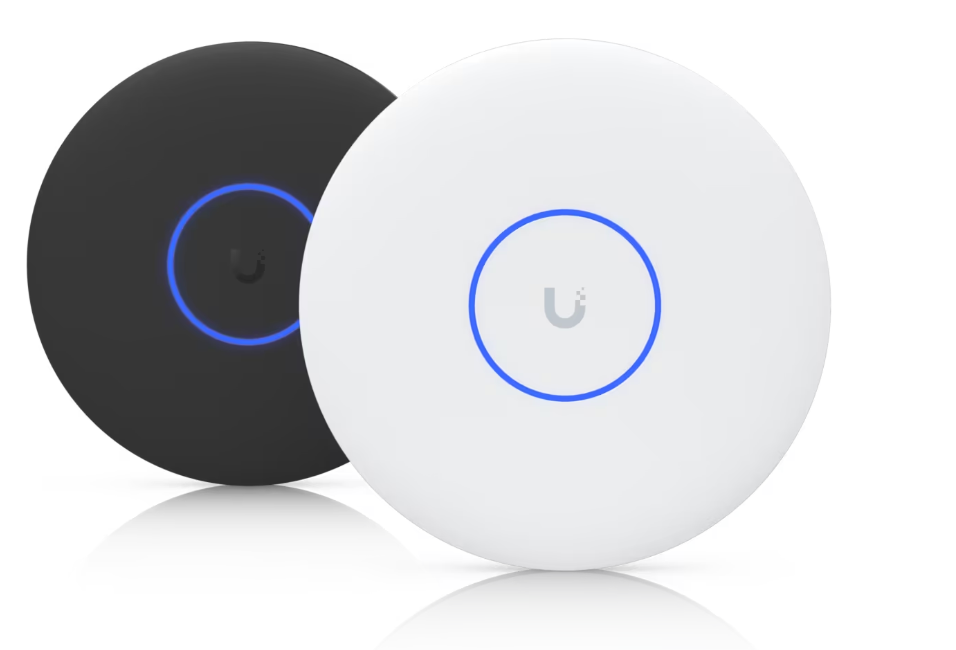

- UniFi Requirement: UniFi Network version 9.0.114 or later for White model; version 9.1.120 or later for Black model
- Singapore Store Price: S$479.00, GST included
- Use Case: WiFi 7 office networks, high-density wireless coverage, 6 GHz client connectivity, multi-gigabit internet, enterprise UniFi deployments, retail wireless, advanced home networks, and professional ceiling or wall-mounted WiFi installations
