Description
Ubiquiti UniFi WiFi BaseStation XG UWB-XG

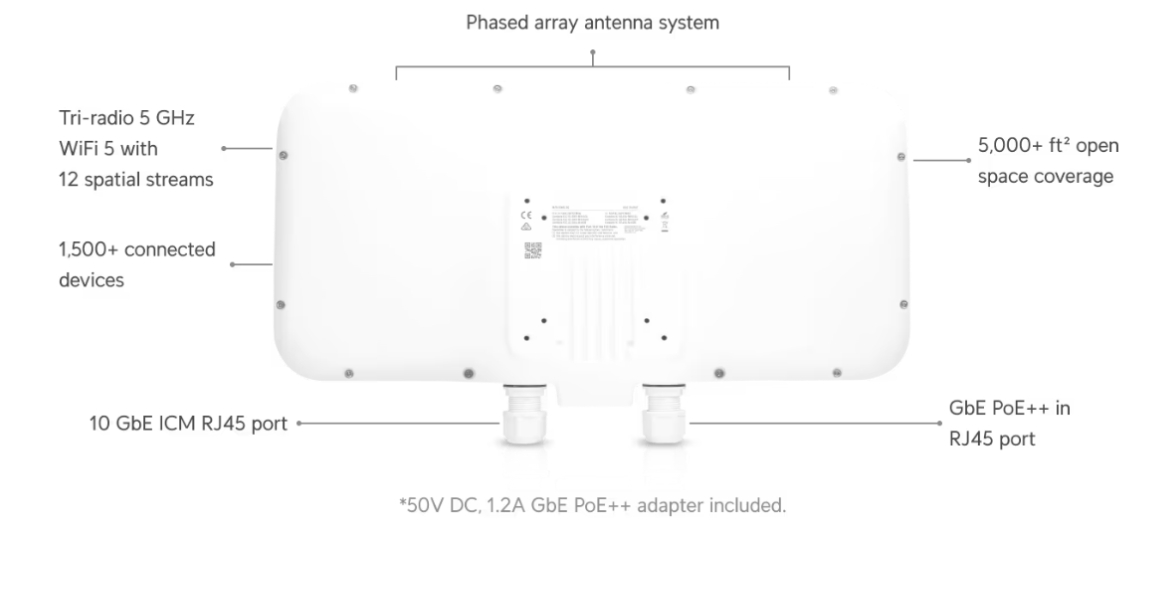

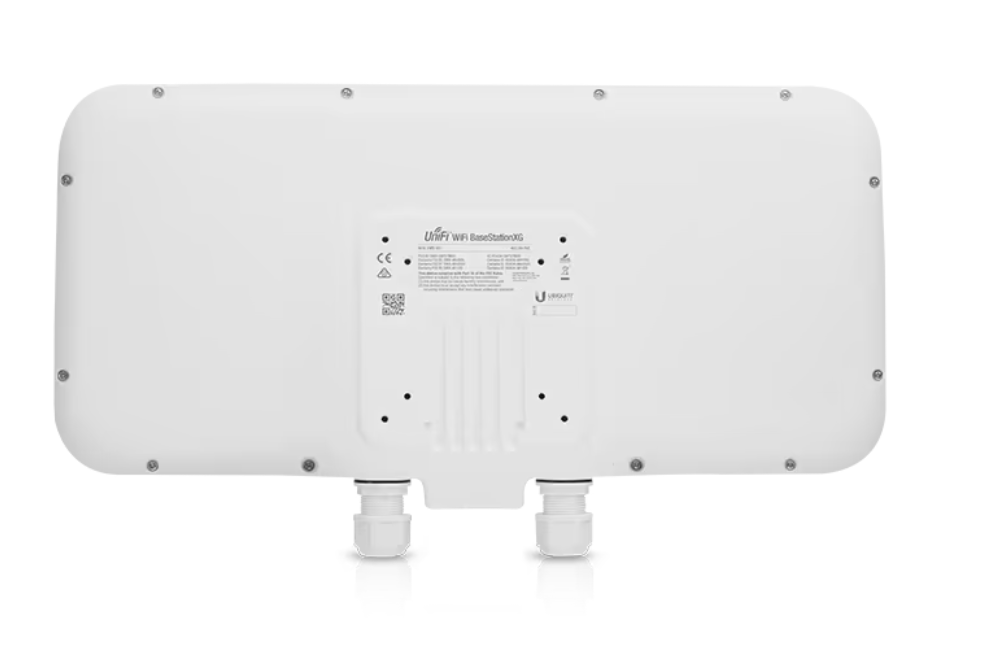

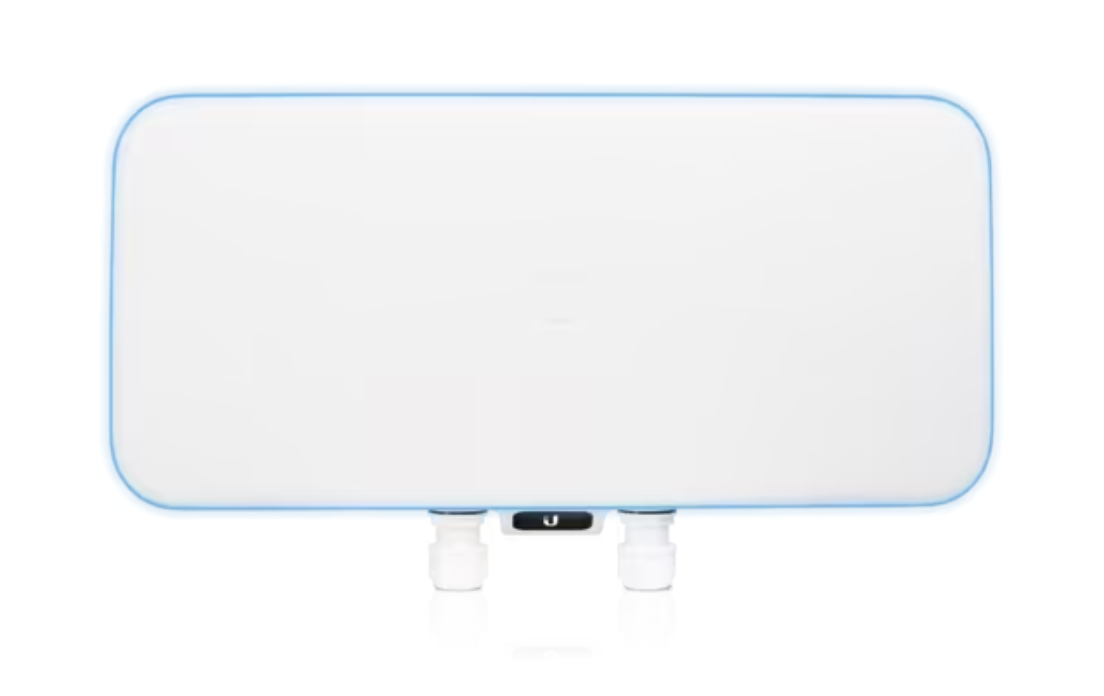

The Ubiquiti UniFi WiFi BaseStation XG UWB-XG is a high-density tri-radio WiFi 5 access point designed for large venues, stadiums, event spaces, auditoriums, campuses, and other demanding wireless environments. Built with 12 spatial streams, a selectable beamforming antenna, and dual Ethernet connectivity including a 1/10 GbE ICM Ethernet port, it delivers strong, focused wireless coverage for high-client-density deployments. With UniFi Network management, Bluetooth support, outdoor-rated operating temperature range, and pole-mount installation, the UWB-XG is ideal for professional UniFi networks that need reliable WiFi coverage across large open areas and crowded spaces.
Specifications:
- Model: Ubiquiti UniFi WiFi BaseStation XG UWB-XG
- Device Type: Tri-Radio WiFi 5 BaseStation Access Point
- WiFi Standard: WiFi 5 / 802.11ac
- Wireless Design: Tri-radio AP with 12 spatial streams
- Antenna: Integrated dual-mode selectable beamforming antenna array
- Networking Interface: 1 × GbE RJ45 port and 1 × 1/10 GbE ICM Ethernet port
- Power Method: PoE powered
- Supported Voltage Range: 44–57V DC
- Maximum Power Consumption: 31W
- PoE Adapter: Included
- Management: Ethernet and Bluetooth

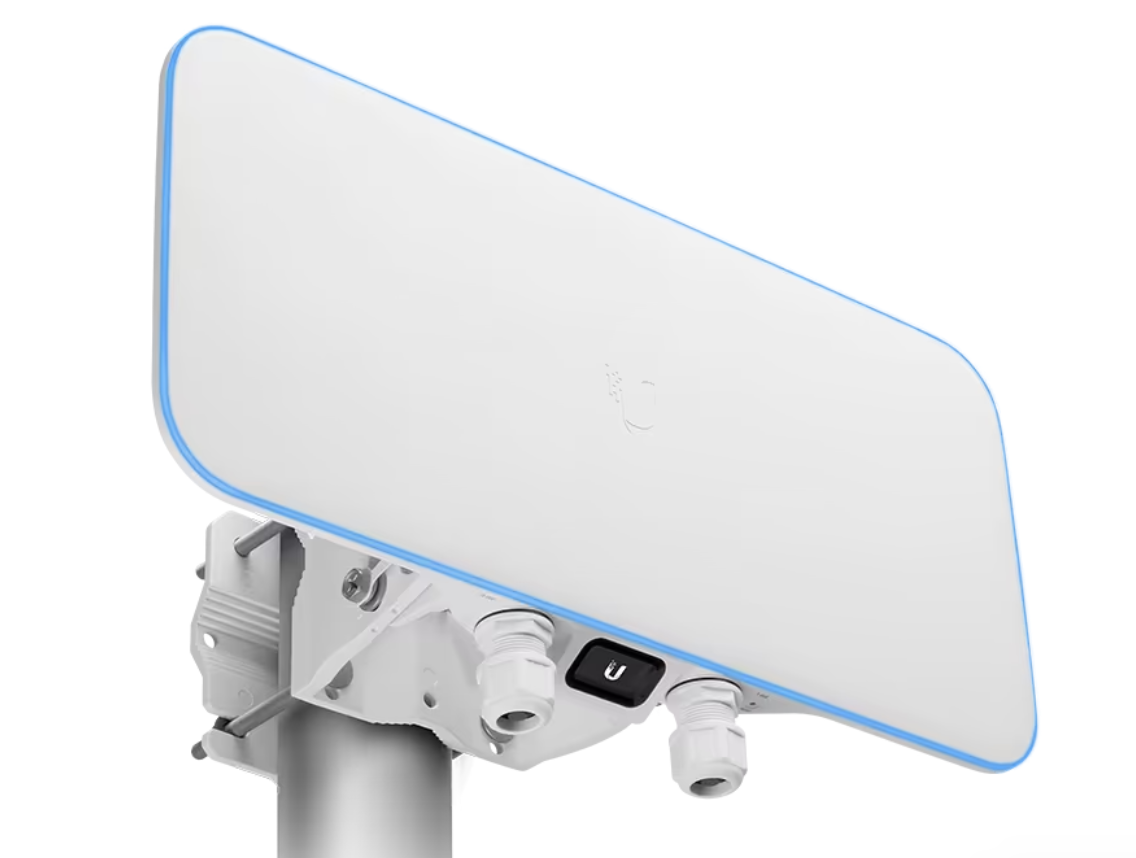

- Mounting: Pole mount
- Pole Mount Diameter: 1–3 inches / 25–76 mm
- Enclosure Material: Polycarbonate and aluminum alloy
- LEDs: System R/G/B LED
- Channel Bandwidth: HT 20/40 MHz and VHT 20/40/80 MHz
- Weight: 3.2 kg
- Operating Temperature: -40°C to 70°C
- Operating Humidity: 5% to 95% non-condensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel
- UniFi Requirement: UniFi Network version 6.0.45 or later
- Use Case: Stadiums, large halls, event venues, campuses, outdoor public areas, high-density guest WiFi, and professional UniFi wireless deployments
