Description
Ubiquiti UniFi Cloud Gateway Max UCG-Max
The Ubiquiti UniFi Cloud Gateway Max UCG-Max is a compact, high-performance 2.5G cloud gateway designed for home, office, and small business networks that need fast routing, advanced security, and centralised UniFi management. Powered by a quad-core ARM processor and running the UniFi ecosystem, it delivers reliable routing, firewall protection, VPN, traffic management, and optional NVR storage support in a small desktop form factor. With five 2.5 GbE RJ45 ports, support for 30+ UniFi devices and 300+ clients, the UCG-Max is ideal for users who want professional-grade network control without using a rack-mounted gateway.
Specifications:
- Model: Ubiquiti UniFi Cloud Gateway Max UCG-Max
- Device Type: Compact 2.5G Cloud Gateway

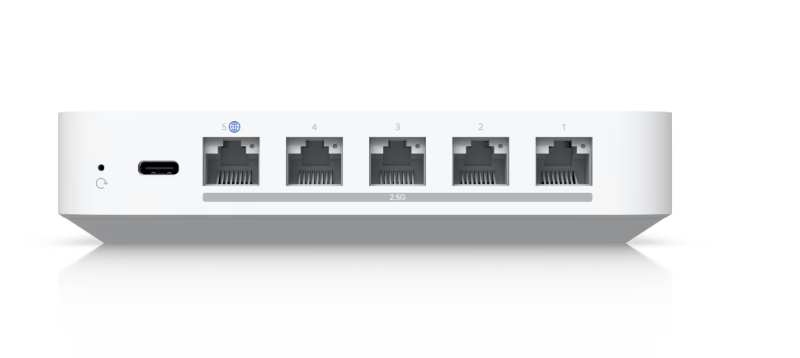

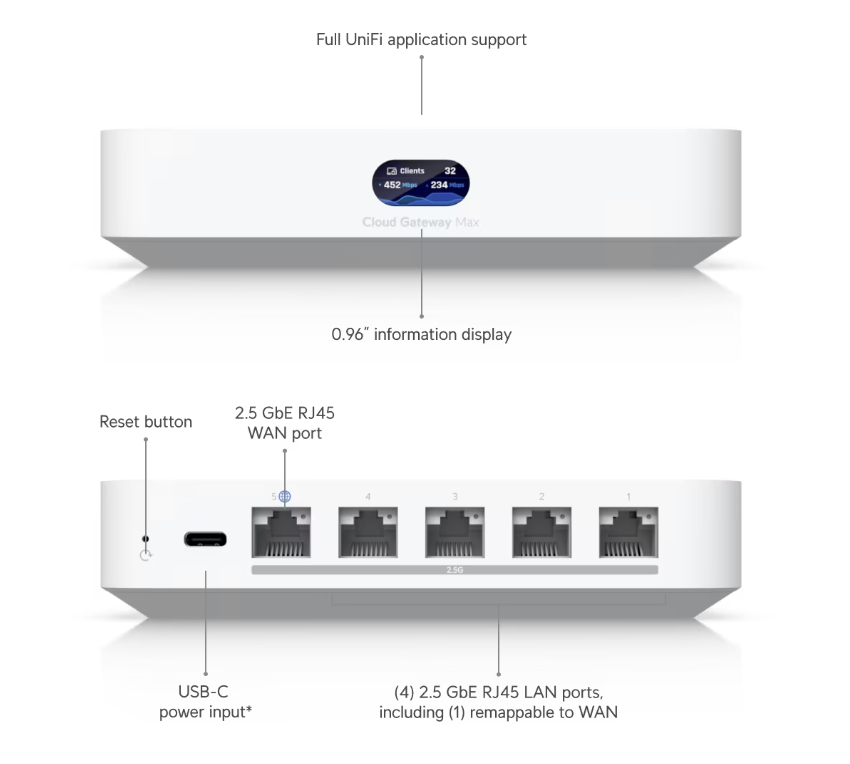

- Ethernet Ports: 5 × 2.5 GbE RJ45 ports
- WAN Ports: 1 × default 2.5 GbE WAN port, with additional ports configurable for WAN use
- LAN Ports: 4 × 2.5 GbE RJ45 LAN ports
- Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
- RAM: 3 GB system memory

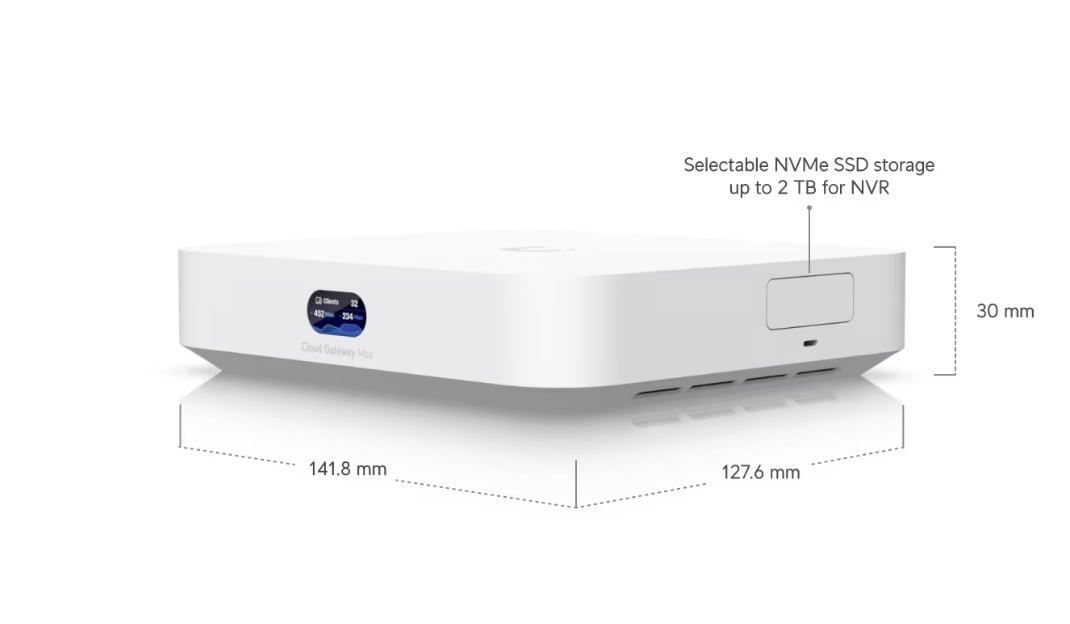

- Storage: Selectable NVMe SSD storage for UniFi Protect/NVR use
- IDS/IPS Throughput: Up to 2.3 Gbps
- Device Support: 30+ UniFi devices
- Client Support: 300+ connected clients
- UniFi Applications: Network, Protect, Access, Talk, and Connect
- Security Features: Stateful firewall, IDS/IPS threat detection, content filtering, country/domain filtering, VLAN traffic segmentation
- VPN Support: WireGuard, L2TP, OpenVPN, IPsec site-to-site VPN, Teleport VPN
- Management: UniFi application, Ethernet, Bluetooth

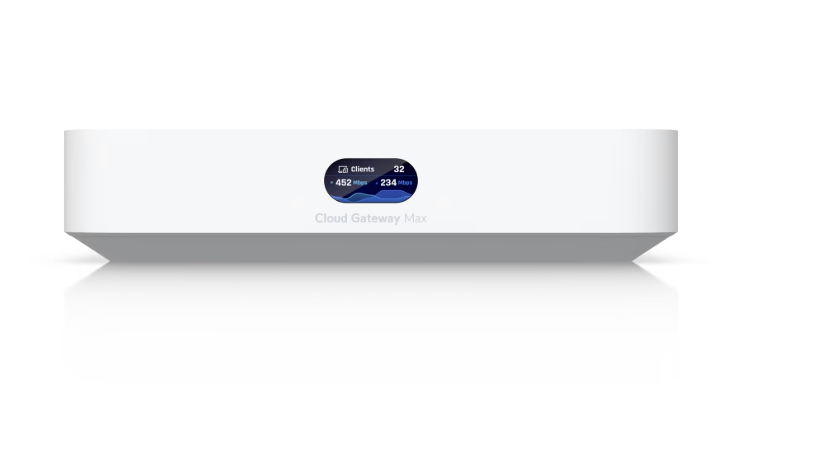

- Display: 0.96-inch status display
- Power: USB-C power, 5V DC/5A adapter included
- Power Consumption: 16.1W maximum

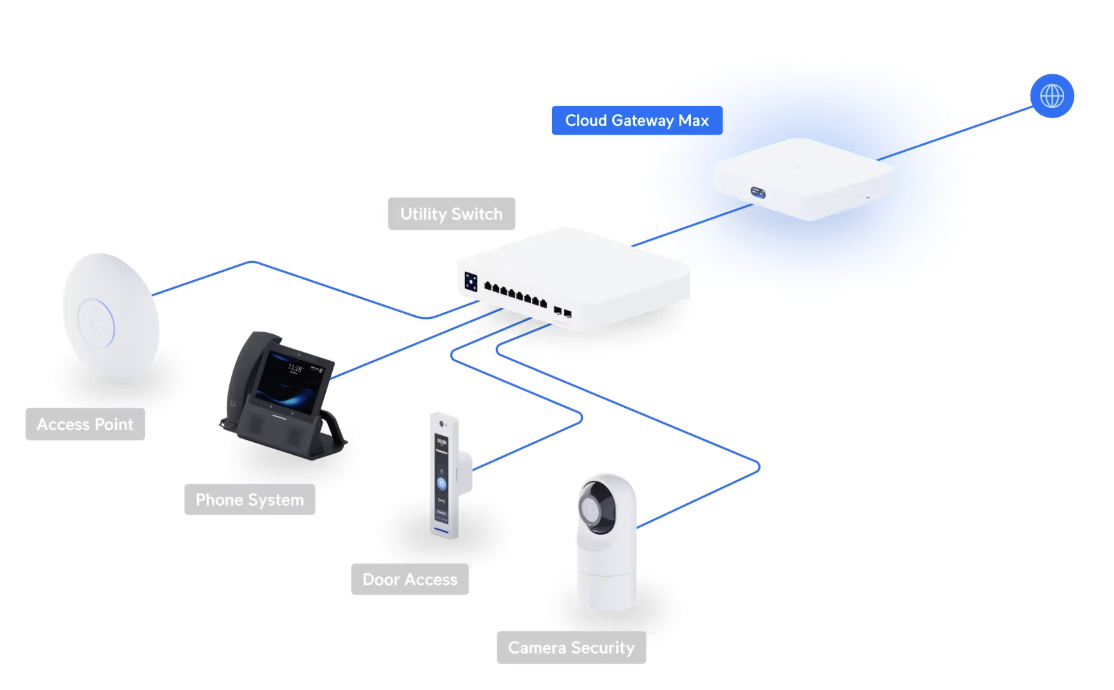

- Use Case: Home networks, small offices, managed UniFi networks, multi-gig internet, VPN access, traffic control, and UniFi camera/NVR setups
