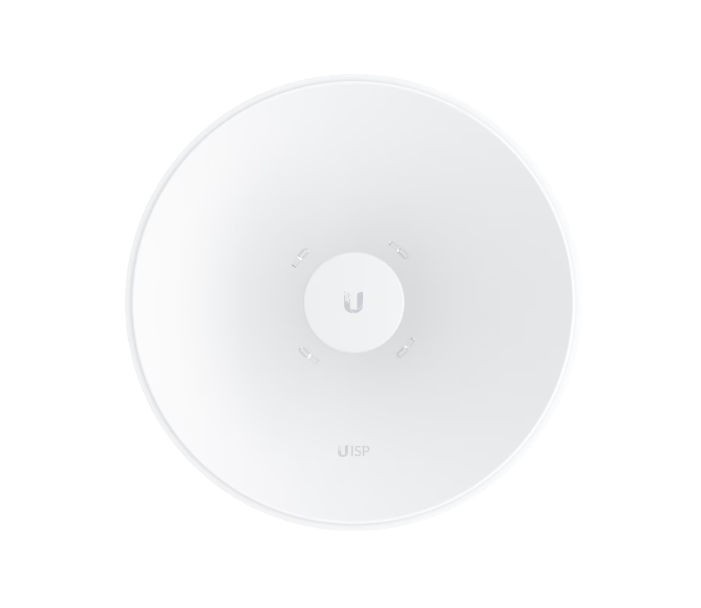

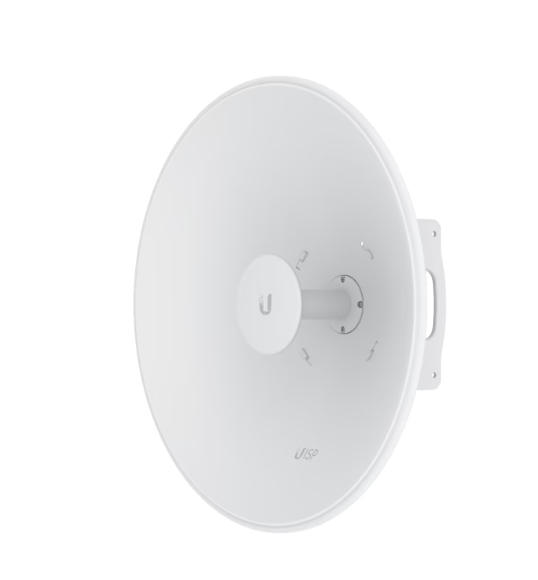

UISP Dish

The UISP Dish Antenna (UISP-Dish) is a high-gain, point-to-point (PtP) dish antenna designed for the UISP ecosystem. Covering a wide 5.15 to 6.875 GHz frequency range, it is built to amplify signals for compatible airFiber and airMAX radios for reliable long-range links .

Specifications:

• Model: UISP Dish (UISP-Dish)

• Device Type: Point-to-Point (PtP) Dish Antenna

• Function: High-gain antenna for long-range wireless links in the UISP ecosystem

• Frequency Range: 5.15 to 6.875 GHz

• Gain: 30 dBi

• Beamwidth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)

• Polarization: Dual-linear

• Cross-Pol Isolation: 20 dB

• Max. VSWR: 2:1

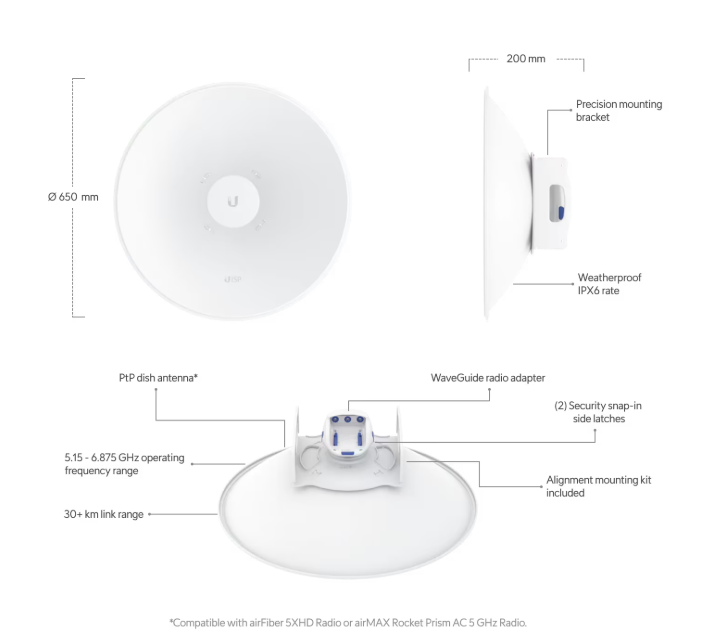

• Dimensions: ⌀650 x 200 mm (⌀25.6 x 7.9″)

• Weight: Device: 4.54 kg (10 lb); Mount: 3.1 kg (6.8 lb)

• Enclosure Material: Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy

• Weatherproofing: IPX6

• Wind Survivability: Up to 200 km/h (124 mph)

• Wind Loading: 860 N at 200 km/h (193 lbf at 124 mph)

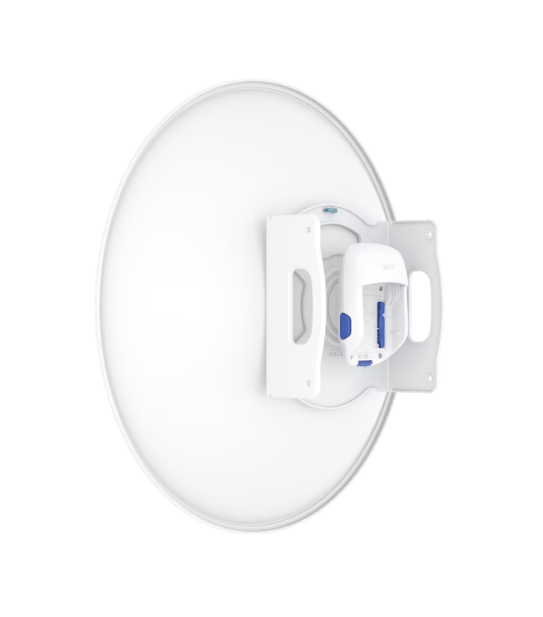

• Mounting: Pole mount with alignment mount included; mechanical adjustment: ±15° elevation

• Pole Mount Diameter: ⌀40 to 90 mm (⌀1.57 to 3.5″)

• Use Case: Long-range PtP backhaul, connecting remote sites, and ISP network infrastructure

• Security Features: NDAA compliant

• Management: Passive antenna; management handled by the connected radio (airFiber or airMAX)

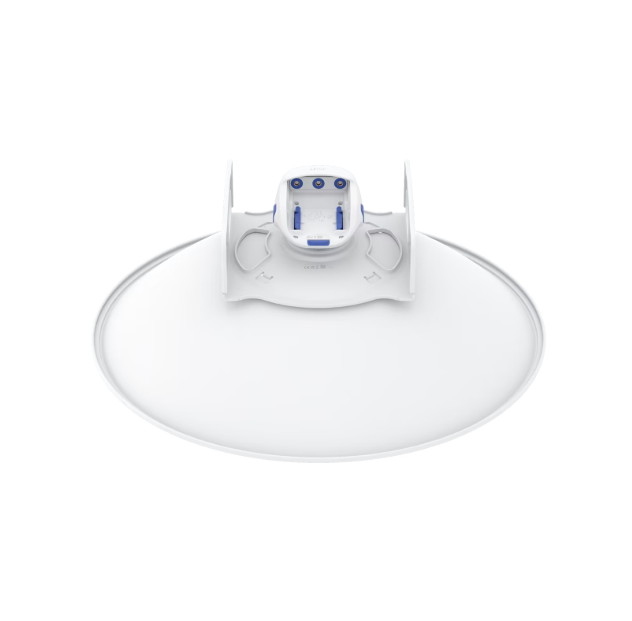

• Design: Durable outdoor construction with a precision alignment mount and snap-in radio connection

• Compatibility: Compatible with airFiber 5XHD, airMAX Rocket Prism AC 5 GHz, and other UISP radios with a compatible WaveGuide adapter
