Description
UISP Wave MLO5 (Wave-MLO5)
The UISP Wave MLO5 (Wave-MLO5) is a high-performance network bridge designed for ultra-long-distance Point-to-Point (PtP) links. Leveraging dual 5 GHz WiFi 7 radios with Multi‑Link Operation (MLO) technology, it delivers exceptional throughput of 5+ Gbps over ranges up to 100 km . With 10 GbE and SFP+ connectivity and IPX6 weatherproofing, it is built for demanding outdoor enterprise and ISP backhaul applications.
Specifications:
-
Model: UISP Wave MLO5 (Wave-MLO5)
-
Device Type: Outdoor Point-to-Point Bridge / Radio
-
Function: High‑capacity, long‑distance wireless bridging with Multi‑Link Operation (MLO)
-
Wi‑Fi Standard: Wi‑Fi 7 (802.11be)
-
Frequency Band: Dual 5 GHz (operating frequency: 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz)
-
Total Throughput: 5+ Gbps
-
Max. Range: Up to 100 km (USA)
-
Networking: (1) 10 GbE RJ45 port, (1) 10G SFP+ port
-
Processor: Quad‑core IPQ5322 at 1.5 GHz
-
Memory: DDR4 1 GB
-

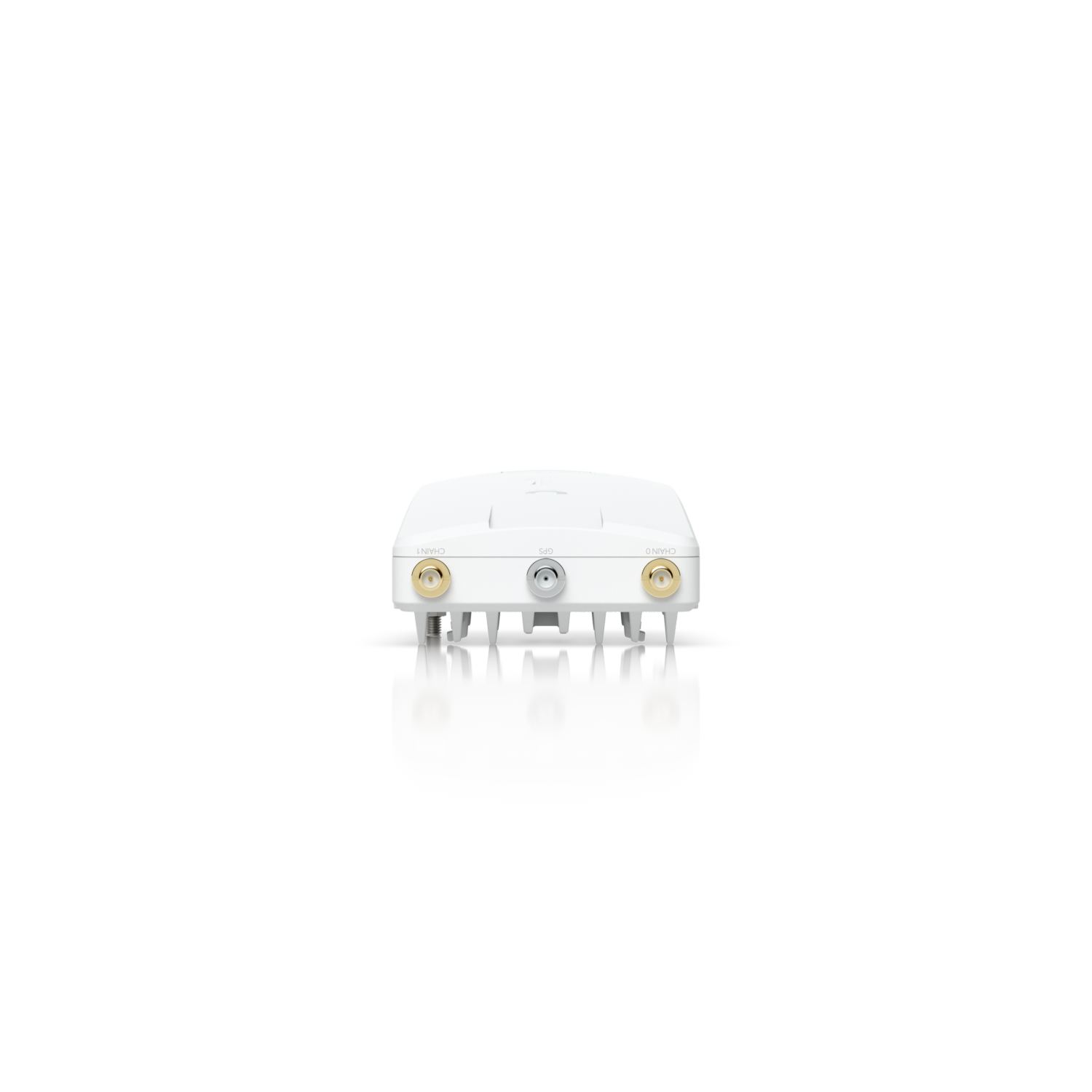

RF Connectors: (2) RP‑SMA (waterproof), (1) GPS (waterproof)
-
Antenna: 2×2 MIMO (5 GHz)
-
Max. Power Consumption: 20W
-
Power Method: Passive PoE 44‑54V DC (included 54V, 0.56A PoE adapter)
-
Weatherproofing: IPX6‑rated (outdoor use)
-
Operating Temperature: -40 to 60° C (-40 to 140° F)
-

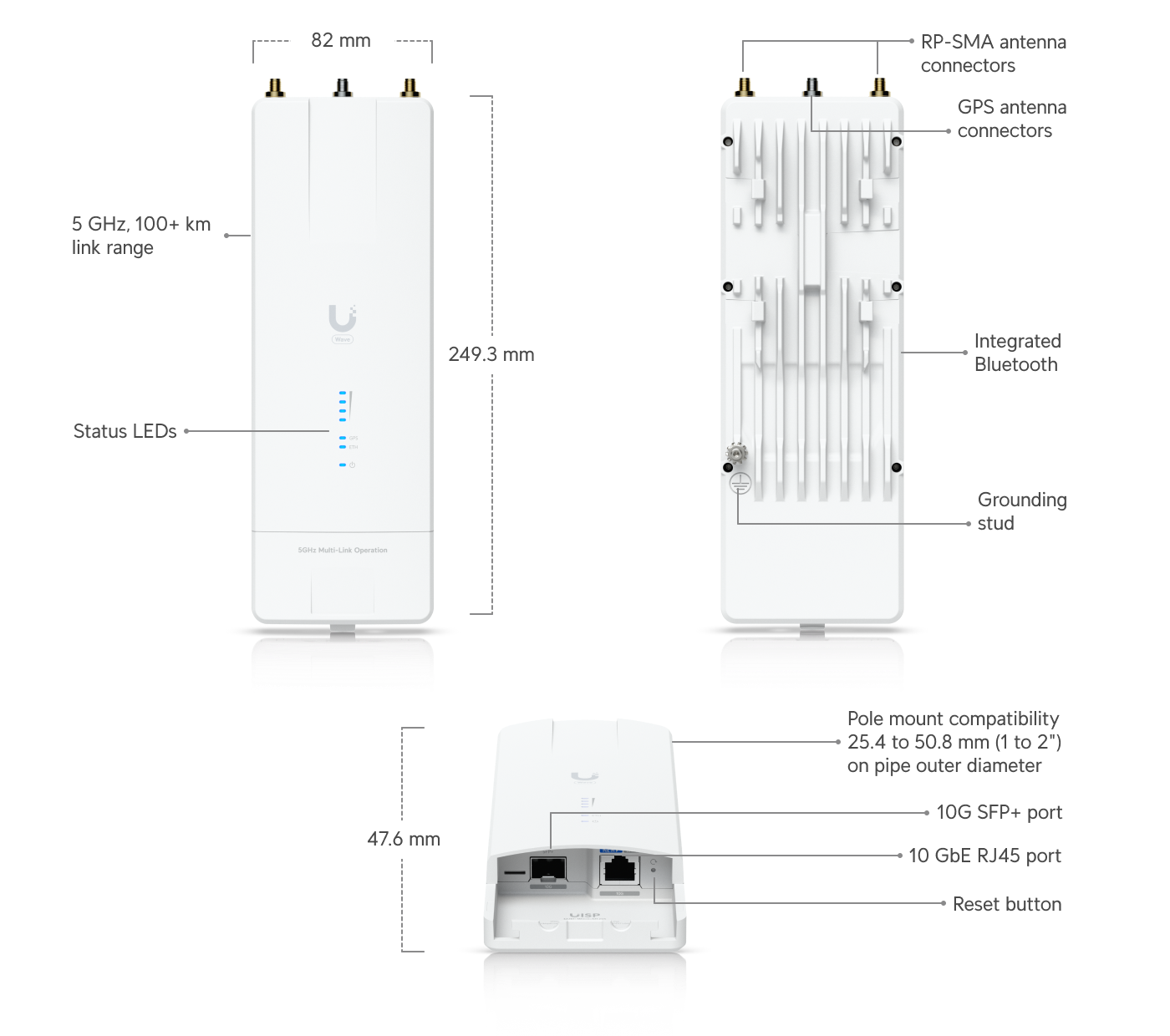

Mounting: Pole mount (25.4 to 50.8 mm diameter)
-
Dimensions: 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9″)
-
Weight: 575 g (1.3 lb)
-
Enclosure Material: Aluminum alloy, UV‑resistant polycarbonate
-
Use Case: Long‑distance wireless backhaul, ISP last‑mile connectivity, enterprise campus bridging, rural connectivity, and remote site links
-
Security Features: WPA3‑PSK (AES) encryption
-
Management: UISP platform (remote visibility, alignment tools, diagnostics, firmware updates), ping watchdog, NTP client, Bluetooth setup
-
Design: Compact outdoor unit with integrated GPS, dedicated spectral analysis radio, channel puncturing, and compatibility with airMAX / airFiber X antennas
-
Compatibility: Compatible with UISP Wave, airMAX antenna, airFiber X antenna, UISP Dish, and UISP Horn
