Description

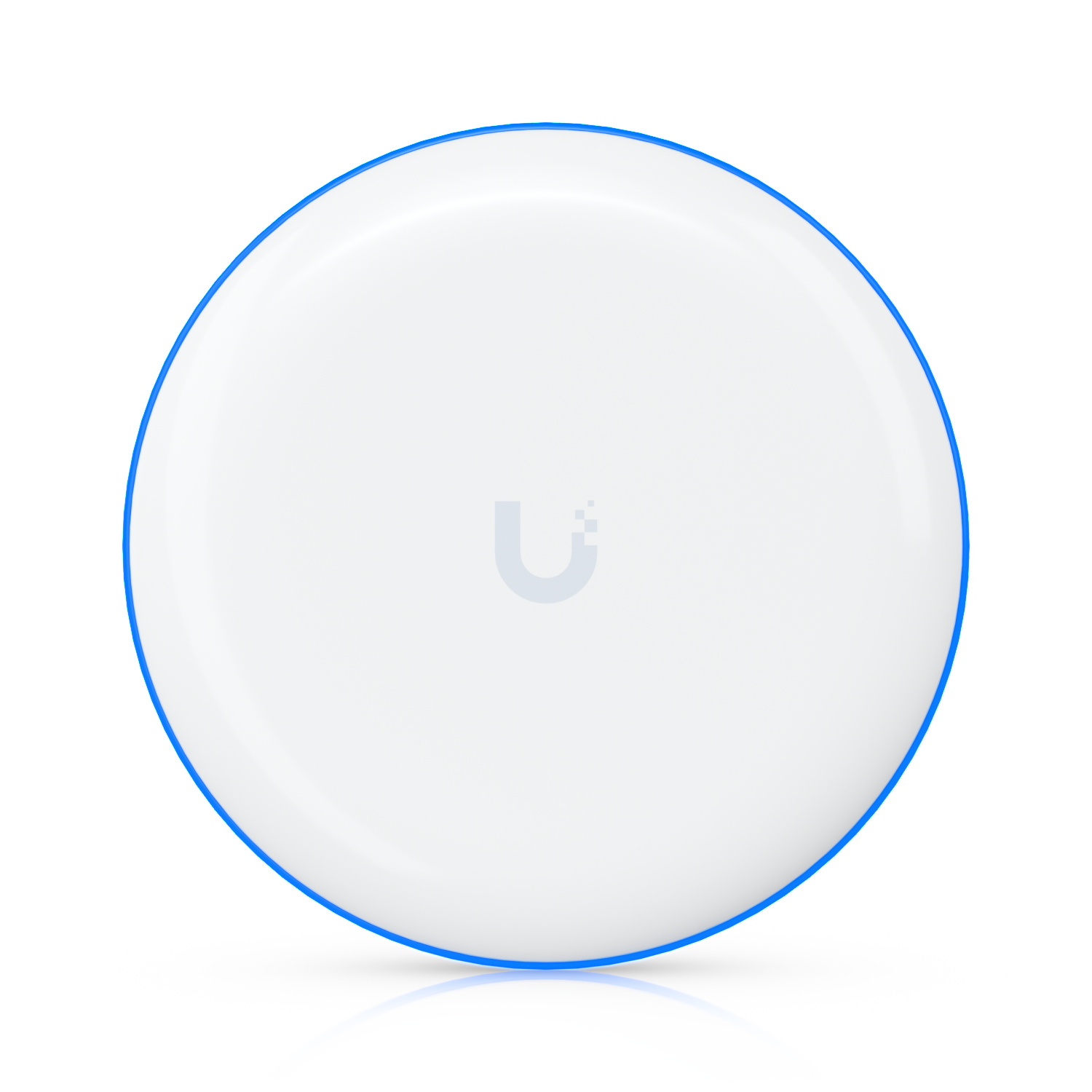

UniFi Building Bridge (UBB)
The UniFi Building Bridge (UBB) is a high-performance 60 GHz wireless point-to-point bridge designed to provide fast, reliable connectivity between buildings without the need for fiber or Ethernet cabling. Featuring 60 GHz Gigabit wireless technology with a 5 GHz radio for automatic failover, the UBB delivers low-latency, high-speed performance over long distances while integrating seamlessly with the UniFi ecosystem. Its weather-resistant design, PoE support, and simple UniFi management make it an ideal solution for connecting offices, warehouses, campuses, schools, and commercial buildings.
Specifications:
- Model: UniFi Building Bridge (UBB)
- Device Type: 60 GHz Wireless Point-to-Point Bridge
- Wireless Standards: 60 GHz 802.11ad with 5 GHz WiFi Radio for Failover
- Frequency Bands: 60 GHz Primary Link / 5 GHz Backup Link
- Maximum Throughput: Up to 1.7 Gbps
- Maximum Range: Up to 500 m (1,640 ft)
- Antenna: Integrated High-Gain Directional Antenna

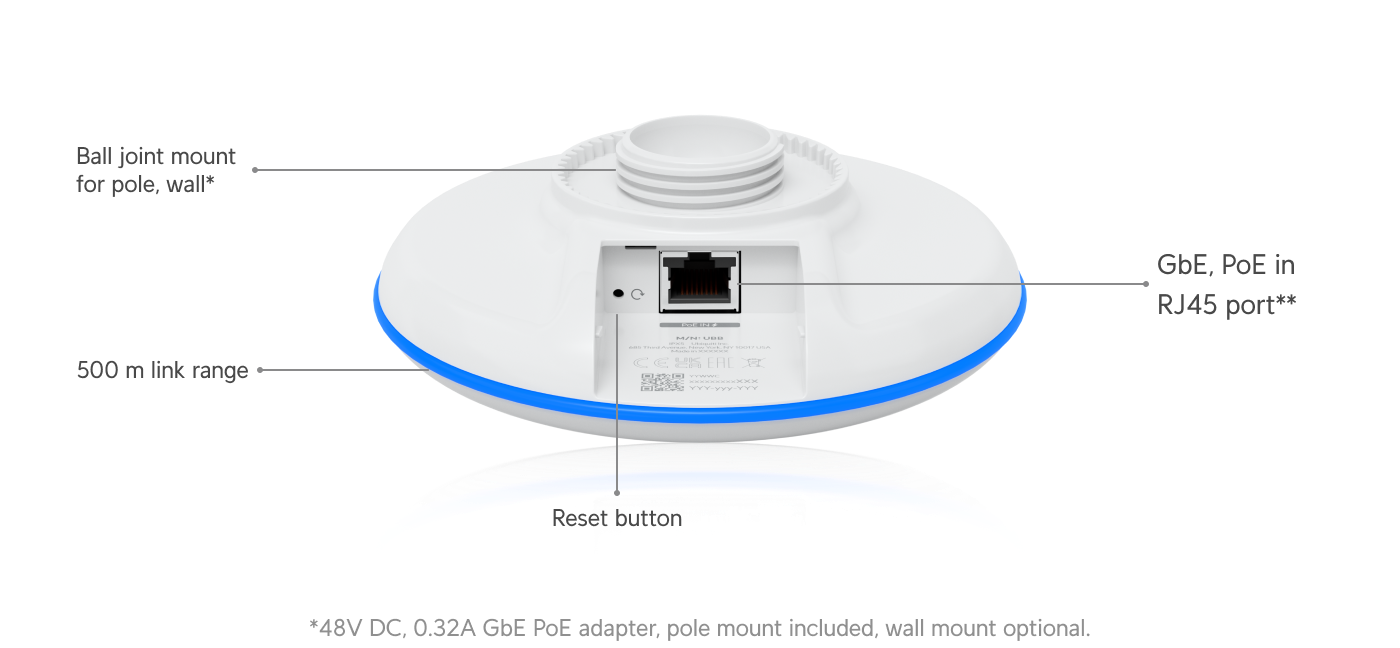

- Ethernet Port: 1 × Gigabit Ethernet RJ45 Port (PoE Input)
- Management: UniFi Network Controller, UniFi OS, UniFi Mobile App, Cloud Management, Remote Access
- Power Method: PoE (802.3af)
- Power Consumption: Maximum 11W

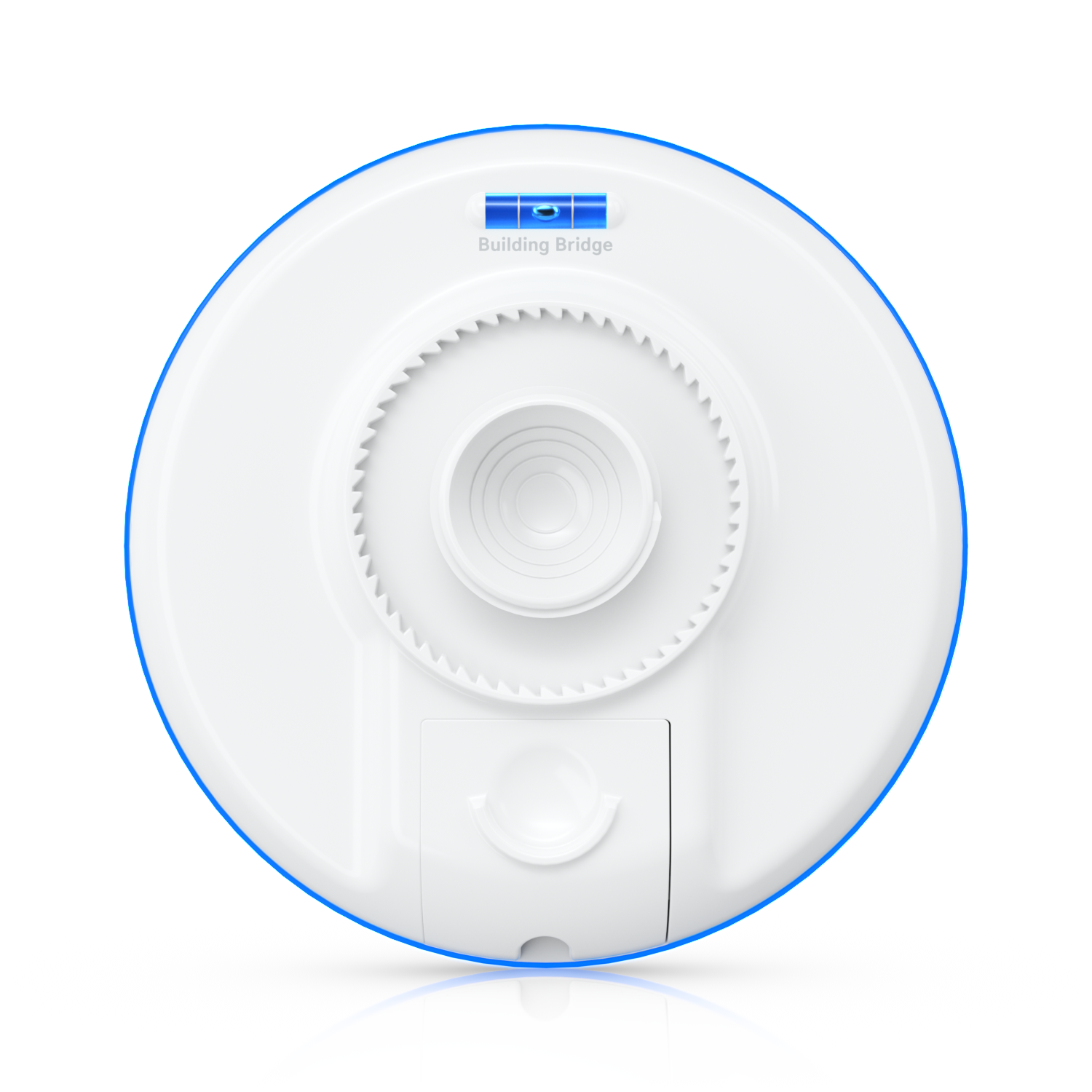

- Mounting: Pole or Wall Mount
- Operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Weather Rating: IPX6 Weather-Resistant Enclosure

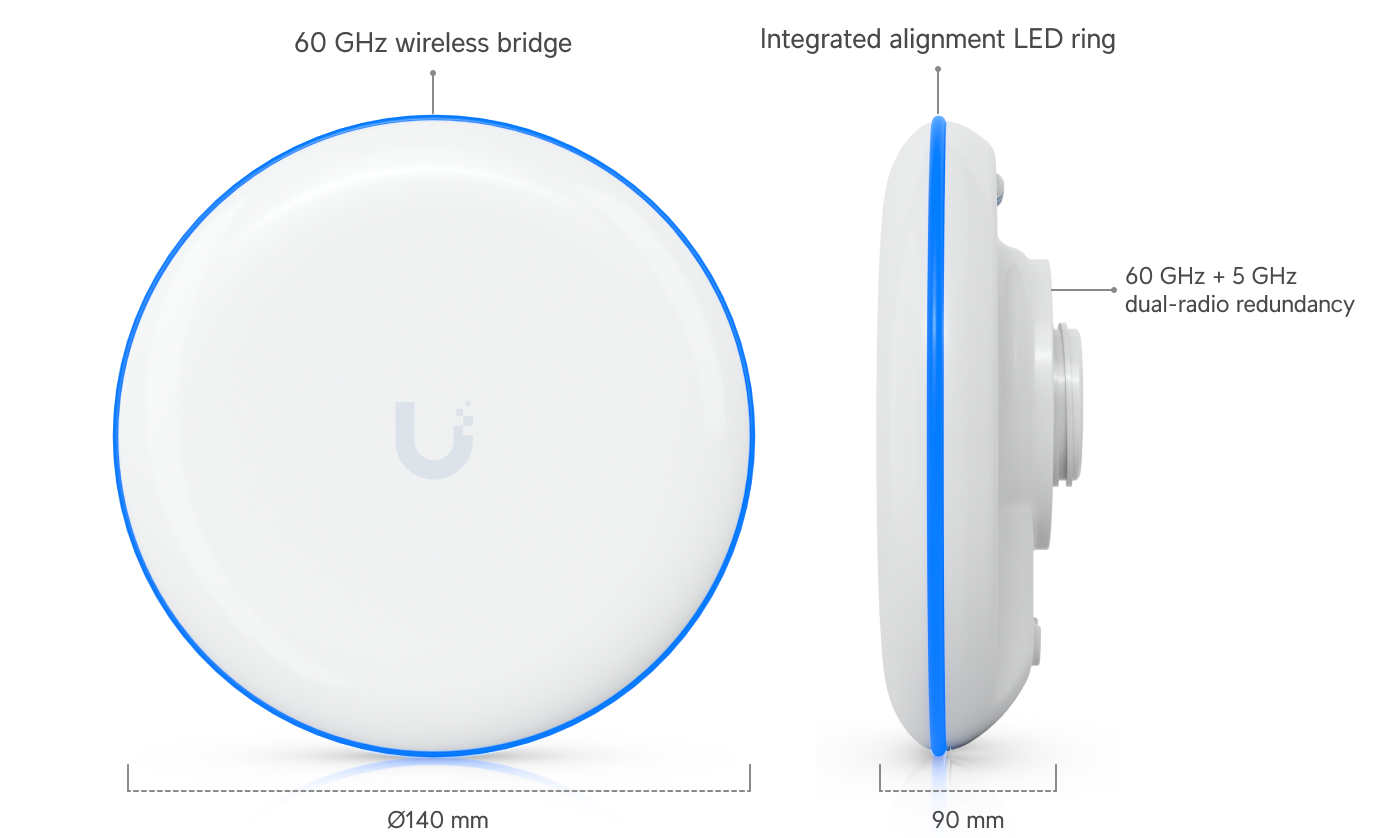

- Dimensions: 140 × 140 × 90 mm (5.5 × 5.5 × 3.5″)

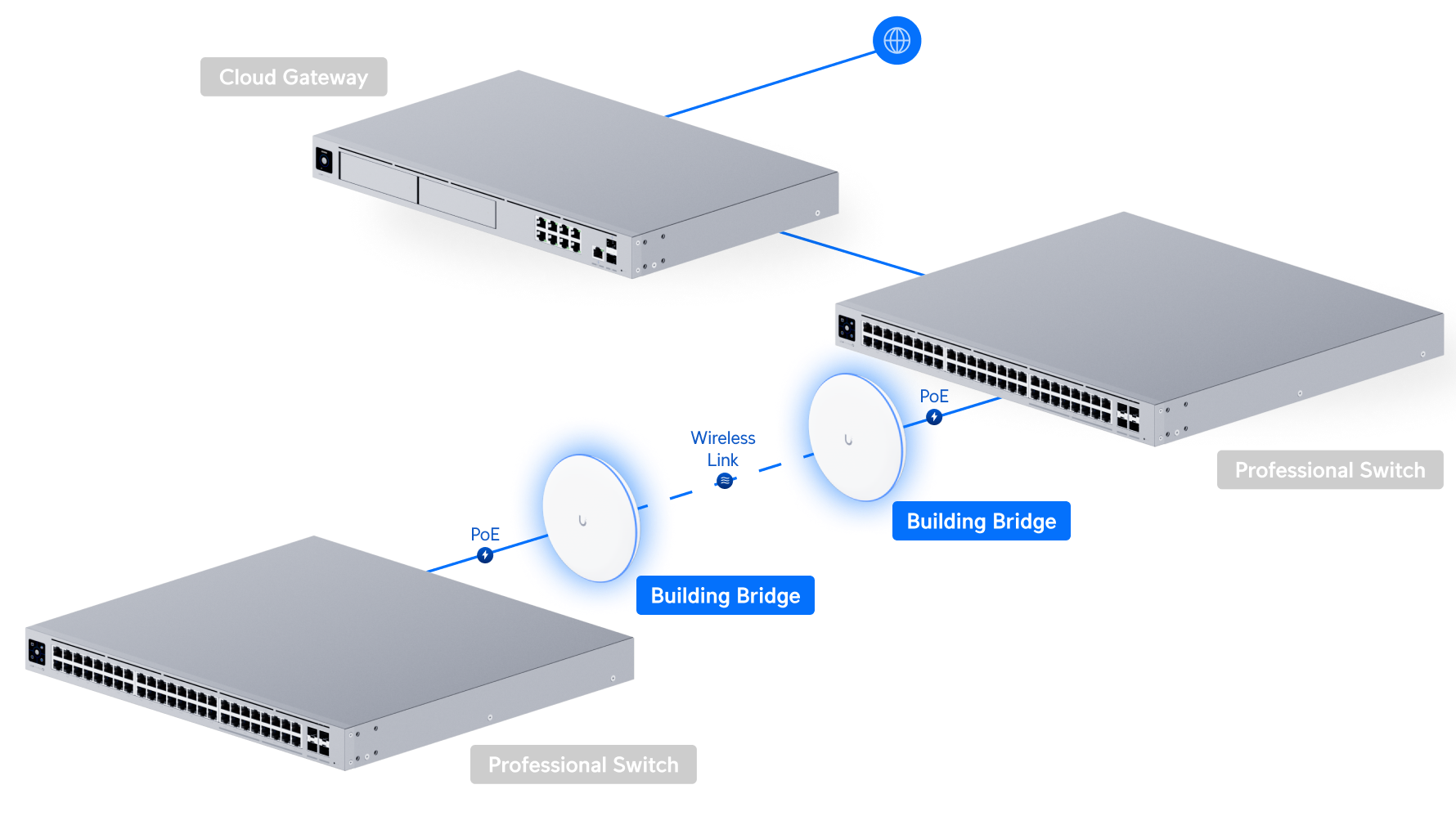

- Use Case: Building-to-building connectivity for offices, warehouses, schools, campuses, hospitality, retail locations, and commercial properties without trenching or fiber installation.
- Security Features: AES Encryption, Secure Wireless Backhaul, Device Authentication
- Management Features: Centralized Monitoring, Link Status Analytics, Firmware Management, Remote Troubleshooting
- Design: Compact Outdoor Wireless Bridge with Integrated Directional Antenna and LED Status Indicator
- Compatibility: Fully Integrated with UniFi Network Application and UniFi Ecosystem Devices.
