Description

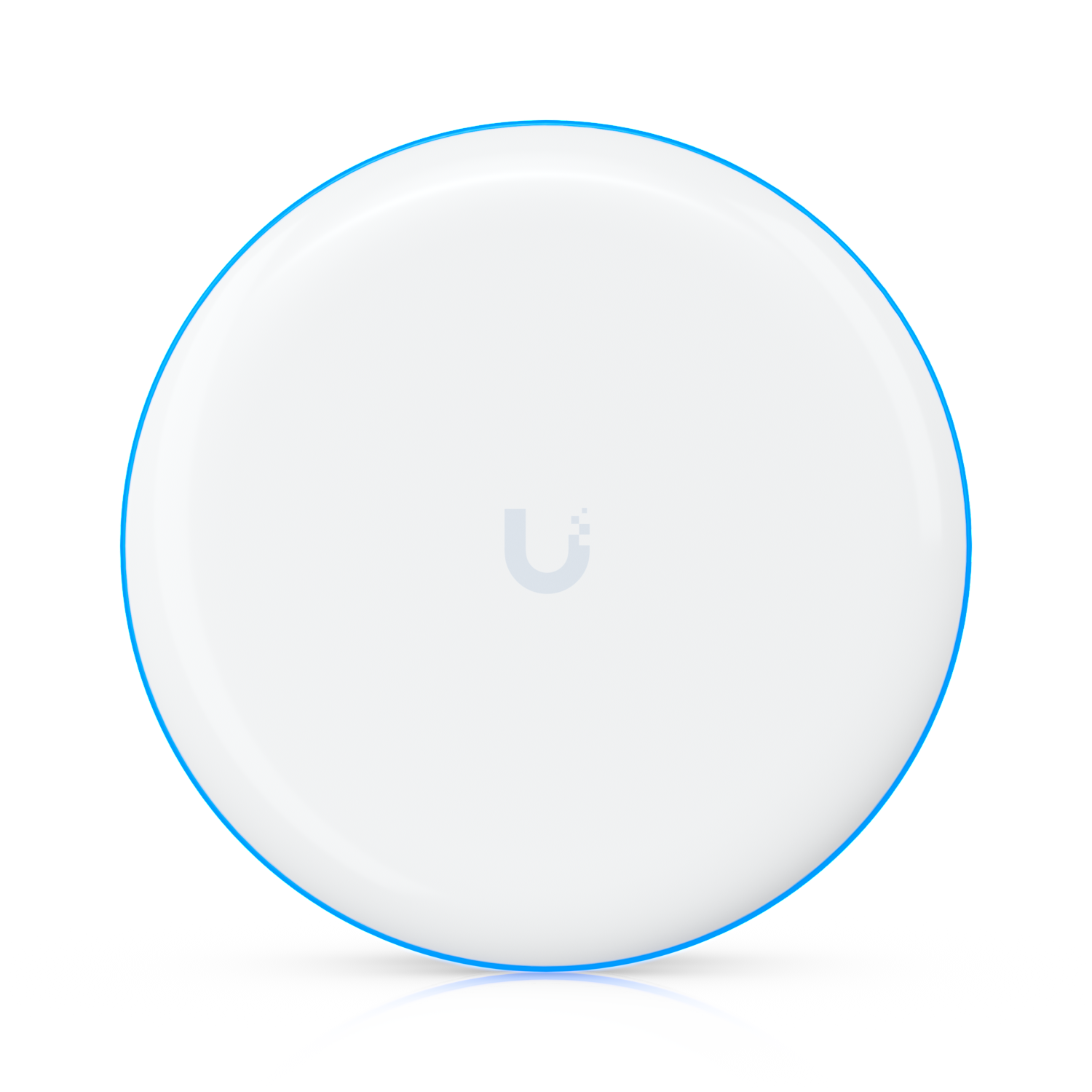

UniFi Building Bridge XG (UBB-XG)
The UniFi Building Bridge XG (UBB-XG) is an ultra-high-performance 10 Gigabit wireless point-to-point bridge designed to provide fiber-like connectivity between buildings without the need for trenching or physical cabling. Featuring advanced 60 GHz mmWave technology with a 5 GHz radio for automatic failover, the UBB-XG delivers exceptionally high throughput, low latency, and reliable long-distance performance. Built for enterprise and campus deployments, its rugged weather-resistant design, multi-gigabit connectivity, and seamless integration with the UniFi ecosystem make it the ideal solution for connecting data centers, office buildings, warehouses, campuses, and industrial facilities.
Specifications:
- Model: UniFi Building Bridge XG (UBB-XG)
- Device Type: 60 GHz Wireless Point-to-Point Bridge
- Wireless Standards: 60 GHz 802.11ay with 5 GHz Radio for Failover
- Frequency Bands: 60 GHz Primary Link / 5 GHz Backup Link
- Maximum Throughput: Up to 10 Gbps
- Maximum Range: Up to 500 m (1,640 ft)
- Antenna: Integrated High-Gain Directional Antenna
- Ethernet Port: 1 × 10 GbE RJ45 Port (PoE++ Input)
- Management: UniFi Network Controller, UniFi OS, UniFi Mobile App, Cloud Management, Remote Access
- Power Method: PoE++ (802.3bt)
- Power Consumption: Maximum 30W

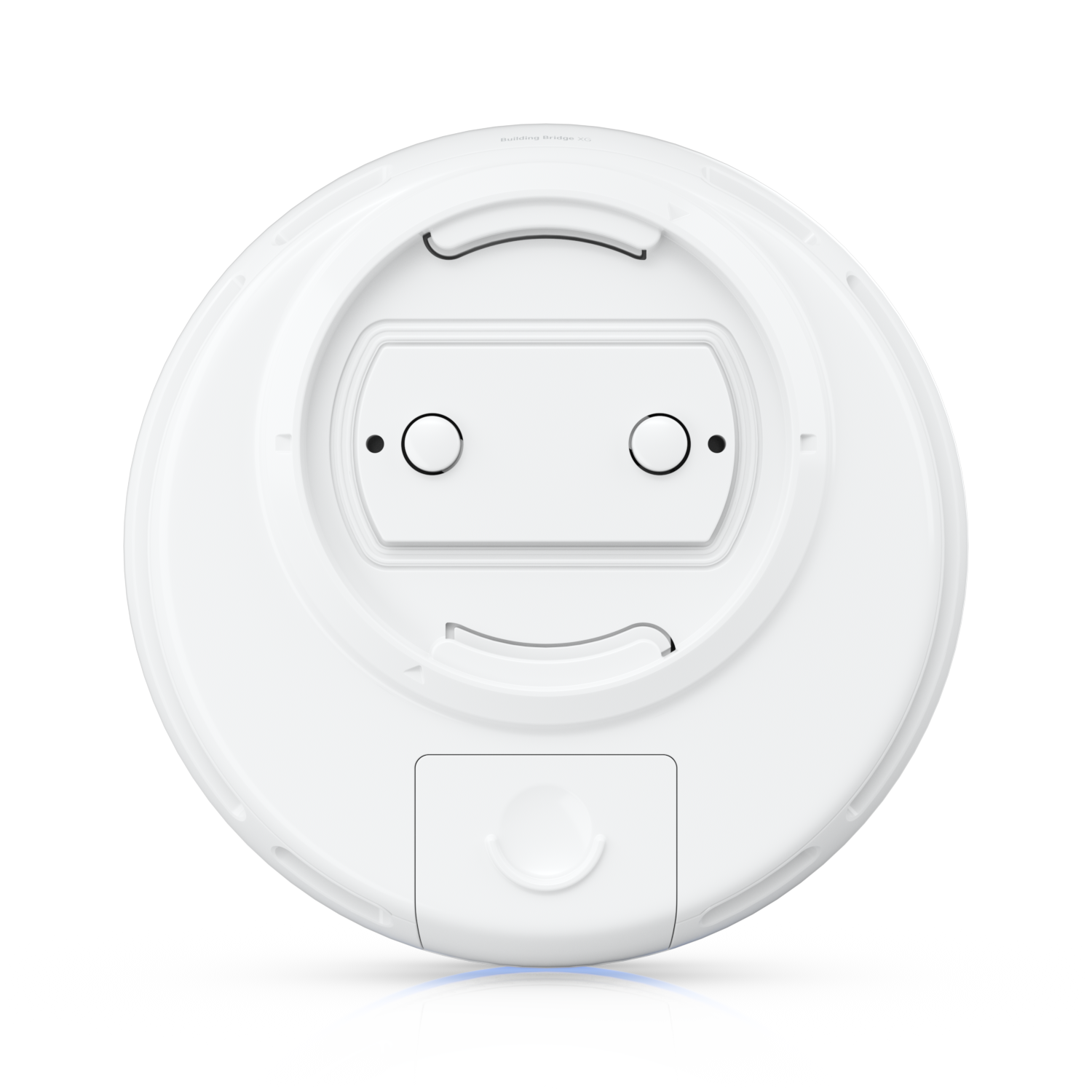

- Mounting: Pole or Wall Mount
- Operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Weather Rating: IPX6 Weather-Resistant Enclosure

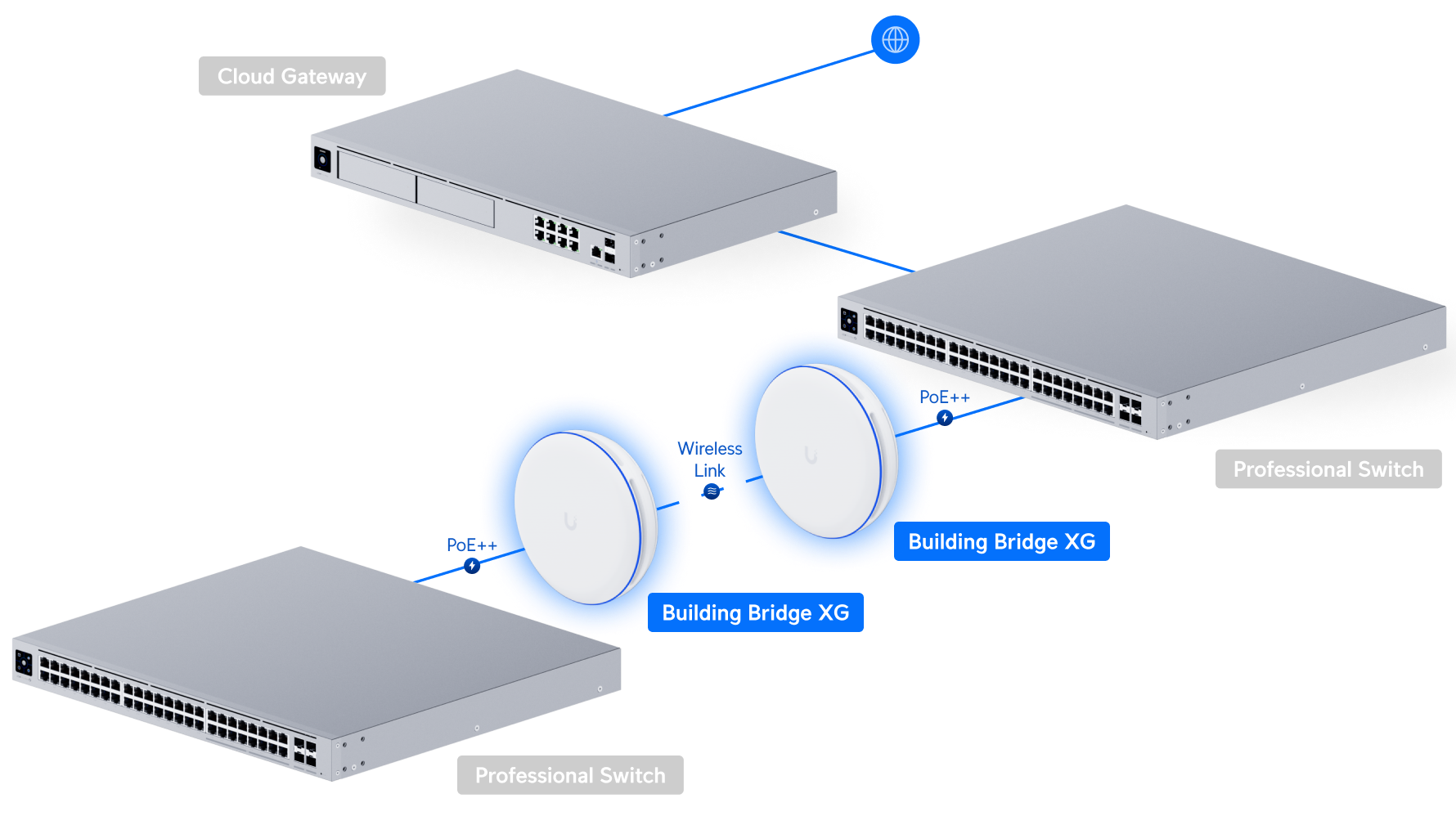

- Use Case: High-speed building-to-building connectivity for enterprise campuses, data centers, warehouses, educational institutions, healthcare facilities, hospitality, and industrial environments requiring multi-gigabit wireless backhaul.
- Security Features: AES Encryption, Secure Wireless Backhaul, Device Authentication
- Management Features: Centralized Monitoring, Link Status Analytics, Firmware Management, Remote Troubleshooting

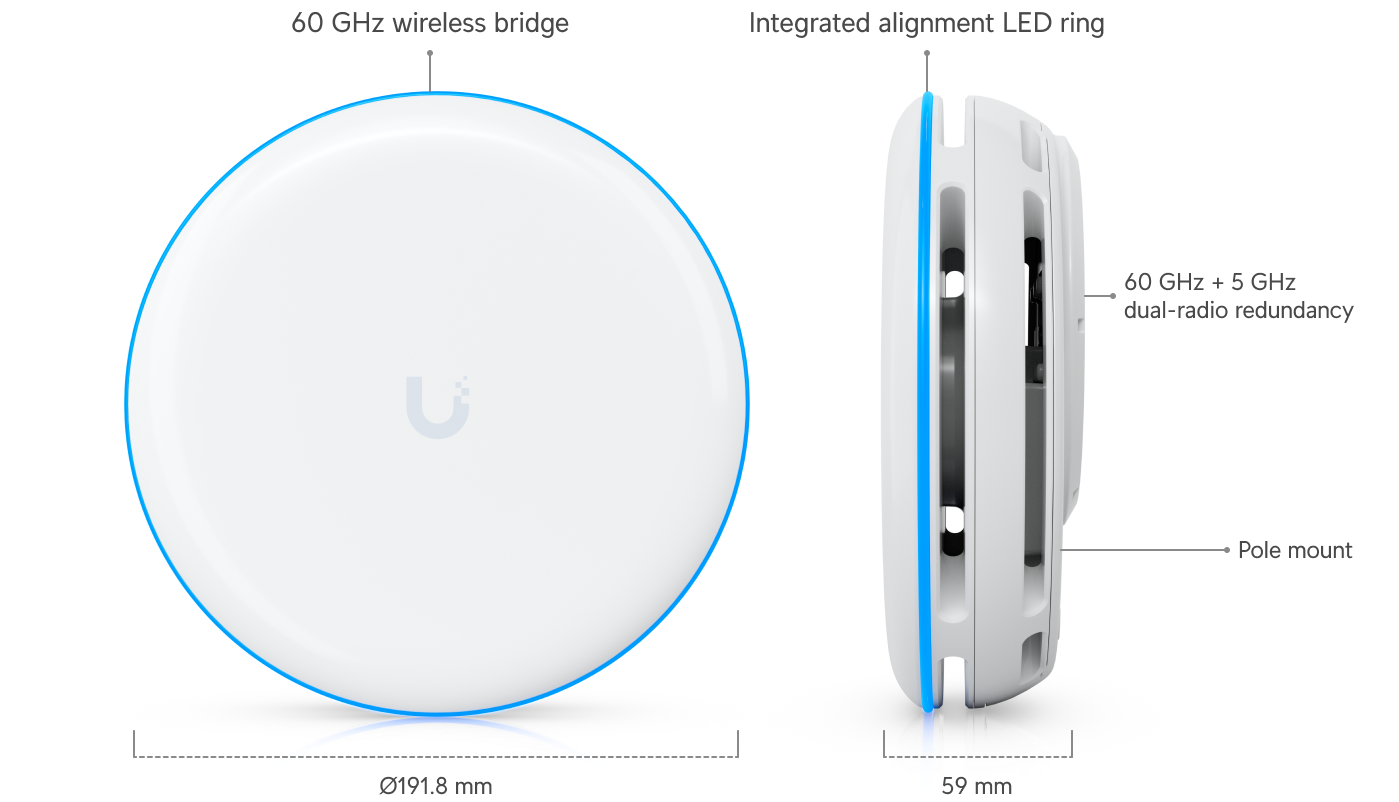

- Design: Rugged Outdoor Wireless Bridge with Integrated High-Gain Directional Antenna and LED Status Indicator
- Compatibility: Fully Integrated with UniFi Network Application and UniFi Ecosystem Devices.
