Description

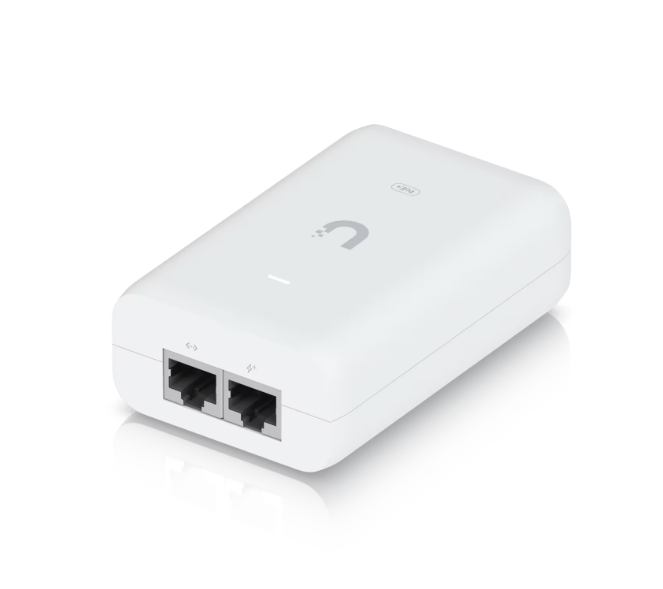

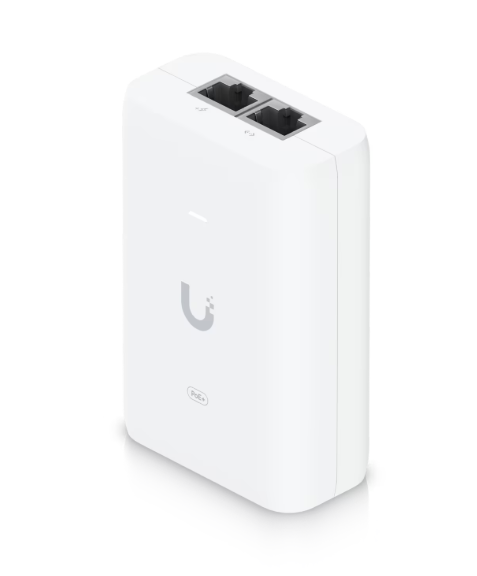

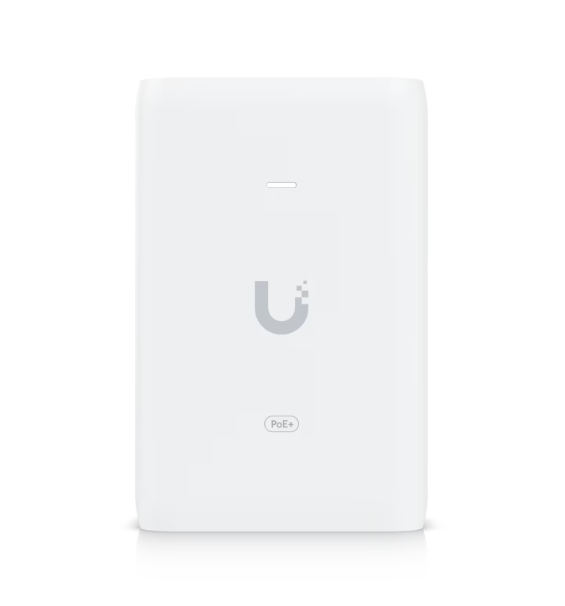

UniFi PoE+ Adapter (30W) (U-PoE+)
The UniFi PoE+ Adapter (30W) (U-PoE+) is a Gigabit Power over Ethernet injector that delivers up to 30W of PoE+ power to compatible UniFi devices. It reduces dependency on PoE switch power and includes surge and overcurrent protection for reliable performance.
Specifications:
-
Model: UniFi PoE+ Adapter (30W) (U-PoE+)
-
Device Type: PoE+ Injector / Adapter
-
Function: Delivers up to 30W of PoE+ power and Gigabit LAN connectivity to PoE+ devices
-
PoE Standard: IEEE 802.3at
-
Max. PoE Output: 30W
-
Networking: 1 x Gigabit LAN port (RJ45)
-
Power Method: AC input (100–240V at 50/60Hz)
-
Output Voltage: 48V DC @ 0.65A
-
Efficiency: 87%
-
Protection: Surge, peak pulse, and overcurrent protection; surge discharge up to 1500A (8/20 μs) power, 36A (10/1000 μs) data
-
Dimensions: 93 x 62 x 35 mm (3.7 x 2.4 x 1.4″)
-
Weight: 156 g (5.5 oz)
-

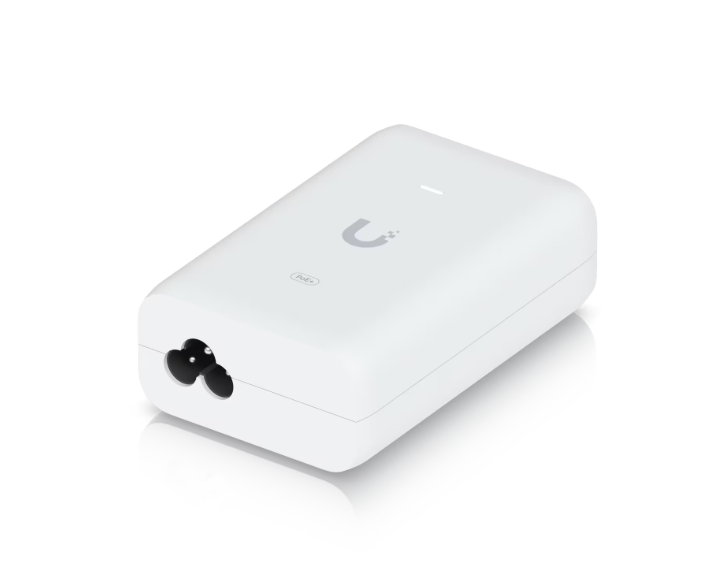

Enclosure Material: White, external form factor with IEC-320 C6 AC connector
-
Use Case: Powering UniFi PoE+ devices (e.g., U6 LR, U6 Enterprise) in wireless mesh applications, or reducing power dependency on PoE switches
-
Operating Temperature: 0 to 40° C (32 to 104° F)
-
Humidity: 10 to 95% noncondensing
-
Certifications: CE, FCC, IC, UL, CCC
-
Management: LED indicator for status monitoring
-
Design: Compact external adapter with shielded RJ45 socket, 2-pair powering (pins 4,5+ and 7,8-), and included power cable
