Wave Access Point Micro (Wave-AP-Micro)

The Wave Access Point Micro (Wave-AP-Micro) is a wide-coverage 60 GHz PtMP access point that delivers 5 Gbps total throughput (2.5 Gbps duplex) with 90° sector coverage. It features a 5 GHz Wi-Fi 6 backup radio for weather-resilient connectivity and supports up to 15 client stations with ranges up to 6 km .

Specifications:

• Model: Wave Access Point Micro (Wave-AP-Micro)

• Device Type: 60 GHz PtMP Access Point

• Function: High-capacity wireless connectivity with wide 90° sector coverage

• Networking: (1) 1/2.5 GbE RJ45 port

• Processor: Quad-core ARM Cortex-A53 at 1.4 GHz

• Memory: 512 MB DDR3L

• Total Throughput: 5 Gbps (2.5 Gbps duplex)

• Supported Clients: Up to 15 stations

• Max. Range: Up to 6 km (with Wave Pro or Wave Long-Range); up to 4 km (with Wave Nano)

• Backup Radio: 5 GHz 802.11ax (Wi-Fi 6), up to 800 Mbps

• Antenna Gain: 60 GHz: 20 dBi; 5 GHz: 13.5 dBi

• Beamwidth: Azimuth: 90° (60 GHz); Elevation: 7° (60 GHz)

• Max. Power Consumption: 24W

• Power Method: Passive PoE (48V DC adapter included)

• Weatherproofing: IPX6-rated (outdoor use)

• Operating Temperature: -40 to 60° C (-40 to 140° F)

• Mounting: Pole mount (35 to 60 mm diameter)

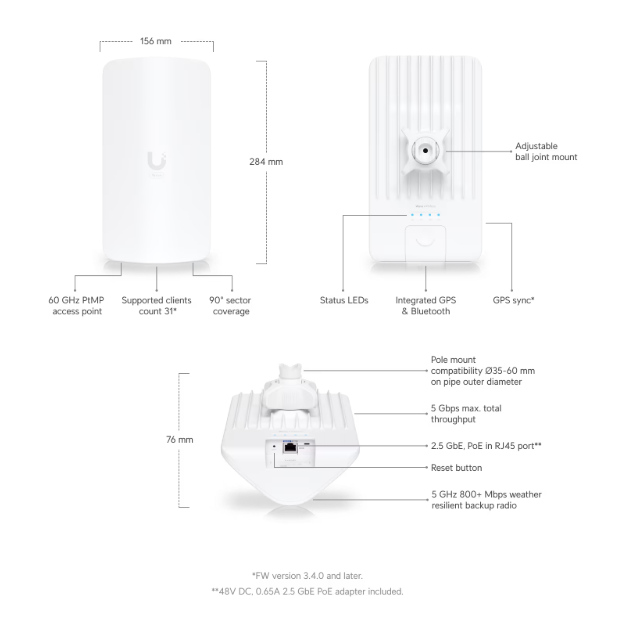

• Dimensions: 284 x 156 x 76 mm (11.2 x 6.1 x 3″)

• Weight: 1.3 kg (2.87 lb)

• Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate

• Use Case: Point-to-multipoint connectivity for high-density deployments, building-to-building links, and enterprise campus networks

• Security Features: WPA2-PSK (AES) encryption

• Management: Managed via UISP application (web and mobile); Bluetooth setup support

• Design: Compact outdoor unit with integrated GPS, 90° sector coverage, and 5 GHz backup radio for automatic failover

• Compatibility: Compatible with Wave Pro, Wave Long-Range, Wave Nano, and Wave Pico client devices
