Wave Long-Range (Wave-LR)

The Wave Long-Range (Wave-LR) is a 60 GHz PtMP station powered by Wave Technology, featuring a high-performance 5 GHz Wi-Fi 6 backup radio to ensure uninterrupted connectivity. It provides up to 2 Gbps total throughput (1 Gbps duplex) and supports link ranges up to 8 km when paired with a Wave AP, making it ideal for demanding ISP and enterprise deployments .

Specifications:

• Model: Wave Long-Range (Wave-LR)

• Device Type: 60 GHz PtMP Station

• Function: High-capacity wireless connectivity with weather-resilient 5 GHz backup

• Networking: 1 x GbE RJ45 port

• Processor: Dual-core ARM Cortex-A53 at 1 GHz

• Memory: 512 MB DDR3L

• Max. Power Consumption: 20W

• Power Method: Passive PoE 2-pair (44–54V DC) or 4-pair; 48V DC PoE adapter included

• Weatherproofing: IPX6-rated (outdoor use)

• Operating Temperature: -40 to 60° C (-40 to 140° F)

• Mounting: Pole mount (25 to 76.2 mm diameter) with precision alignment mount included

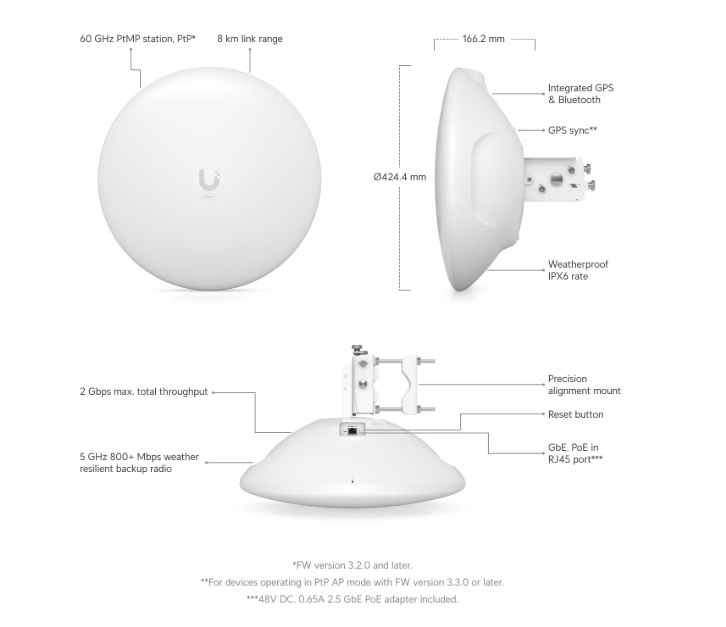

• Dimensions: ⌀424.4 x 166.2 mm (⌀16.7 x 6.5″)

• Weight: Without mount: 2.59 kg (5.7 lb); With mount: 3.79 kg (8.4 lb)

• Enclosure Material: UV-stabilized plastic with stainless steel mount

• Use Case: Point-to-multipoint bridging for connecting remote sites, ISP last-mile connectivity, and enterprise campus networks

• Security Features: WPA2-PSK (AES) encryption

• Management: Managed via UISP application (version 1.4.5 and later), web UI, Bluetooth setup, SNMP

• Design: Compact outdoor unit with integrated GPS, Bluetooth, precision alignment mount, and 5 GHz Wi-Fi 6 backup radio with 22 dBi gain

• Compatibility: Compatible with Wave AP (up to 8 km) and Wave AP Micro (up to 6 km); supports PtMP station and PtP modes (FW 3.2.0+)
