Wave Pico (Wave-Pico)

The Wave Pico (Wave-Pico) is a lightweight, compact 60 GHz PtMP station powered by Wave Technology . It delivers up to 2 Gbps total throughput (1 Gbps duplex) with a 5 GHz Wi-Fi 6 backup radio for reliable connectivity, making it ideal for short-range PtMP or PtP deployments .

Specifications:

• Model: Wave Pico (Wave-Pico)

• Device Type: 60 GHz PtMP Station

• Function: High-capacity wireless connectivity with 5 GHz Wi-Fi 6 backup radio

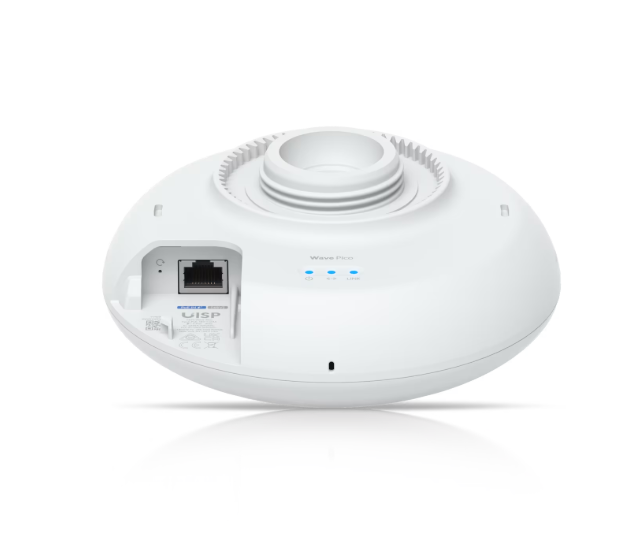

• Networking: 1 x GbE RJ45 port

• Processor: Dual-core ARM Cortex-A53 at 1 GHz

• Memory: 512 MB DDR3L

• Total Throughput: 2 Gbps (1 Gbps duplex)

• Max. Range: PtMP: up to 1.3 km (with Wave AP), up to 0.9 km (with Wave AP Micro); PtP: up to 1.5 km

• Antenna Gain: 60 GHz: 27.7 dBi; 5 GHz: 9 dBi

• Beamwidth: Azimuth: 3 dB 6°; Elevation: 3 dB 6°

• Max. Power Consumption: 10W

• Power Method: Passive PoE (48V DC adapter included)

• Weatherproofing: IPX6-rated

• Operating Temperature: -40 to 60° C (-40 to 140° F)

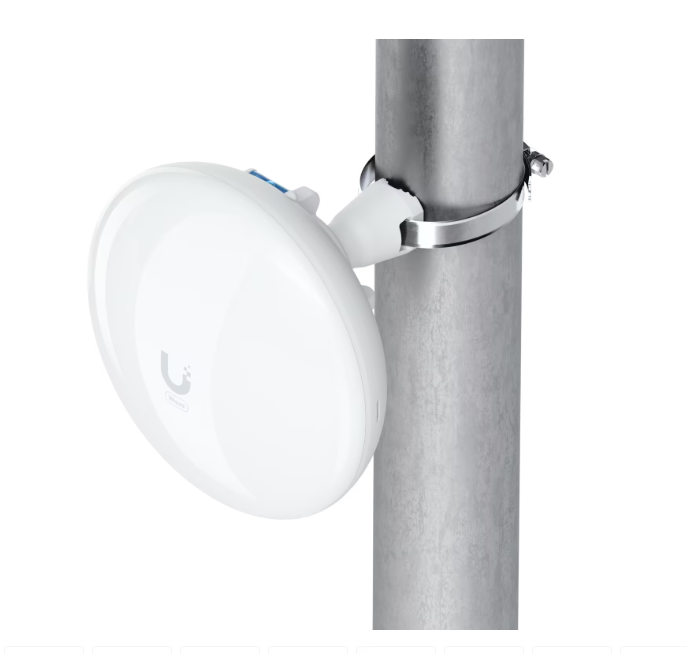

• Mounting: Pole mount (20 to 53.1 mm diameter)

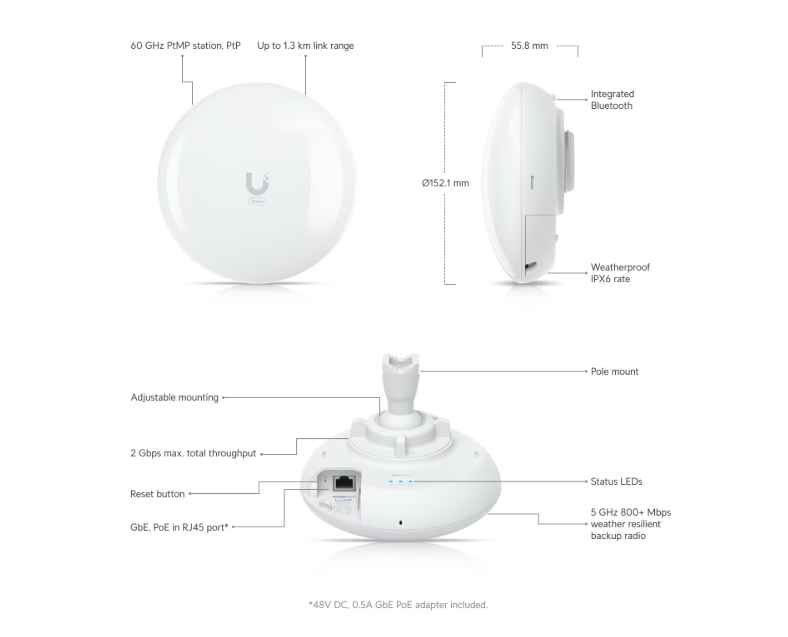

• Dimensions: ⌀152.1 x 55.8 mm (⌀6 x 2.2″)

• Weight: Without mount: 347 g; With mount: 409 g

• Enclosure Material: UV-stabilized polycarbonate

• Use Case: Short-range PtMP and PtP connectivity for ISP last-mile, enterprise networks, and building-to-building links

• Security Features: WPA2-PSK (AES) encryption

• Management: Managed via UISP application (web and mobile); Bluetooth setup support

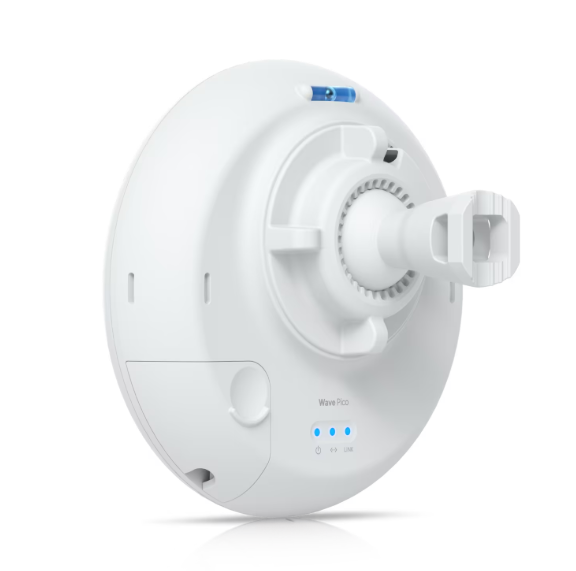

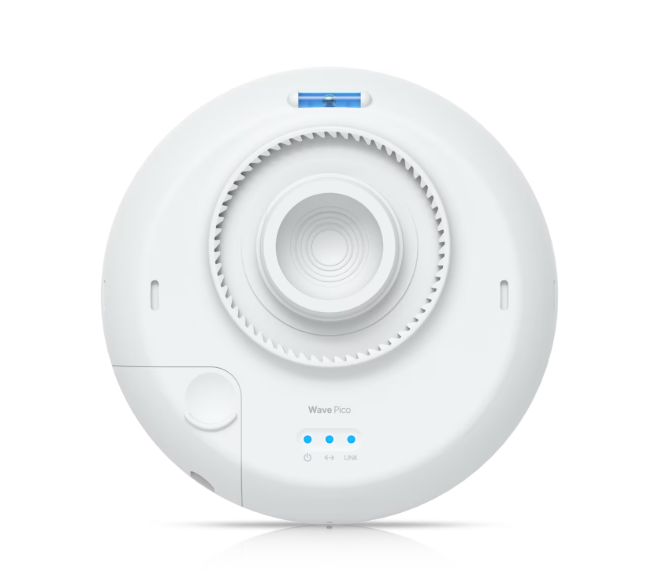

• Design: Compact outdoor unit with integrated Bluetooth, 5 GHz Wi-Fi 6 backup radio, and LED indicators (Power, Ethernet, Link)

• Compatibility: Compatible with Wave AP, Wave AP Micro, Wave AP Gen2; supports PtMP station and PtP modes
