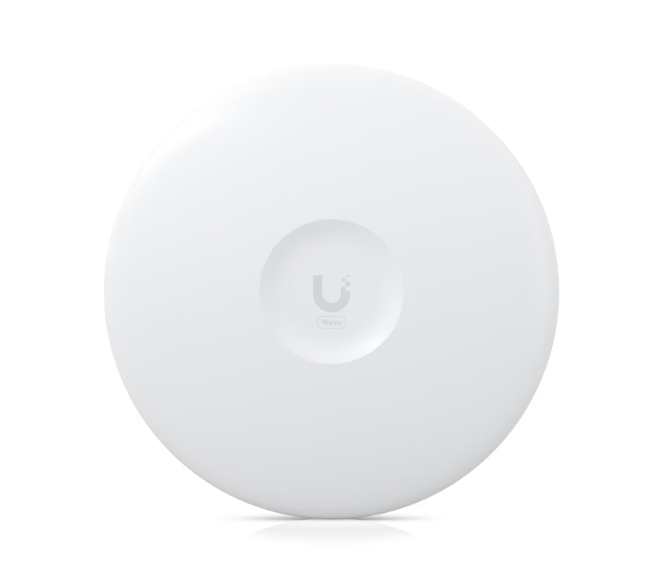

Wave Pro (Wave-Pro)

The Wave Pro (Wave-Pro) is a high-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links . It features an integrated 5 GHz weather-resistant backup radio for uninterrupted connectivity, delivering 5.4 Gbps total throughput (2.7 Gbps duplex) . With support for up to 15 client stations and long-range capabilities, it is built for demanding ISP and enterprise deployments .

Specifications:

• Model: Wave Pro (Wave-Pro)

• Device Type: 60 GHz PtMP Access Point / Client Station

• Function: High-capacity wireless connectivity for long-distance PtP and PtMP links

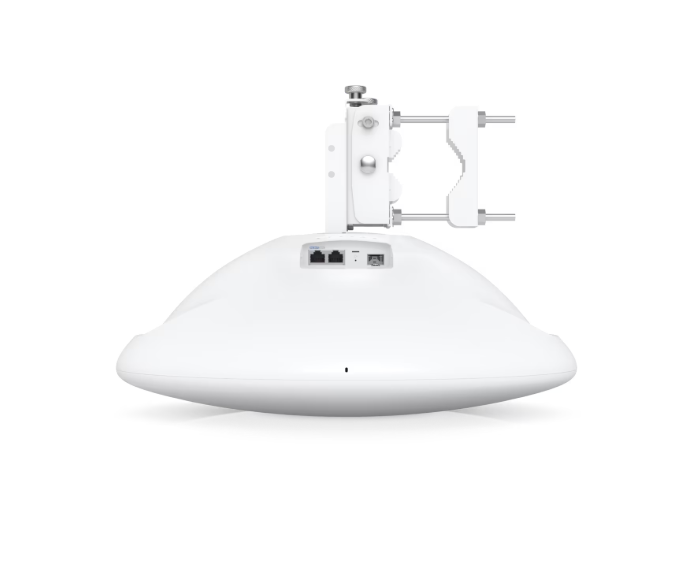

• Networking: (2) 2.5 GbE RJ45 ports, (1) 10G SFP+ port

• Processor: Quad-core ARM Cortex-A53 at 1.4 GHz

• Memory: 512 MB DDR3L

• Total Throughput: 5.4 Gbps (2.7 Gbps duplex)

• Max. Link Range: PtP: Up to 15 km; PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)

• Backup Radio: 5 GHz, up to 800 Mbps

• Antenna Gain: 46 dBi

• Max. Power Consumption: 26W

• Power Method: Passive PoE (48V DC adapter included)

• Weatherproofing: IPX6-rated

• Operating Temperature: -40 to 60° C (-40 to 140° F)

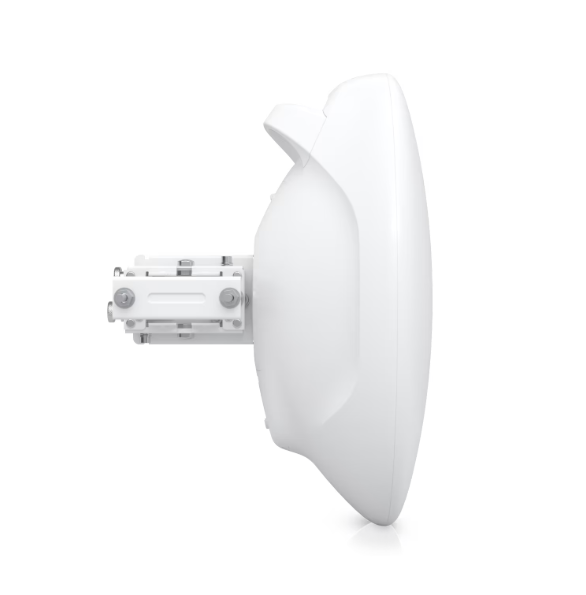

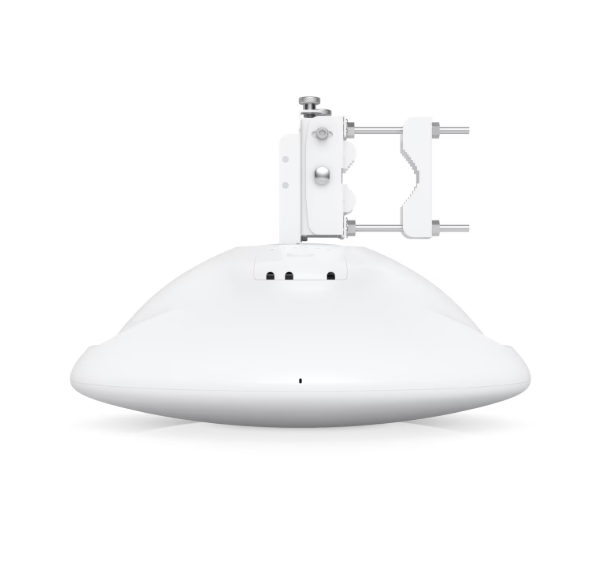

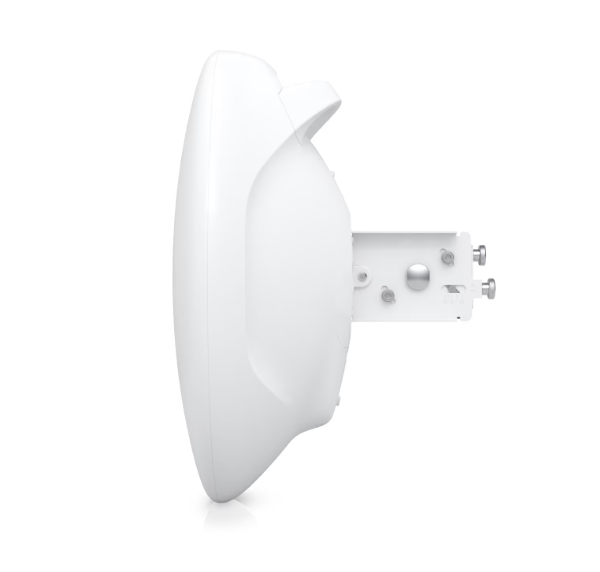

• Mounting: Pole mount (25 to 76.2 mm diameter)

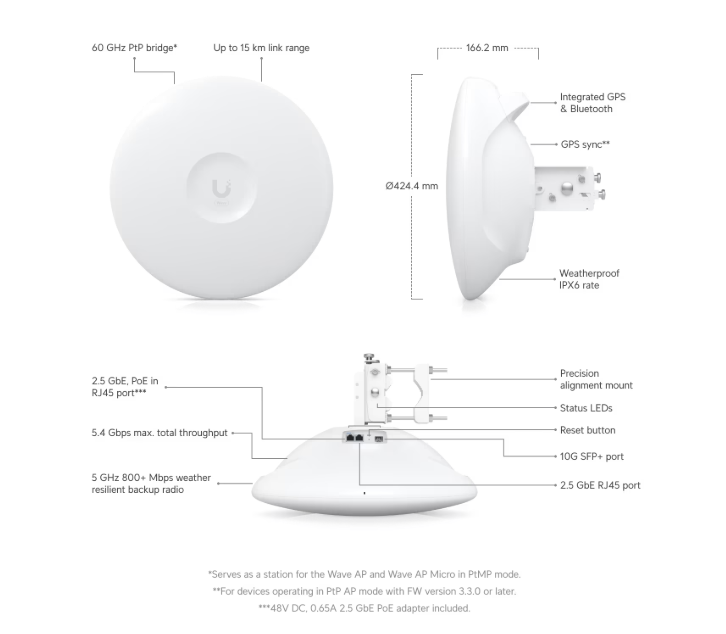

• Dimensions: ⌀424.4 x 166.2 mm (⌀16.7 x 6.5″)

• Weight: Without mount: 2.8 kg (6.2 lb); With mount: 4 kg (8.8 lb)

• Enclosure Material: Aluminum alloy, UV-stabilized plastic

• Use Case: Point-to-point and point-to-multipoint bridging for connecting remote sites, ISP last-mile connectivity, and enterprise campus networks

• Security Features: WPA2-PSK (AES) encryption

• Management: Managed via UISP application (web and mobile); integrated GPS and Bluetooth for simplified setup; SNMP support

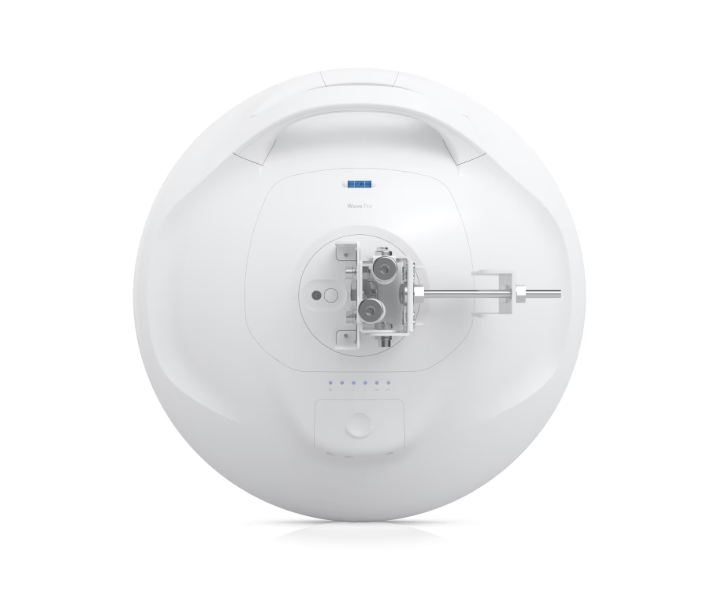

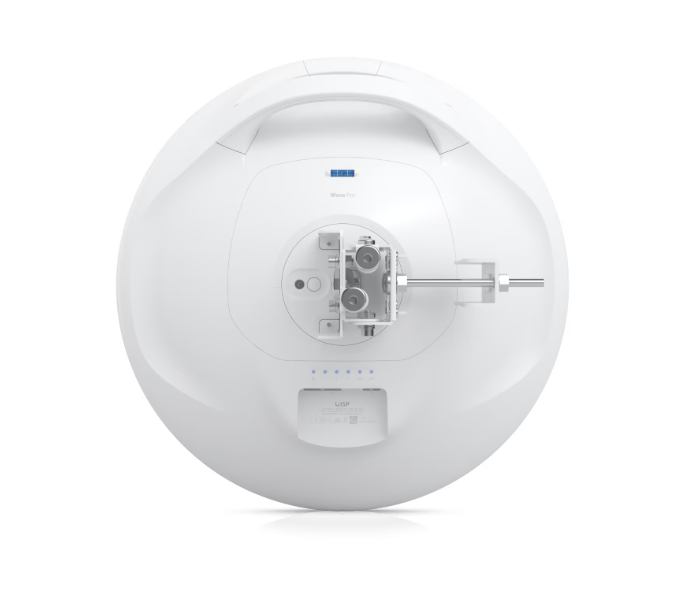

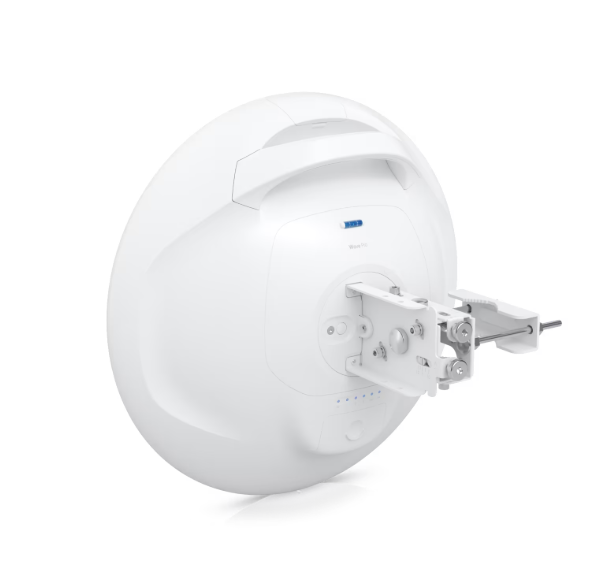

• Design: Compact outdoor unit with ergonomic transportation handle, precision alignment mount, and LED indicators for power, Ethernet, GPS, and link status

• Compatibility: Compatible with Wave AP and Wave AP Micro; supports PtMP station and PtP modes
