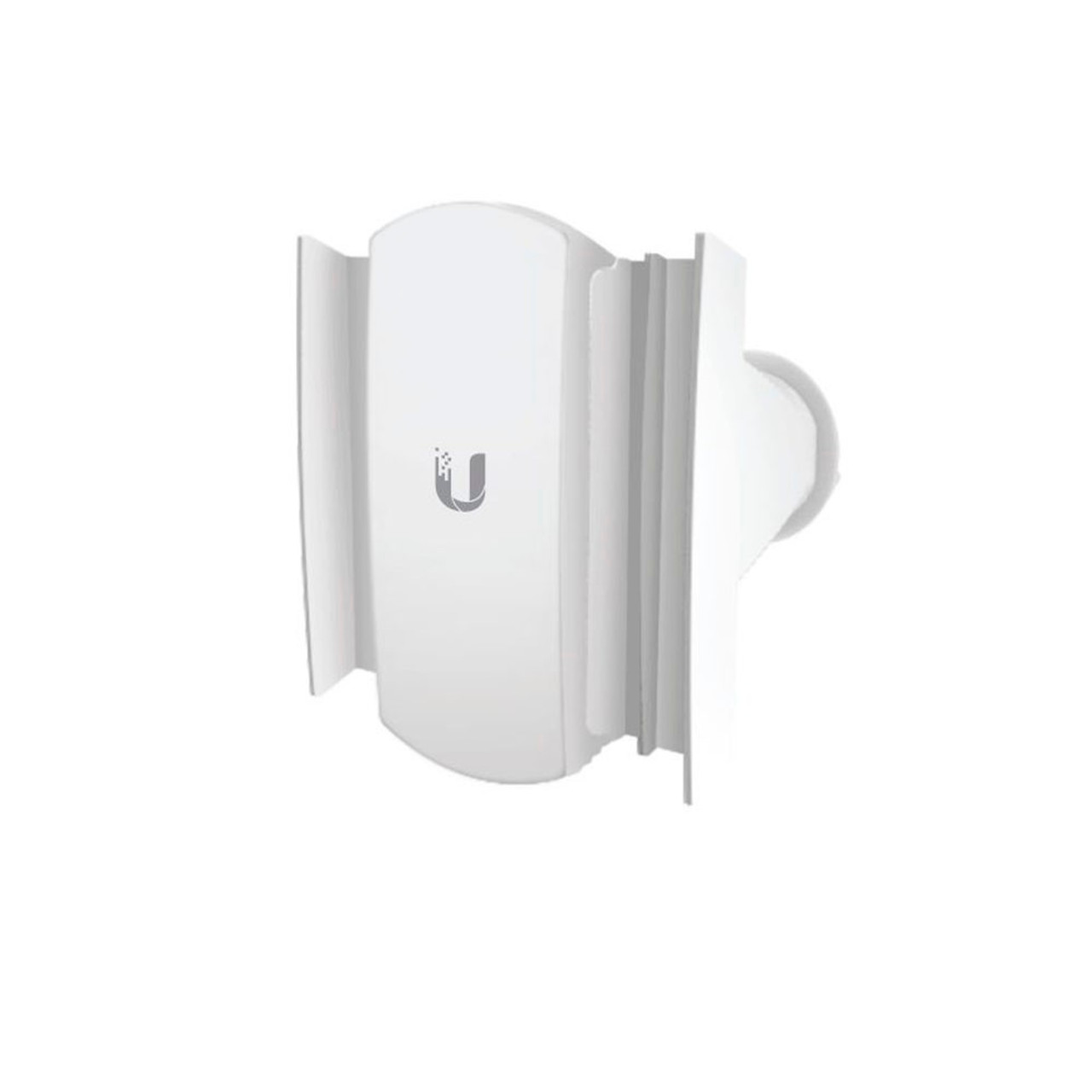

Ubiquiti airMAX PrismStation Horn 60°(Horn-5-60)

←
Get Your Custom Quote!

A 5 GHz horn antenna with a 60° beamwidth, offering high isolation and low side-lobe radiation. Designed for use with Ubiquiti radios like IsoStation, PrismStation, and airFiber LTU, it is ideal for clustered or co-located deployments.

SPECIFICATIONS

• Operating Frequency: 5.15 · 5.85 GHz

• Antenna Gain: 16 dBi

• Beamwidth:

  • Horizontal/Vertical beamwidth: 60° each

  • Elevation beamwidth: 30°

• Polarization: Dual-linear

• Cross-Polarization Isolation: 17 dB

• VSWR (Max): 2:1

• Dimensions: 161.6 × 173.3 × 170.9 mm

• Weight: 720 g

• Wind Survivability: Withstands speeds up to 200 km/h

• Wind Load: Generates 50 N at 200 km/h

• Mounting System: Twist-lock HornConnector—compatible with IsoStation, PrismStation, airFiber LTU
