Ubiquiti airMAX Omni Antenna AMO-2G13

←
Get Your Custom Quote!

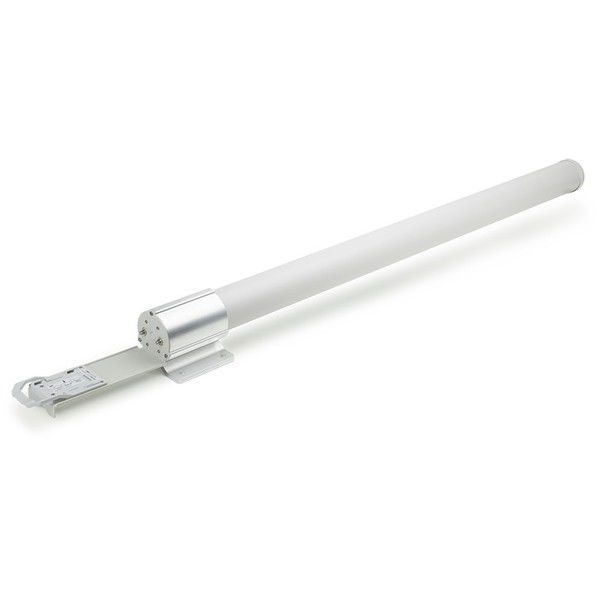

The Ubiquiti AMO-2G13 is a 2.4 GHz airMAX Omni Antenna designed for Point-to-MultiPoint (PtMP) applications. It features a 13 dBi gain and provides 360° coverage, making it ideal for broad-area wireless deployments. The antenna is engineered to seamlessly integrate with RocketM radios, offering a robust and flexible base station solution.

SPECIFICATIONS

• Frequency Range: 2.35 – 2.55 GHz

• Gain: 13 dBi

• Polarization: Dual Linear

• Cross-Polarization Isolation: ≥ 25 dB

• VSWR: 1.7:1 max

• Elevation Beamwidth: 7°

• Electrical Downtilt: 2°

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 71.2 N @ 160 km/h (16 lbf @ 100 mph)

• Dimensions: 1390 x 122 x 105 mm (54.72 x 4.8 x 4.13″)

• Weight: 2.4 kg (5.29 lb)

• Mounting: Universal Pole Mount with Rocket Bracket and Weatherproof RF Jumpers Included

• Compliance: ETSI Specification EN 302 326 DN2
