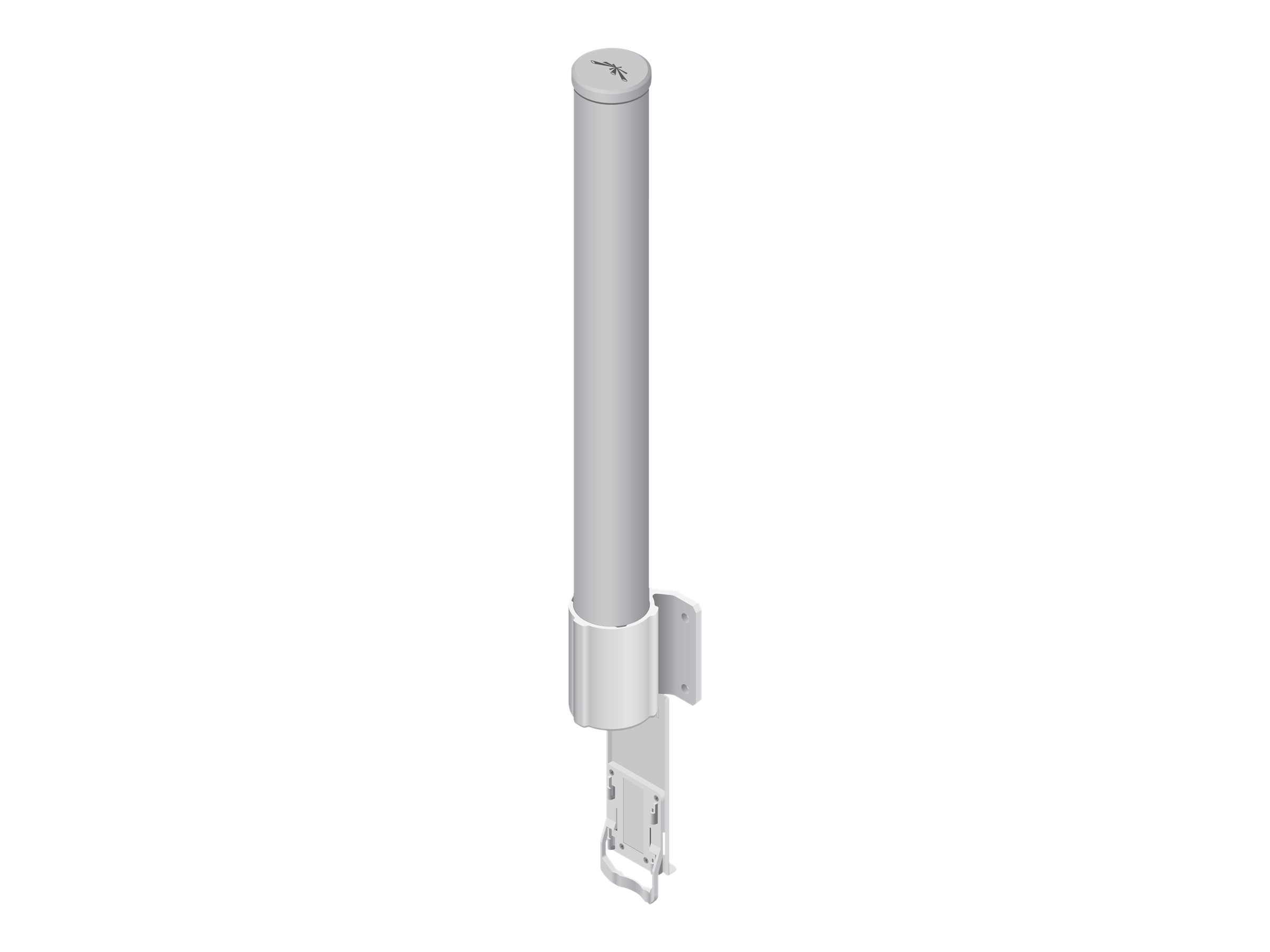

Ubiquiti airMAX Omni Antenna AMO-2G10

←
Get Your Custom Quote!

The Ubiquiti AMO-2G10 is a 2.4 GHz airMAX Omni Antenna designed for Point-to-MultiPoint (PtMP) applications. It features a 10 dBi gain and provides 360° coverage, making it ideal for broad-area wireless deployments. The antenna is engineered to seamlessly integrate with RocketM radios, offering a robust and flexible base station solution.

SPECIFICATIONS

• Frequency Range: 2.35 – 2.55 GHz

• Gain: 10 dBi

• Polarization: Dual Linear

• Cross-Polarization Isolation: ≥ 25 dB

• VSWR: 1.7:1 max

• Elevation Beamwidth: 12°

• Electrical Downtilt: 4°

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 62.3 N @ 160 km/h (14 lbf @ 100 mph)

• Dimensions: 1030 x 122 x 84 mm (40.6 x 4.8 x 3.3″)

• Weight: 2.1 kg (4.6 lb)

• Mounting: Universal Pole Mount with Rocket Bracket and Weatherproof RF Jumpers Included
