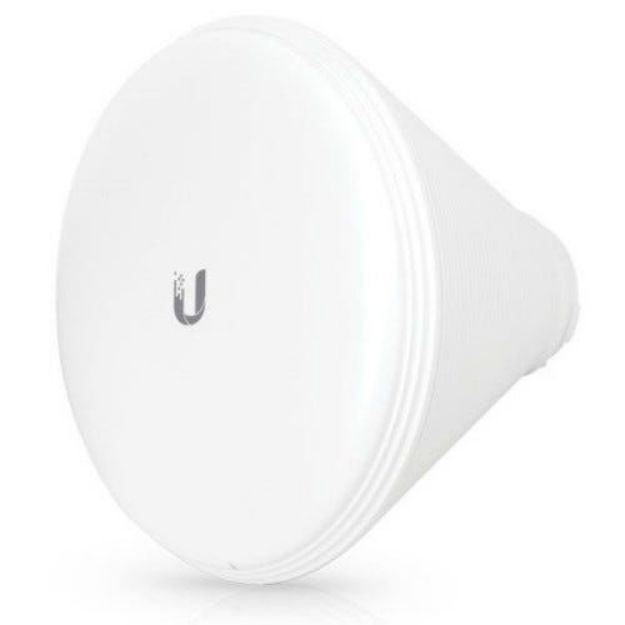

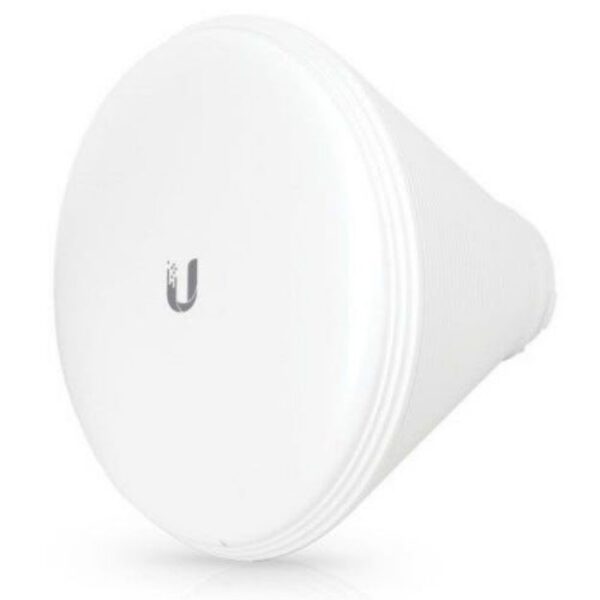

Ubiquiti airMAX PrismStation / IsoStation Horn‑5‑30

←
Get Your Custom Quote!

A 5 GHz, 30° beamwidth horn antenna designed to attach to radios like IsoStation, PrismStation, and airFiber LTU. It provides focused, high-gain coverage while minimizing interference and side‑lobes, making it ideal for dense wireless deployments with strong co‑location performance.

SPECIFICATIONS

• Frequency Range: 5.15 GHz to 5.85 GHz

• Antenna Gain: 19 dBi

• Beamwidth: 30° horizontal and 30° vertical

• Polarization: Dual-linear (horizontal and vertical)

• Cross-Polarization Isolation: 17 dB

• VSWR (Max): 1.7:1

• Mounting Interface: Twist-lock HornConnector system

• Compatible Devices: IsoStation 5AC, IsoStation M5, PrismStation 5AC, airFiber LTU

• Dimensions: 221.4 mm diameter × 184.2 mm depth

• Weight: 1.1 kg

• Wind Survivability: Up to 200 km/h

• Wind Load: 56 Newtons at 200 km/h
