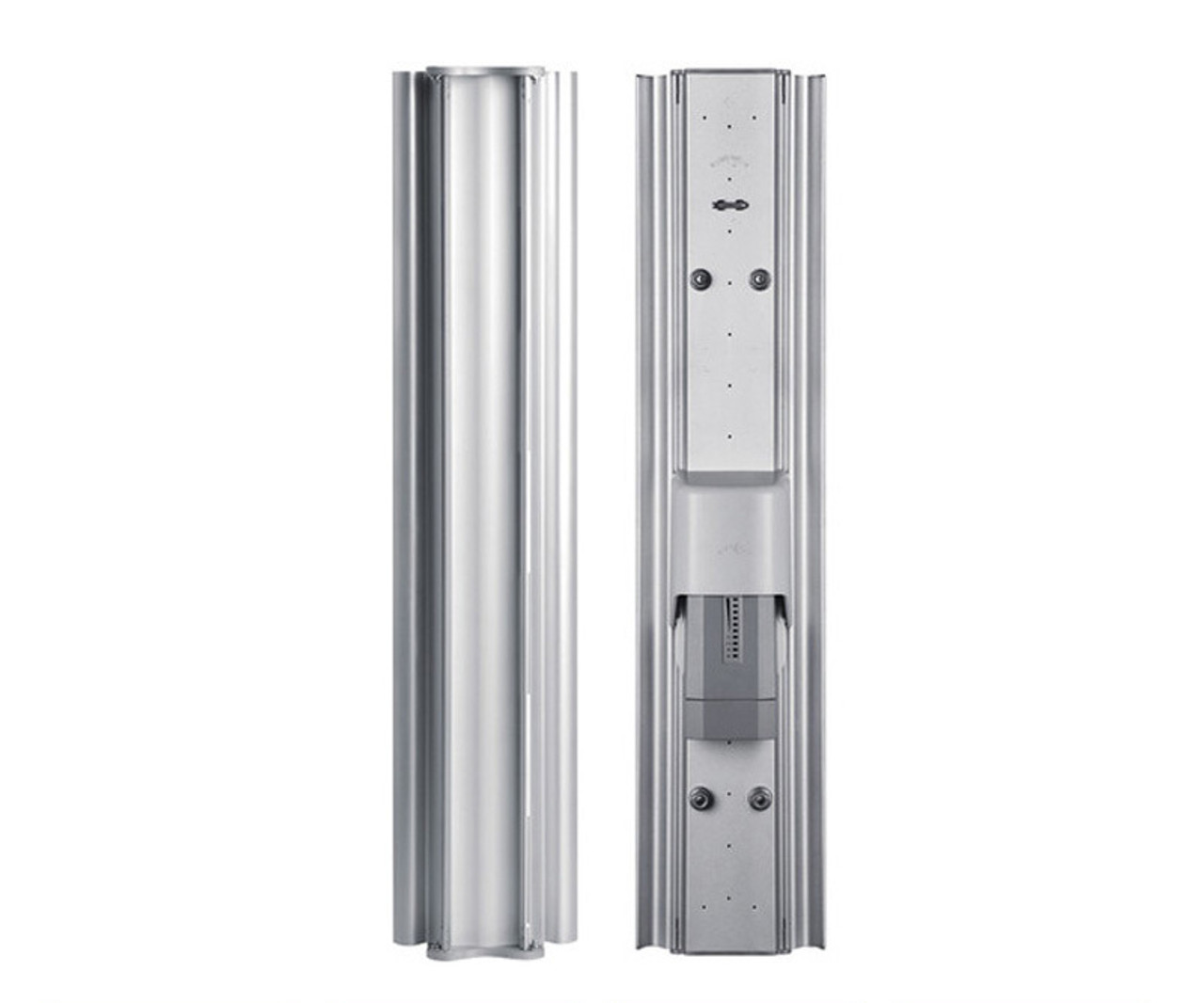

Ubiquiti airMAX Titanium Sector Antenna AM-M-V5G-Ti

←
Get Your Custom Quote!

The Ubiquiti AM-M-V5G-Ti is a 5 GHz airMAX Titanium Sector Antenna designed for Point-to-MultiPoint (PtMP) applications. It features adjustable beamwidth options of 60°, 90°, and 120°, allowing for flexible deployment configurations. With advanced RF isolation and a rugged design, it ensures optimal performance in high-density environments and co-location deployments.

SPECIFICATIONS

• Frequency Range: 5.45 – 5.85 GHz

• Gain:

  • 17 dBi @ 60°

  • 16 dBi @ 90°

  • 15 dBi @ 120°

• Beamwidth Angles: 60° / 90° / 120°

• Elevation Beamwidth: 8°

• Electrical Downtilt: 3°

• Polarization: Dual Linear

• Cross-Polarization Isolation: ≥ 25 dB

• VSWR: 1.7:1 max

• RF Connectors: 2 x RP-SMA (weatherproof)

• Dimensions: 385 x 149 x 76 mm

• Weight: 3.25 kg (with brackets)
