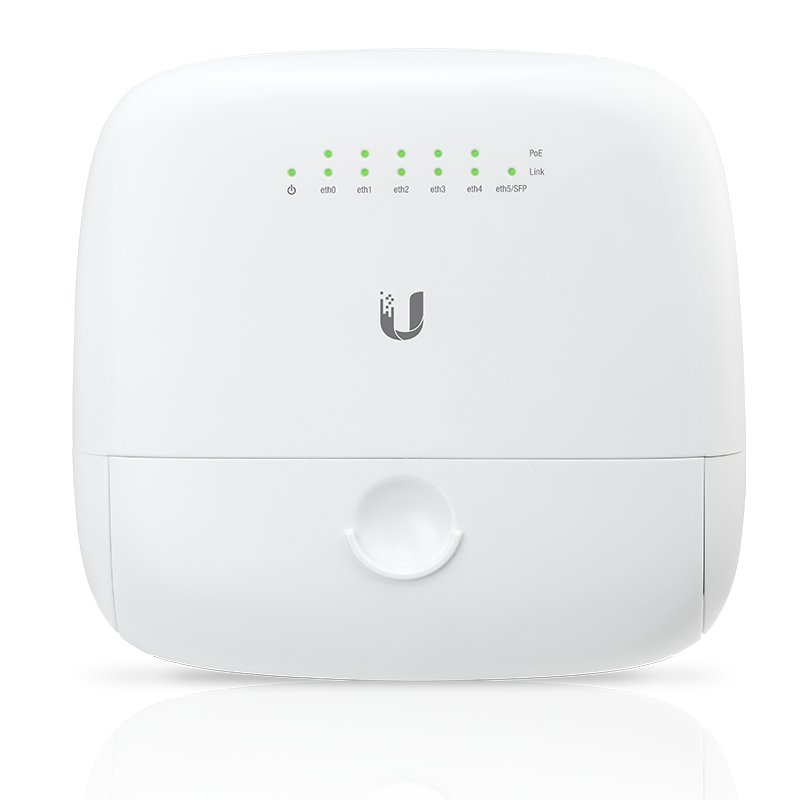

Ubiquiti EdgePoint R6 (EP-R6-U)

←
Get Your Custom Quote!

The Ubiquiti EdgePoint R6 (EP-R6-U) is an outdoor router designed for WISP (Wireless Internet Service Provider) applications. It combines advanced routing capabilities with fiber backhaul support and integrated surge protection via FiberProtect™. The device features a rugged, weather-resistant enclosure suitable for pole-mounted installations, reducing equipment clutter and simplifying deployments.

SPECIFICATIONS

• Processor: Dual-core 880 MHz MIPS1004Kc

• System Memory: 256 MB DDR3-1600 RAM

• Flash Storage: 256 MB NAND

• Networking Interfaces:

  • (5) 10/100/1000 Mbps RJ45 Ethernet ports

  • (1) 1 Gbps SFP port

• Power Input Options:

  • 24V DC via terminal block

  • 24V Passive PoE on eth0

• PoE Output:

  • (5) 24V Passive PoE ports (0.7A max per port)

• Max Power Consumption: 7W (excluding PoE output)

• Enclosure: UV-resistant polycarbonate, outdoor-rated

• Mounting: Pole mount (hardware included)

• Dimensions: 188.6 x 177.1 x 49.8 mm

• Weight: 605 g

• Operating Temperature: -40°C to 65°C

• Operating Humidity: 10% to 90% non-condensing

• Certifications: CE, FCC, IC

• Compliance: NDAA Compliant

• Region Version: U (Universal model)
