Description

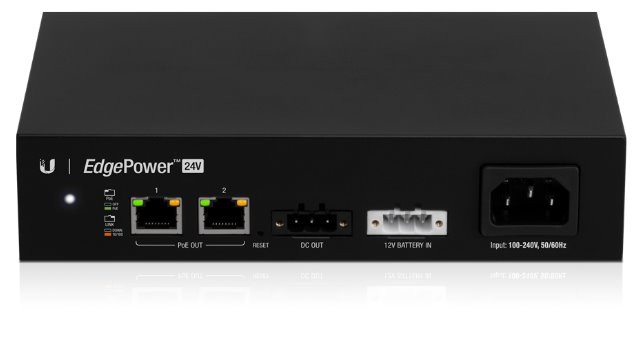

Ubiquiti EdgePower 24V 72W (EP-24V-72W)

←
Get Your Custom Quote!

The Ubiquiti EdgePower 24V 72W (EP-24V-72W) is a compact, UPS-capable DC power supply designed for wireless ISP (WISP) deployments. It delivers 24V DC output with integrated 24V passive PoE and supports a 12V lead-acid battery for backup power (battery not included). The device features a web-based management interface and is compatible with Ubiquiti’s UISP (formerly UNMS) platform for remote monitoring and control.

SPECIFICATIONS

• Dimensions: 192 x 43.7 x 115 mm (7.6 x 1.7 x 4.5″)

• Weight: 650 g (1.4 lb)

• Networking Interface: 2 × 10/100 Mbps RJ45 ports

• Management Interface: Ethernet In-Band

• Power Method: 100–240V AC, 50/60 Hz, universal input

• Battery Input: 12V DC lead-acid battery (not included)

• PoE Output: 2 × 24V DC passive PoE (Pins 4, 5+; 7, 😎

• DC Output: 24V, 3A

• Max. Power Consumption: System: 2W; Output: 72W

• LED Indicators: System status; RJ45 data ports: PoE, link/activity

• ESD/EMP Protection: Air: ±12kV, Contact: ±12kV

• Operating Temperature: 0 to 40°C (32 to 104°F)

• Operating Humidity: 10% to 90% non-condensing
