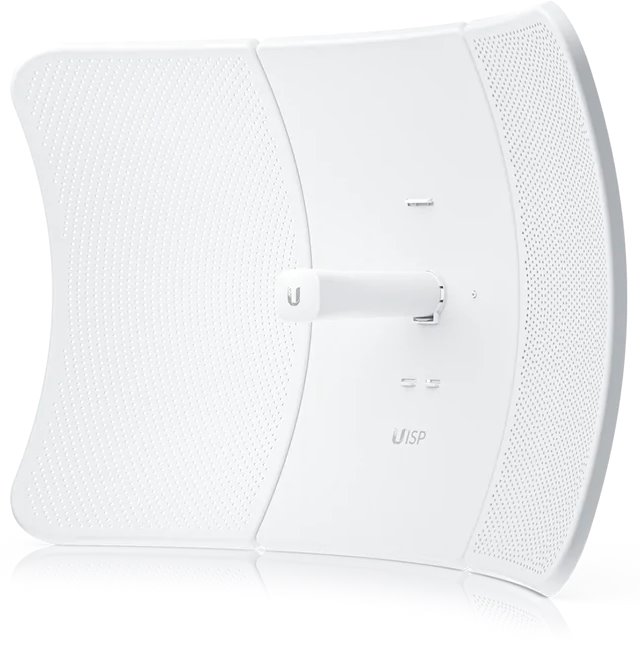

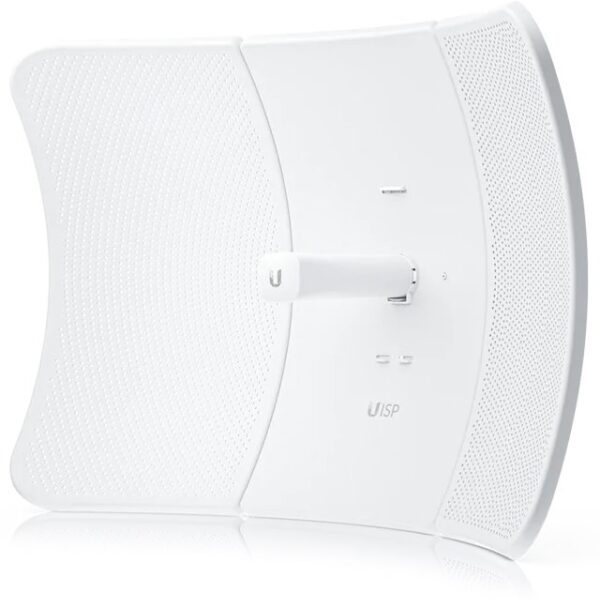

Ubiquiti LiteBeam 5AC Extreme Range EU (LBE-5AC-XR-EU)

←
Get Your Custom Quote!

The LBE-5AC-XR-EU is the EU version of Ubiquiti’s high-performance LiteBeam 5AC XR. It is an ultra-long-range, directional airMAX® AC CPE designed for point-to-point (PtP) and point-to-multipoint (PtMP) outdoor wireless bridging. With a narrow beamwidth and extreme range capability, it’s ideal for rural connectivity, ISP backhauls, and remote installations across Europe.

SPECIFICATIONS

• Processor: Atheros MIPS 74Kc, 720 MHz

• Memory: 64 MB DDR2

• Interface: 1 x 10/100/1000 Mbps Ethernet Port

• Frequency Range (EU): 5150 – 5875 MHz (subject to EU country limits)

• Max. Power Consumption: 8.5 W

• Antenna Gain: 26 dBi

• Beamwidth: 2° (very narrow for focused long-range links)

• Polarization: Dual Linear

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)

• Mounting: Includes pole mount kit

• Operating Temperature: -40 to 70°C

• Wind Survivability: 200+ km/h

• Dimensions: 512.5 x 384.4 x 258.3 mm

• Weight: 920 g
