Description

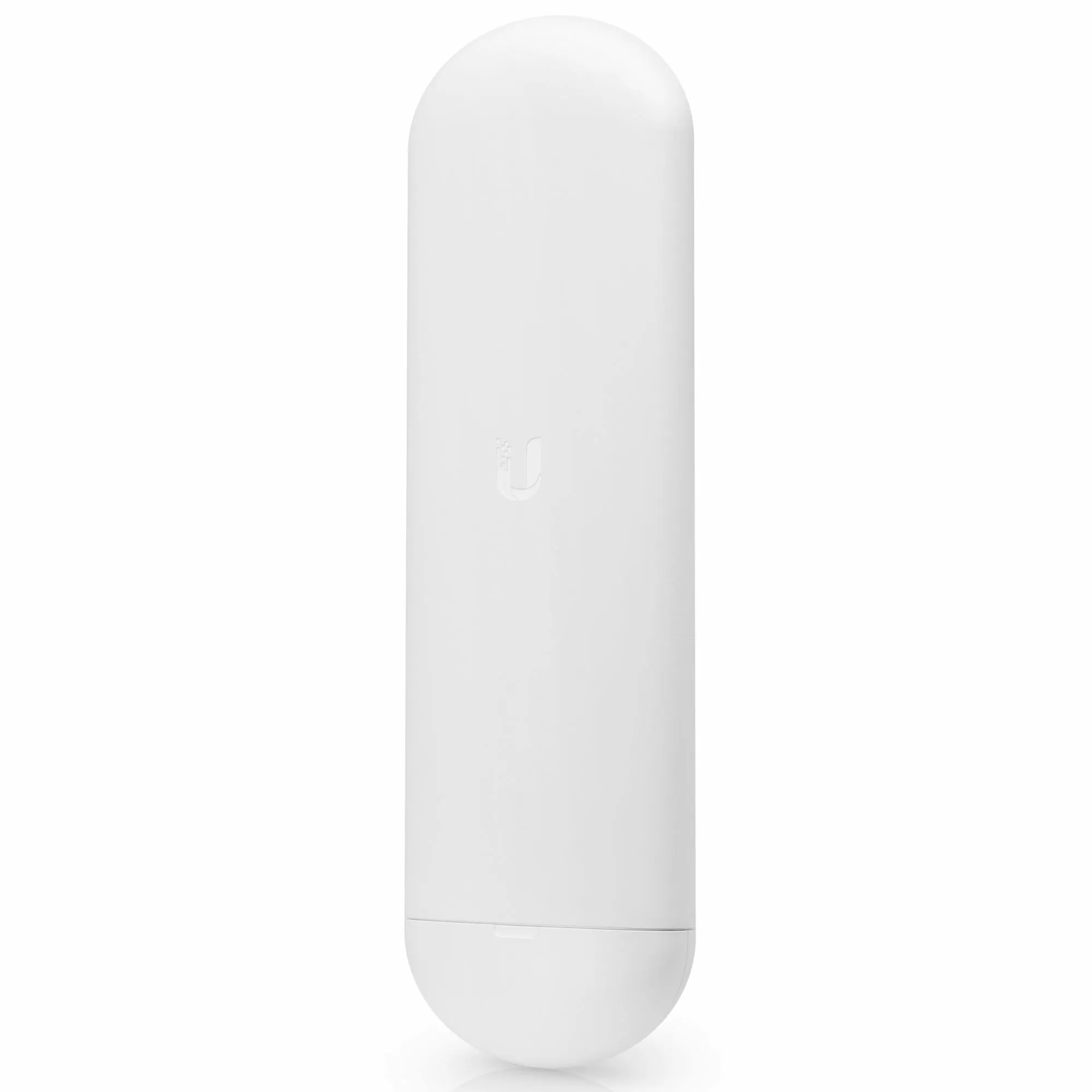

Ubiquiti NanoStation 5AC (NS-5AC-U)

←
Get Your Custom Quote!

The NanoStation 5AC (US version) is a compact, outdoor wireless device designed for creating high-speed point-to-point or point-to-multipoint links. It features integrated 5 GHz 802.11ac Wi-Fi, directional antenna, and two Gigabit ports. Perfect for outdoor connectivity between buildings or remote surveillance setups.

SPECIFICATIONS

• Model Code: NS-5AC-U

• Region: U.S. version (complies with FCC regulations)

• Frequency Band: 5 GHz (802.11ac)

• Max Throughput: Up to 450+ Mbps

• Antenna Gain: 16 dBi

• Beamwidth: 45° (H + V)

• Wireless Modes: Access Point, Station, WDS

• Processor: Atheros MIPS 74Kc, 560 MHz

• Memory: 64 MB DDR2 RAM

• Ethernet Ports: 2 × 10/100/1000 Mbps

  • One with PoE passthrough

• Power Supply:

  • 24V Passive PoE (24V, 0.5A adapter included)

• Max Power Consumption: 8.5 W

• Mounting: Pole-mount kit included

• Dimensions: 257 × 84 × 41 mm

• Weight: 233 g

• Enclosure: Outdoor UV-resistant plastic

• Operating Temperature: –40 to +70°C

• Surge Protection: ±24 kV ESD

• Configuration:

  • Web-based UI via airOS

  • Mobile app (UISP) setup supported
