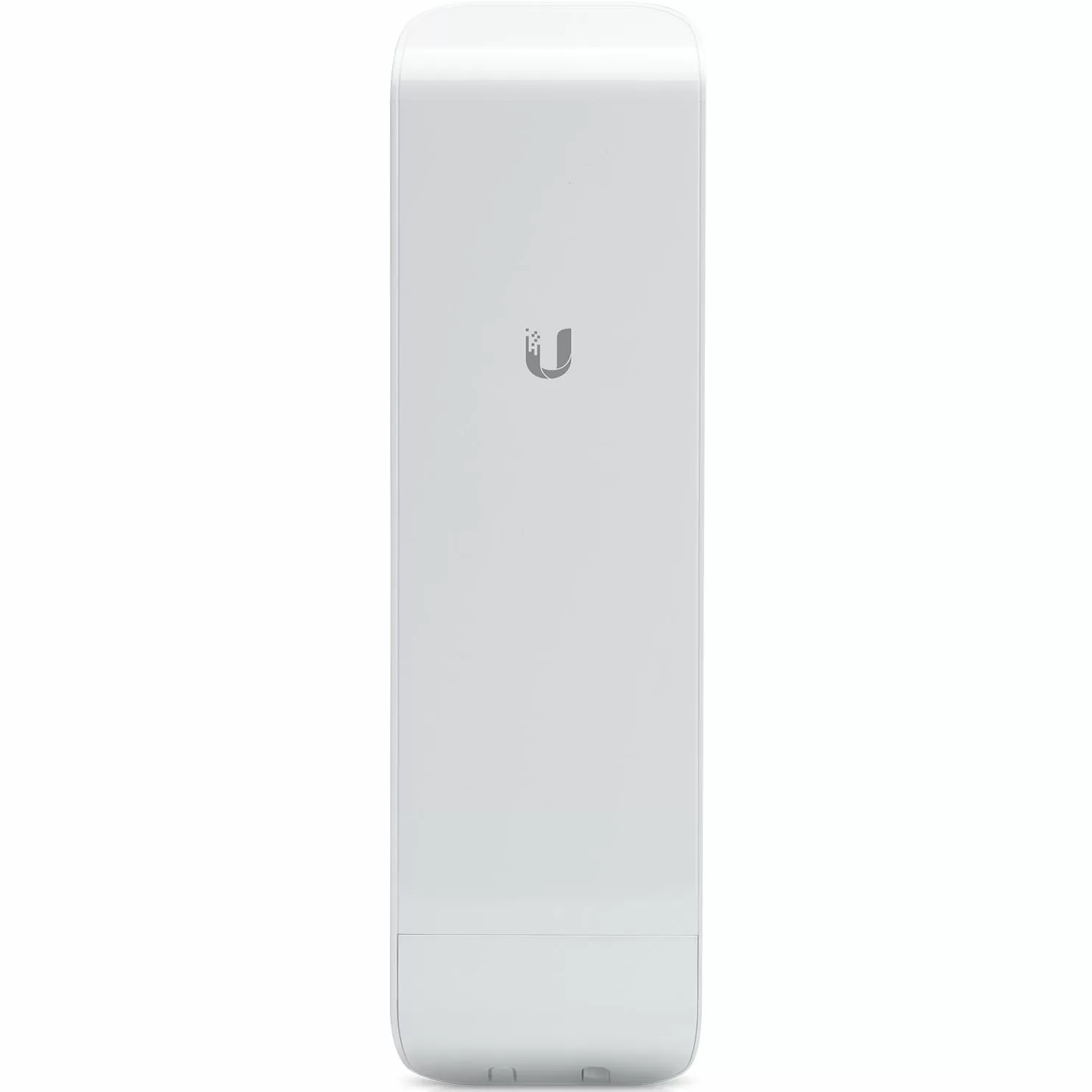

Ubiquiti NanoStation M5 (NSM5-U)

←
Get Your Custom Quote!

The NSM5-U is a compact outdoor wireless bridge and CPE (Customer Premises Equipment) that operates in the 5 GHz band. Designed for long-range point-to-point or point-to-multipoint connections, it integrates a high-gain directional antenna and a durable, weather-resistant enclosure. This U.S. version complies with FCC regulations.

SPECIFICATIONS

• Model Code: NSM5-U

• Region: U.S. version

• Frequency Band: 5 GHz

• Wireless Standard: 802.11a/n

• Maximum Throughput: Up to 150 Mbps

• Antenna Type: Integrated directional panel

• Antenna Gain: 16 dBi

• Beamwidth: Approx. 43° (horizontal), 15° (vertical)

• Range: Up to 15+ km (line of sight)

• Ethernet Ports:

  • 2 × 10/100 Mbps

  • Secondary port supports PoE passthrough

• Processor: Atheros MIPS 24Kc, 400 MHz

• Memory: 32 MB RAM, 8 MB Flash

• Power Input:

  • 24V Passive PoE (adapter included)

• Power Consumption: Up to 8 Watts

• Enclosure: UV-resistant plastic, outdoor rated

• Operating Temperature: –30 °C to +75 °C

• Mounting: Pole mount kit included

• Dimensions: 294 × 80 × 31 mm

• Weight: ~400 g
