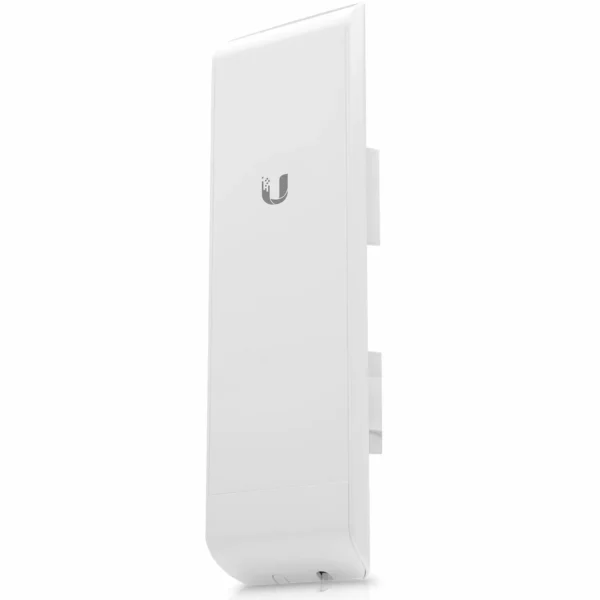

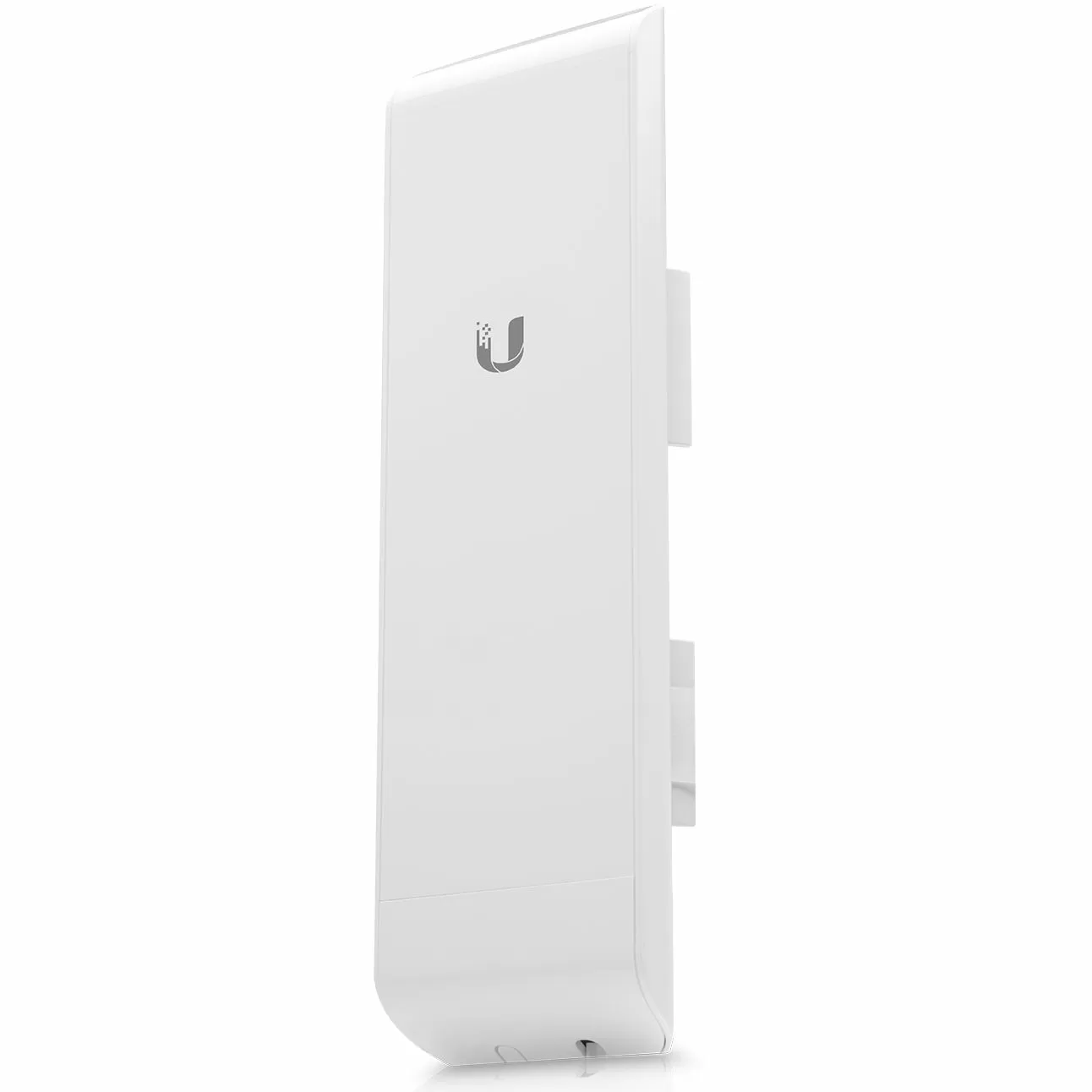

Ubiquiti NanoStation M2 – NSM2‑US

←
Get Your Custom Quote!

A rugged outdoor 2.4 GHz wireless device featuring integrated directional antenna and dual Ethernet ports. Ideal for serving as a wireless bridge or CPE (Customer Premises Equipment) in point-to-point or point-to-multipoint setups. Equipped with passive PoE and a weather-resistant casing for reliable outdoor use.

SPECIFICATIONS

• Model Code: NSM2‑US

• Wireless Standard: 802.11b/g/n (2.4 GHz)

• Max Data Rate: Up to 150 Mbps

• Antenna Gain: ~11 dBi directional panel

• Coverage Range: Typically up to 13 km line-of-sight

• Beamwidth: ~55° H × ~53° V

• Ethernet Ports:

  • 2 × 10/100 Mbps RJ‑45

  • One port supports passive PoE pass-through

• Processor: Atheros MIPS 24Kc – 400 MHz

• Memory: 32 MB RAM / 8 MB flash

• Power Input: 24 V passive PoE (adapter included)

• Power Draw: ~8 W max

• Operating Temperature: –30 °C to +75 °C

• Enclosure: UV-stabilized plastic; powder resistant

• Mounting: Pole mount included

• Surge/ESD Protection: ±24 kV

• Compliance: FCC, IC, CE, RoHS, NDAA-compliant

• Management Interface: Configurable via airOS (web UI) and UISP mobile app
