Description

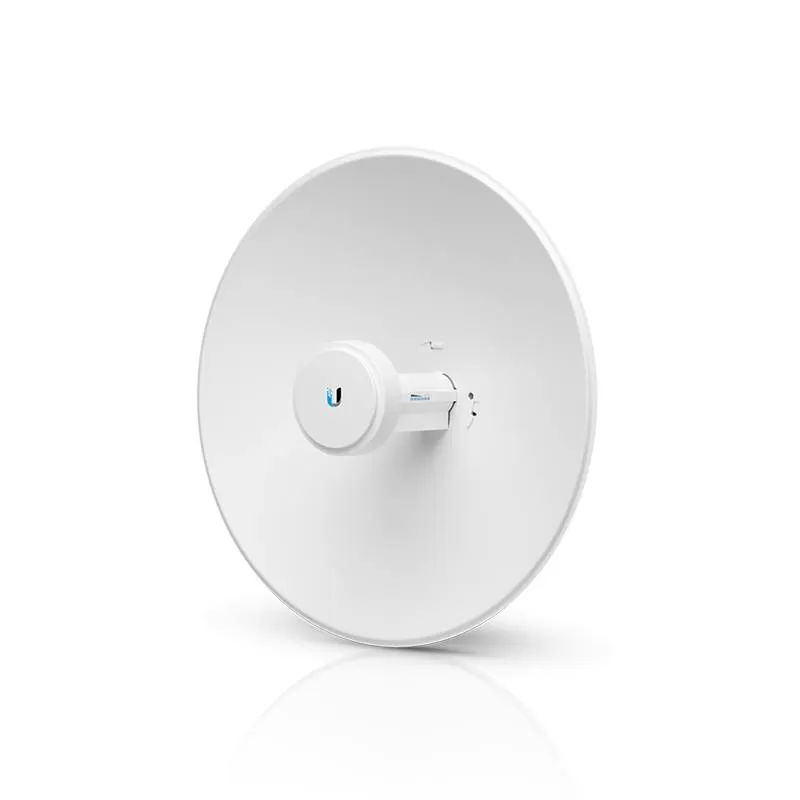

Ubiquiti PowerBeam 2AC 400 EU (PBE-2AC-400-EU)

←
Get Your Custom Quote!

The PBE-2AC-400-EU is a high-performance outdoor wireless bridge designed for long-distance point-to-point and point-to-multipoint links in the 2.4 GHz band. Built with a 400 mm reflector dish and airMAX ac technology, it provides focused signal transmission, improved noise isolation, and strong throughput in the EU frequency range.

SPECIFICATIONS

• Model Code: PBE-2AC-400-EU

• Region: EU (European regulations)

• Frequency Band: 2.4 GHz

• Wireless Standard: airMAX ac (802.11n/ac)

• Maximum Throughput: Up to 330+ Mbps

• Antenna Gain: 18 dBi

• Dish Size: 400 mm diameter

• Range: Several kilometers (line of sight)

• Ethernet Port:

  • 1 × 10/100/1000 Mbps (Gigabit)

• Processor: Atheros MIPS 74Kc, 720 MHz

• Memory: 128 MB DDR2 RAM, 16 MB NOR Flash

• Power Input:

  • 24V, 0.3A Gigabit PoE adapter (included)

• Power Consumption: Up to 8.5 Watts

• Mounting: Pole mount kit included

• Wind Survivability: Up to 200 km/h

• Operating Temperature: –40°C to +70°C

• Enclosure: Outdoor-rated, UV-stabilized plastic

• Dimensions: 420 × 420 × 230 mm

• Weight: Approx. 1.75 kg

• Software Features:

  • Managed via airOS 7

  • Supports airView spectrum analyzer

  • Compatible with airControl network management
