Access Door Hub Mini (UA-Hub-Door-Mini)

The UniFi Access Door Hub Mini (UA-Hub-Door-Mini) is a compact single-door access controller that provides complete entry and exit control via connected UniFi Access Readers. It supports a wide range of locking mechanisms, including electric bolts, strikes, and magnetic locks, and offers comprehensive I/O functionality for enhanced control and monitoring.

Specifications:

• Model: UniFi Access Door Hub Mini (UA-Hub-Door-Mini)

• Device Type: Single-Door Access Controller

• Function: Centralized entry and exit control for a single door via connected readers

• Lock Terminals: (1) Lock terminal (12V DC, 1A wet / 30V DC, 1A dry), compatible with electric bolts/strikes and magnetic locks

• AUX Terminals: Not specified

• Input Terminals: (2) Inputs for door exit request and door position sensor

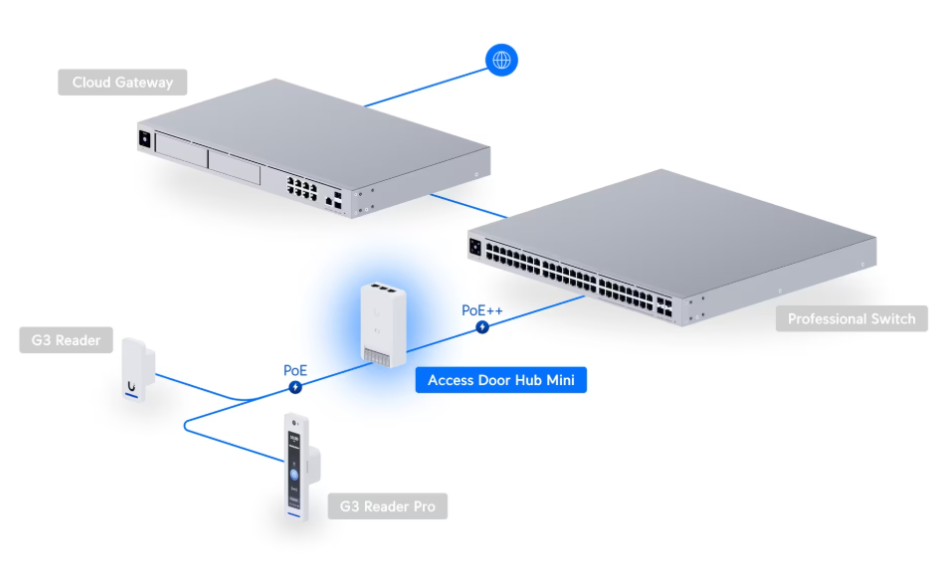

• PoE Ports: (2) PoE output ports for connecting UniFi Access Readers or Protect Cameras

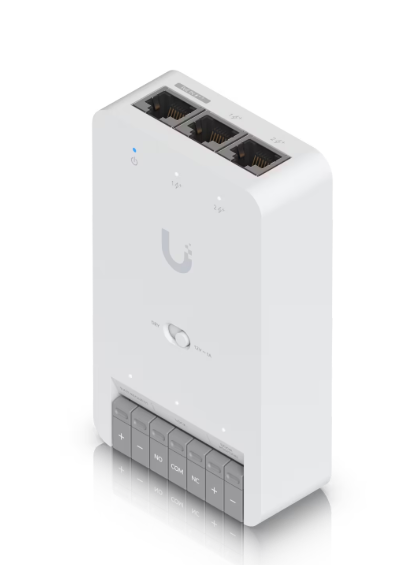

• Networking: (3) GbE RJ45 ports (1 PoE++ input, 2 PoE+ outputs)

• Power Method: PoE++ (802.3bt)

• Max Power Consumption: 19W (without PoE output) / 50W (with PoE output)

• PoE Output Budget: 45W aggregated (30W max per port)

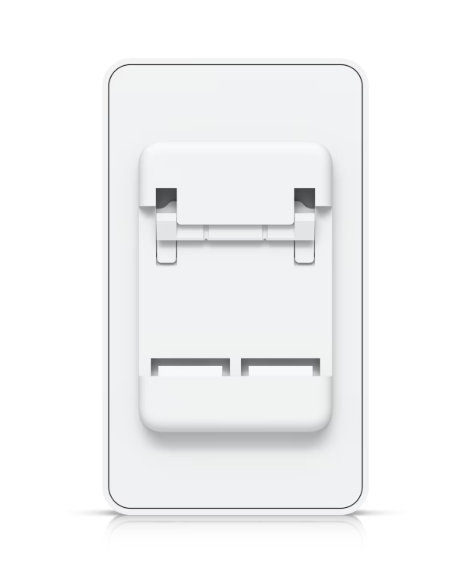

• Mounting: DIN-rail (included)

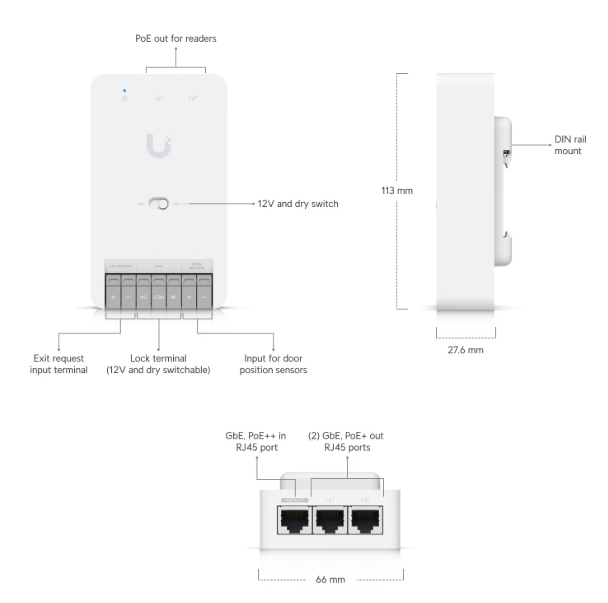

• Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1″)

• Weight: 190 g (6.7 oz)

• Enclosure Material: Polycarbonate, metal

• Use Case: Single-door access management for offices, residential buildings, commercial facilities, and controlled entry points

• Security Features: UL 294 Level I certification (Destructive attack, Line security, Endurance, Standby power), CAN/ULC-60839-11-1 Grade I, NDAA compliant

• Management: Managed via UniFi Access application (version 2.5.2 and later)

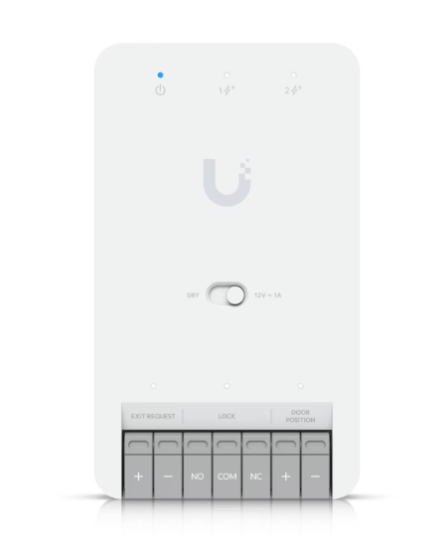

• Design: Compact indoor enclosure with factory-reset button, Dry/Wet switch, and LED indicators (System, PoE Out, Input, Output Relays)

• Operating Environment: Indoor use only, 0 to 40° C (32 to 104° F), 5 to 90% noncondensing humidity
