Description
Access G3 Reader (UA-G3-W)
The UniFi Access G3 Reader (UA-G3-W) is a compact, third-generation access control reader that supports Apple Touch Pass and multiple authentication methods. This white model offers flexible unlocking via NFC, the UniFi Identity mobile app, or Apple/Google Wallet, and is designed with IP55-rated weather resistance for reliable indoor and outdoor performance.
Specifications:
-
Model: UniFi Access G3 Reader (UA-G3-W)
-
Device Type: Access Control Reader
-
Function: Secure entry management with multi-method authentication
-
Authentication: NFC cards/fobs, UniFi Identity app, Apple Touch Pass, hand-wave (exit)
-
Networking: 1 x 10/100 MbE RJ45 port
-
Connectivity: BLE 4.1, NFC (13.56 MHz)
-
NFC Read Range: < 30 mm
-
Power Method: PoE (48V DC, max 5W)
-
Weather Resistance: IP55-rated (outdoor capable)
-
Operating Temp: -30 to 45° C (-22 to 113° F)
-
Mounting: Flush mount (in-wall or gang box)
-

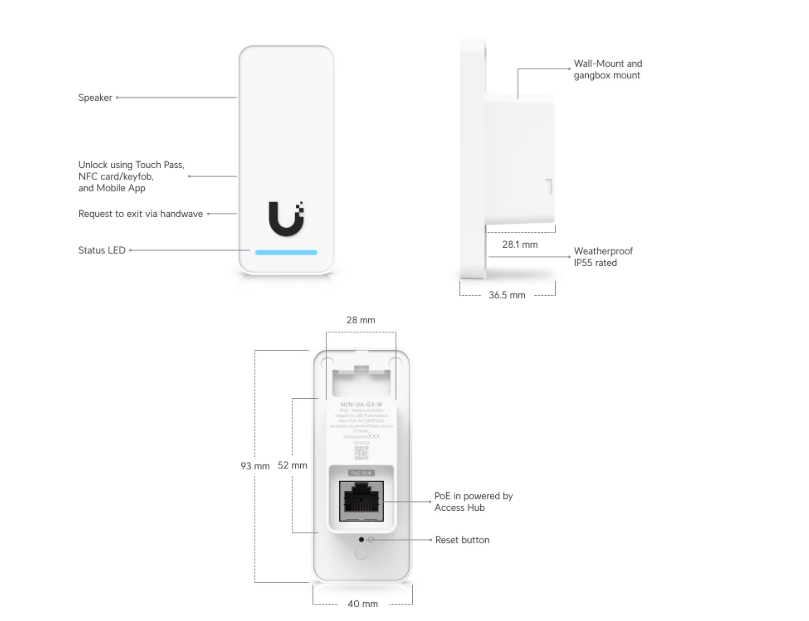

Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)
-
Weight: 82 g (2.9 oz)
-
Enclosure Material: Polycarbonate, glass; mounting material: aluminum alloy
-
Use Case: Secure access for office buildings, residential complexes, commercial facilities, and controlled entry points
-
Security Features: ESD/EMP protection, UL 294 Level I rated
-
Management: Centralized credential and event management via UniFi Access
-
Design: Compact, discreet enclosure with RGB LED and built-in speaker (0.7W)
-

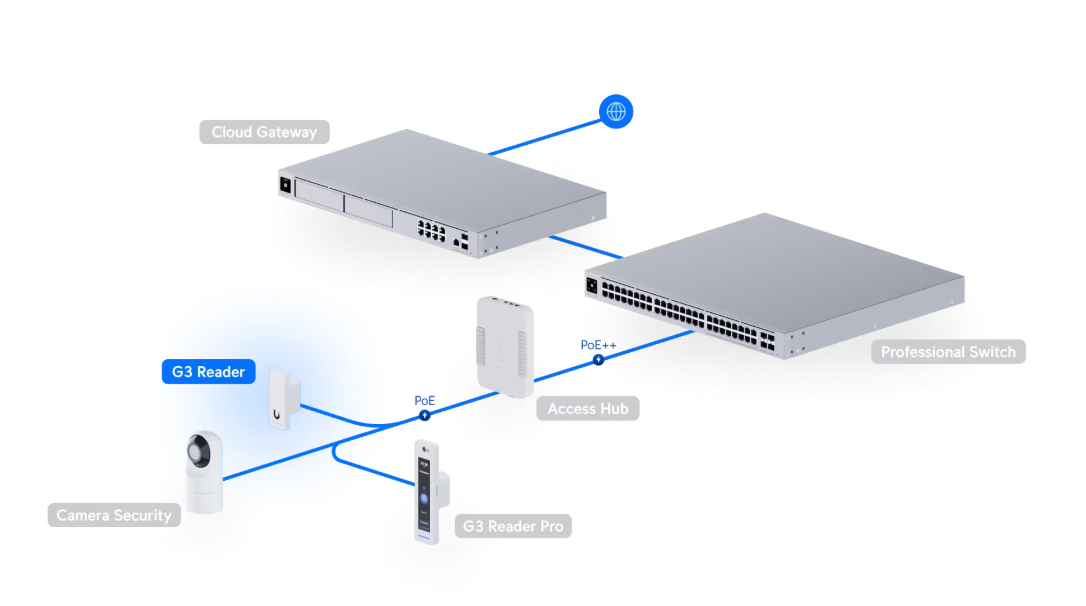

Compatibility: UniFi Access Hub and UniFi Access ecosystem; supports UniFi Identity and Apple Touch Pass
