Access Rescue KeySwitch (UA-Rescue)

The UniFi Access Rescue KeySwitch (UA-Rescue) is a manual key switch that provides an emergency override for the UniFi Access Hub . Compatible with both Fail Safe and Fail Secure locking systems, it allows users to physically unlock a door during a system malfunction or power outage .

Specifications:

• Model: UniFi Access Rescue KeySwitch (UA-Rescue)

• Device Type: Manual Emergency Key Switch

• Function: Manual override to unlock doors during an Access Hub system malfunction

• Compatibility: UniFi Access Hubs; Fail Safe and Fail Secure lock systems

• Power Method: Connects to 28V DC power via terminal block

• Key Switch: Brass internal wave key, 28V DC, 4A

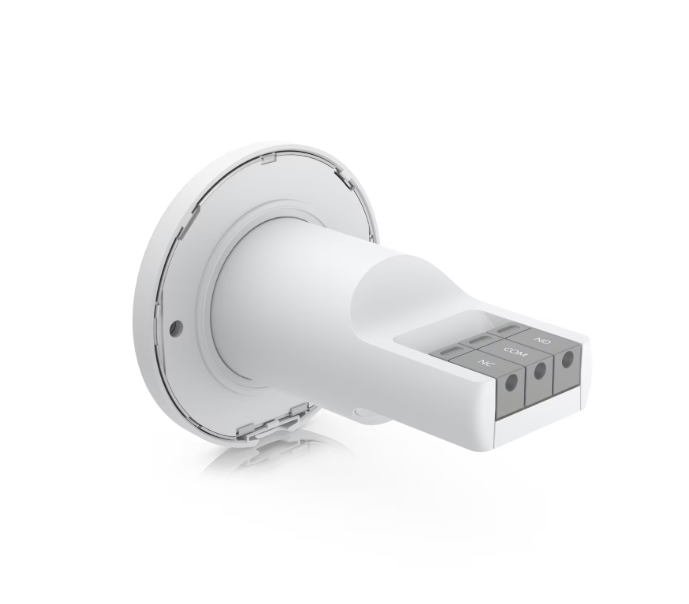

• Terminal Block: COM/NO/NC, supports 18-24 AWG wire

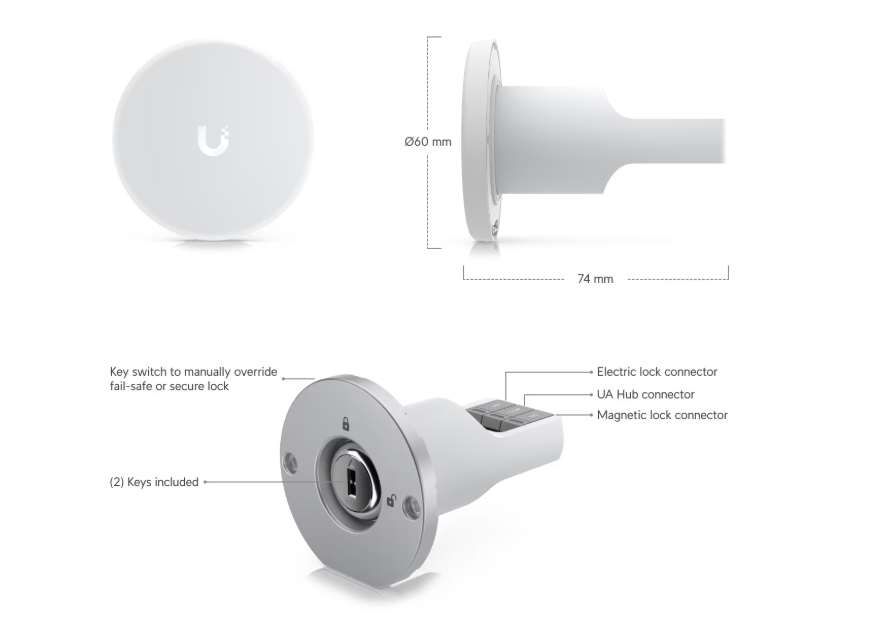

• Dimensions: ⌀60 x 74 mm (⌀2.4 x 2.9″)

• Weight: 94 g (3.3 oz)

• Enclosure Material: Polycarbonate

• Use Case: Emergency backup and manual door unlocking for any door connected to the Access Hub

• Security Features: NDAA compliant, tamperproof mounting

• Operating Temperature: -30 to 65° C (-22 to 149° F)

• Design: Compact circular switch with a manual unlock port and two physical keys included
