airMAX Lite AP (LAP-120)

The airMAX Lite AP (LAP-120) is an ultra-lightweight, 5 GHz airMAX ac access point with a 120-degree sector coverage antenna . Designed for long-distance, wireless broadband bridging, it features a high-gain 16 dBi antenna, 2×2 MIMO technology, and a versatile ball-joint mount for easy alignment .

Specifications:

• Model: airMAX Lite AP (LAP-120)

• Device Type: 5 GHz airMAX AC Access Point

• Function: Long-distance wireless broadband bridging with 120° sector coverage

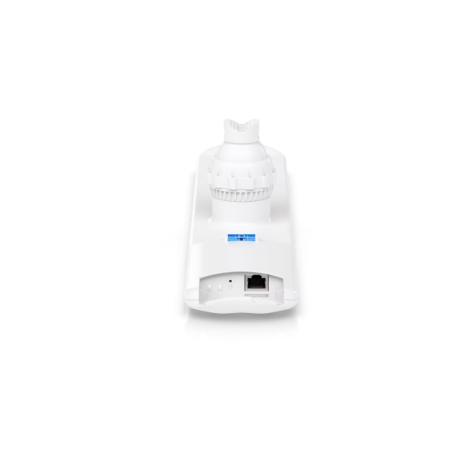

• Networking Interface: (1) GbE RJ45 port

• Antenna Gain: 16 dBi

• Beamwidth: 120°

• Processor: Atheros MIPS 74Kc, 533 MHz

• Memory: 64 MB

• Max. Power Consumption: 8W

• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)

• Power Supply: 24V, 0.5A Gigabit PoE adapter (included)

• Supported Voltage Range: 20-27V DC

• ESD/EMP Protection: ±24kV Contact/Air

• Wind Survivability: 200 km/h (125 mph)

• Operating Temperature: -40 to 70° C (-40 to 158° F)

• Operating Humidity: 5 to 95% noncondensing

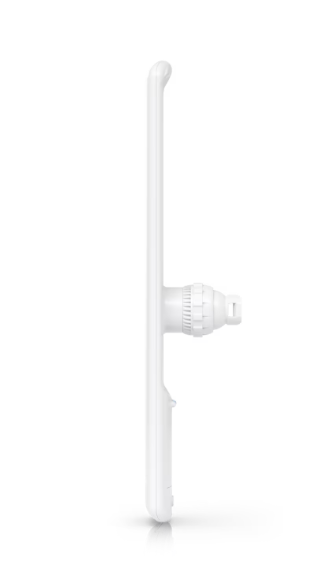

• Mounting: Pole-mount kit included with ball-joint mount

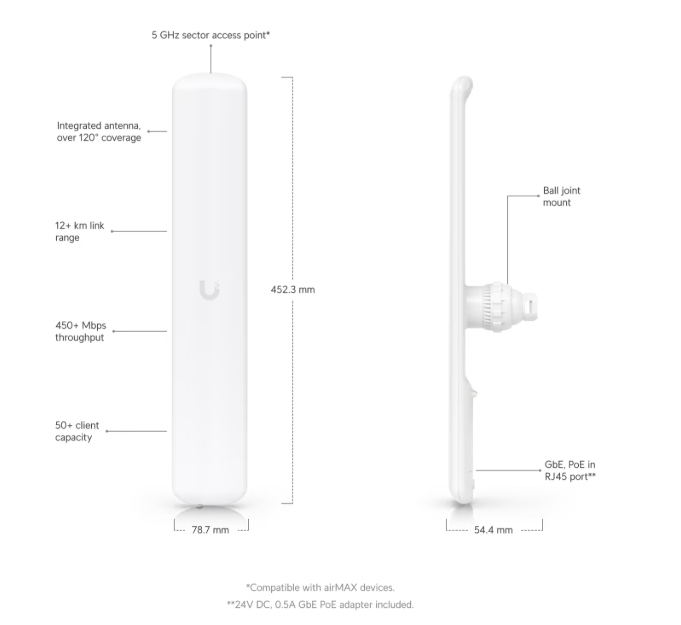

• Dimensions: 452.3 x 78.7 x 54.4 mm (17.8 x 3.1 x 2.14″)

• Weight: 420 g (14.82 oz)

• Enclosure Material: UV-stabilized plastic with die-cast aluminum base

• Use Case: Point-to-multipoint bridging, WISP last-mile connectivity, and enterprise campus networks

• Security Features: ESD/EMP protection, NDAA compliant

• Management: airOS (airMAX configuration interface) with SNMP, SSH, and ping watchdog

• Design: Ultra-lightweight outdoor unit with 2×2 MIMO antenna, integrated radio, and three-axis alignment

• Compatibility: Communicates with multiple airMAX ac CPEs within 120° coverage area; operates in 5 GHz frequency range
