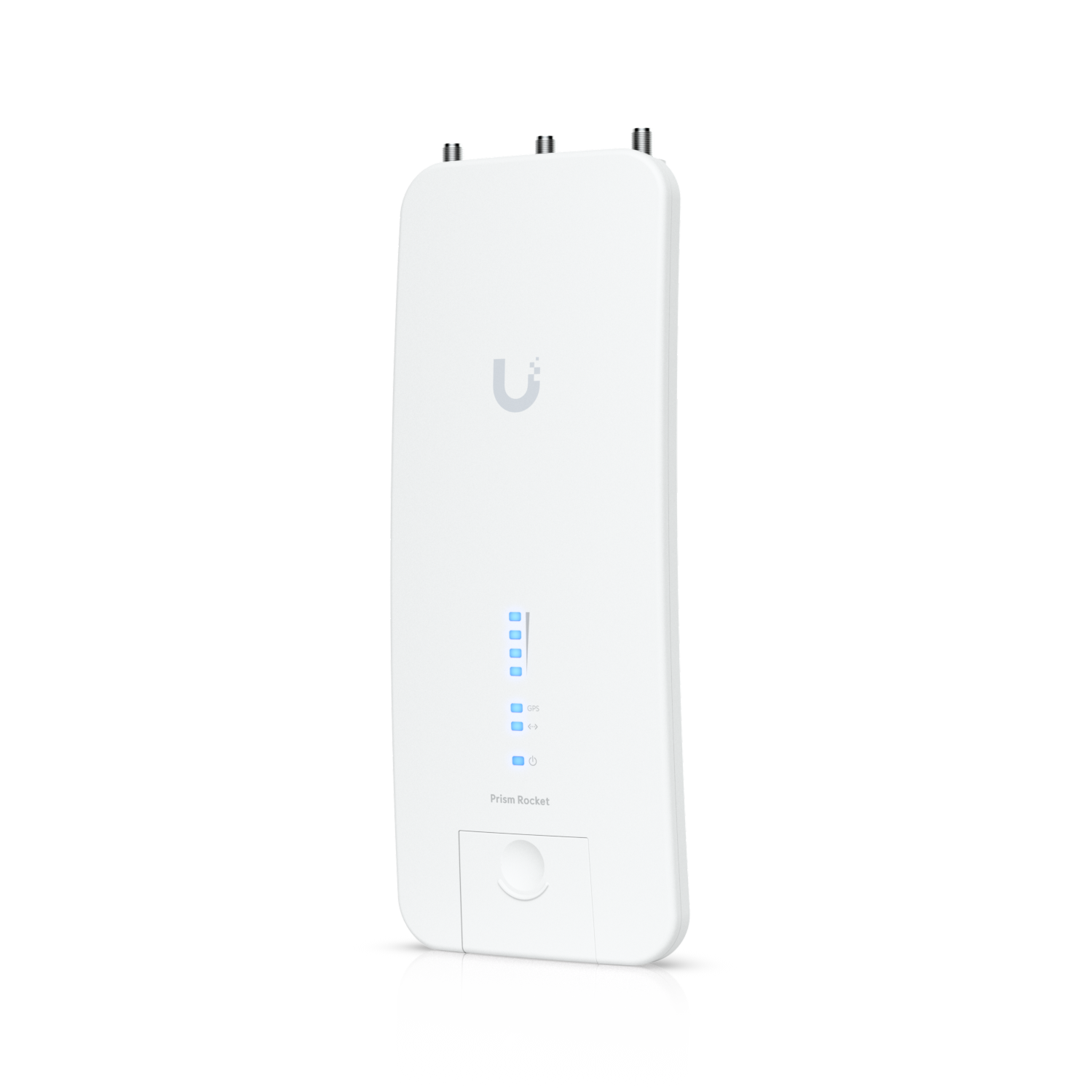

The airMAX Rocket Prism 5AC (RP-5AC-Gen2) is a high-performance 5 GHz base station designed for PtMP or PtP links, delivering up to 500+ Mbps throughput. It features Ubiquiti’s patented airPrism™ active RF filtering technology, which isolates signals within the operating channel to increase throughput and capacity in high-density, co-located deployments. The device supports GPS Sync for scalable, carrier-class networks and includes a dedicated 2.4 GHz management radio for simplified setup via mobile devices.

Specifications:

• Model: airMAX Rocket Prism 5AC (RP-5AC-Gen2)

• Device Type: 5 GHz airMAX AC Base Station

• Function: High-performance, interference-resistant wireless base station for PtMP and PtP links

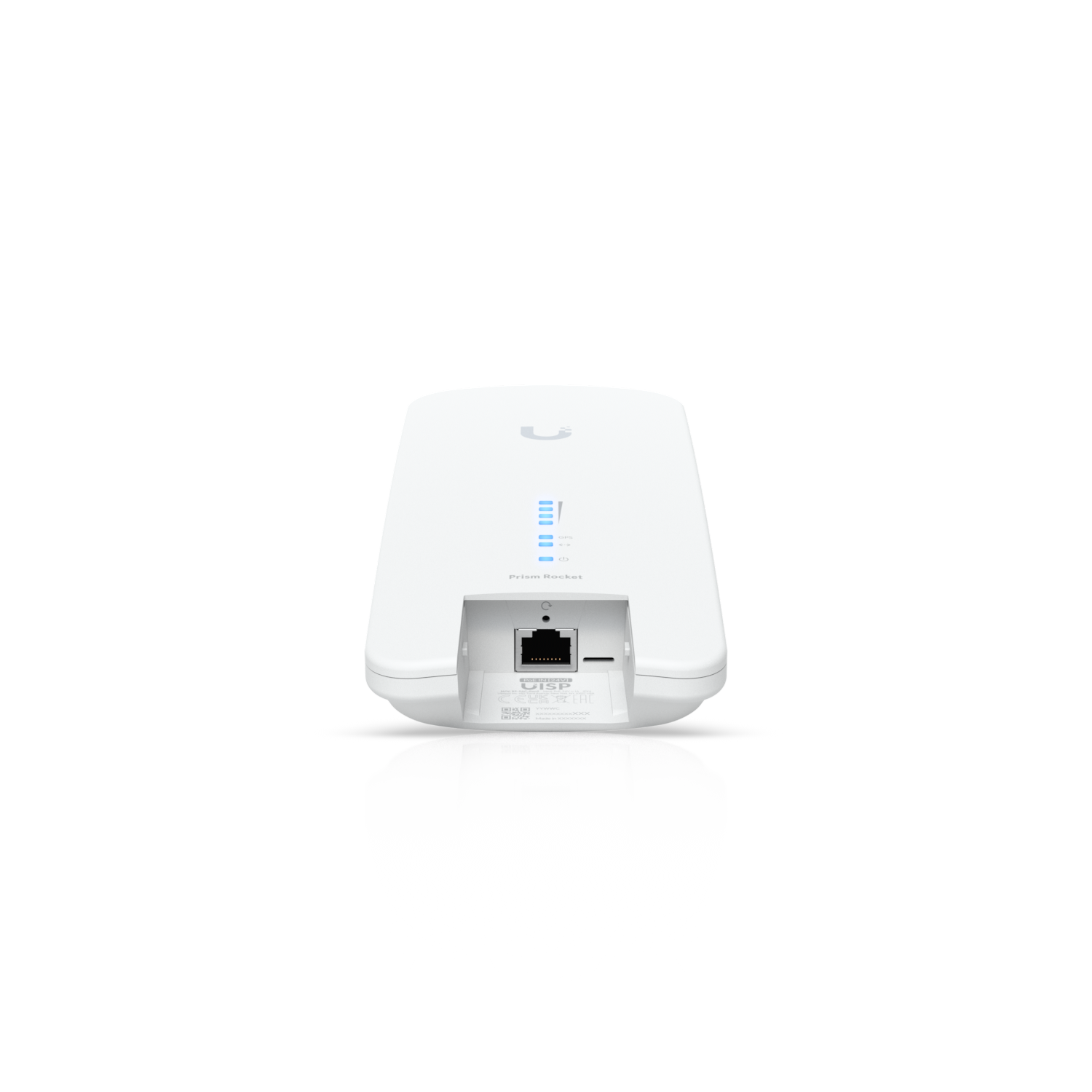

• Networking Interface: (1) GbE RJ45 port

• Processor: Atheros MIPS 74Kc

• Memory: 128 MB DDR2 SDRAM

• Max. Power Consumption: 9.5W

• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)

• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)

• Supported Voltage Range: 18–27V DC

• Frequency Range (Worldwide): 5150–5875 MHz

• Management Radio (Worldwide): 2412–2472 MHz

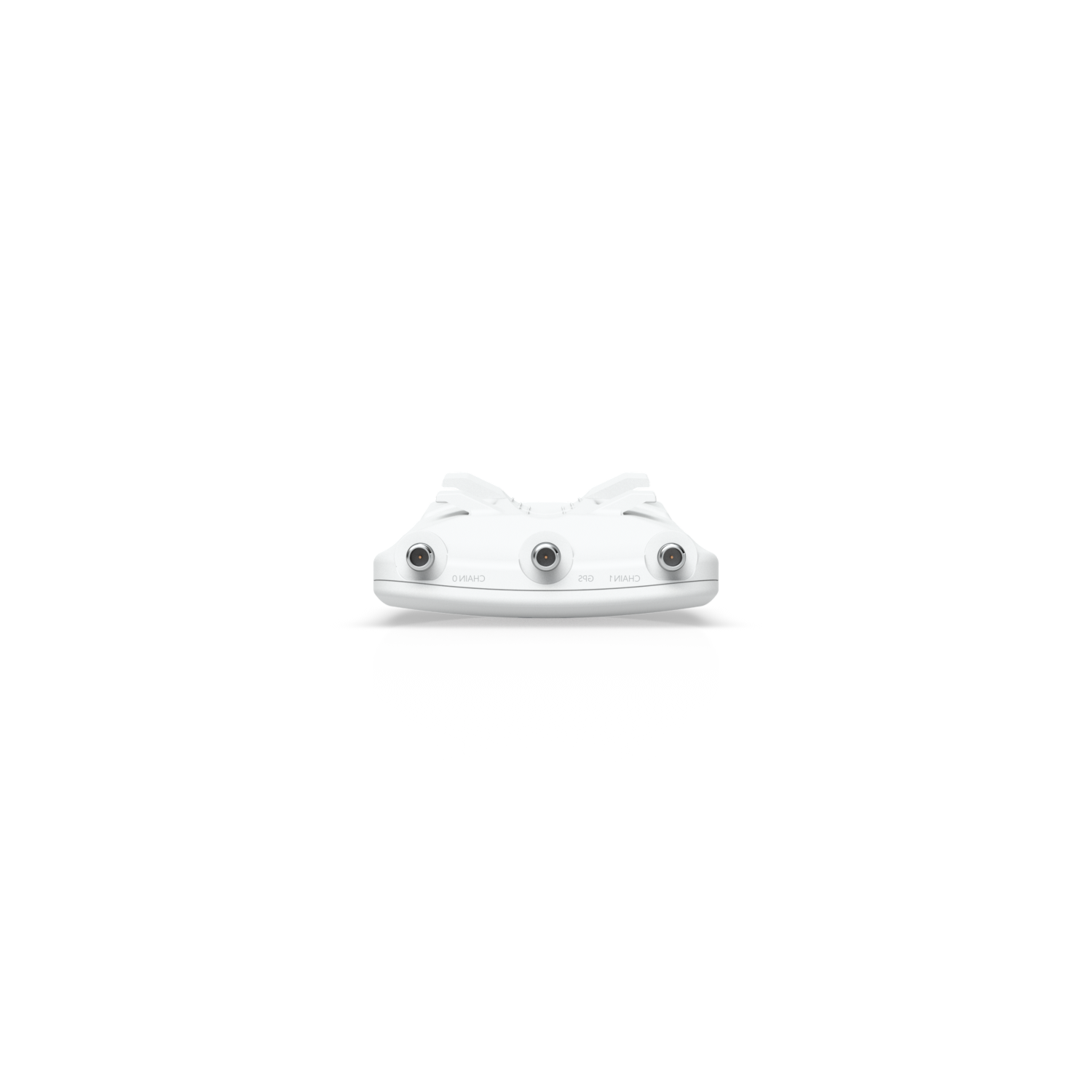

• RF Connectors: (2) RP-SMA (Waterproof), (1) GPS (Waterproof)

• GPS: Integrated GPS synchronization

• LED Indicators: (4) Signal Strength (software-adjustable), Power, LAN, GPS

• ESD/EMP Protection: ±24kV Contact/Air

• Wind Loading: 342.5 N at 200 km/h (77 lbf at 125 mph)

• Mounting: Pole mount (kit included)

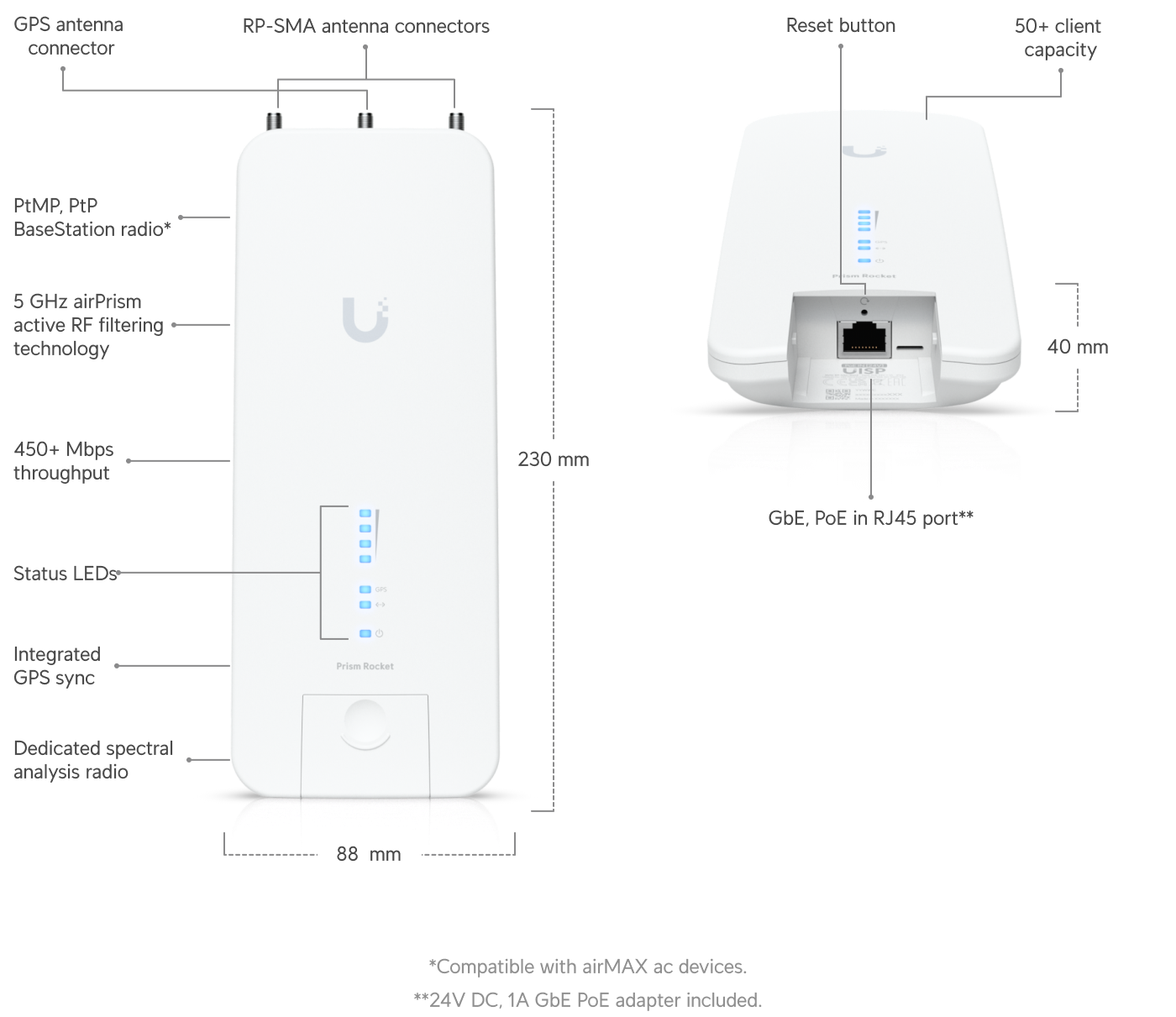

• Dimensions: 88 x 40 x 230 mm (3.5 x 1.6 x 9.1″)

• Weight: 400 g (14.1 oz)

• Enclosure Material: Die-cast aluminum with white powder coating

• Operating Temperature: -40 to 80° C (-40 to 176° F)

• Operating Humidity: 5 to 95% noncondensing

• Use Case: High-density PtMP/PtP links, co-located ISP tower deployments, interference-limited environments

• Security Features: WPA2 AES encryption, ESD/EMP protection, NDAA compliant

• Management: airOS 8, SNMP, SSH, Ping Watchdog, dedicated 2.4 GHz management radio, airView spectrum analyzer, airMagic channel selection

• Design: Rugged, shielded outdoor base station with airPrism active RF filtering, GPS sync, and dual RP-SMA connectors for external antennas

• Channel Bandwidth: PtP mode: 10/20/30/40/50/60/80 MHz; PtMP mode: 10/20/30/40 MHz
