airMAX Rocket Prism 2AC (R2AC-PRISM)

The airMAX Rocket Prism 2AC (R2AC-PRISM) is a full-band 2.4 GHz base station designed for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) links . It features airPrism active RF filtering technology to minimize interference in dense environments and delivers up to 330+ Mbps throughput with support for 50+ client devices .

Specifications:

• Model: airMAX Rocket Prism 2AC (R2AC-PRISM)

• Device Type: 2.4 GHz airMAX AC Base Station

• Function: High-performance, interference-resistant wireless bridging for PtP and PtMP links

• Networking Interface: (1) GbE RJ45 port

• Processor: Not specified

• Memory: 128 MB DDR2 SDRAM, 16 MB NOR Flash

• Max. Power Consumption: 9.5W

• Power Method: Passive PoE 2-pair (24V, 0.5A adapter included)

• Supported Voltage Range: 20–27V DC

• Frequency Range: 2412–2472 MHz (Worldwide)

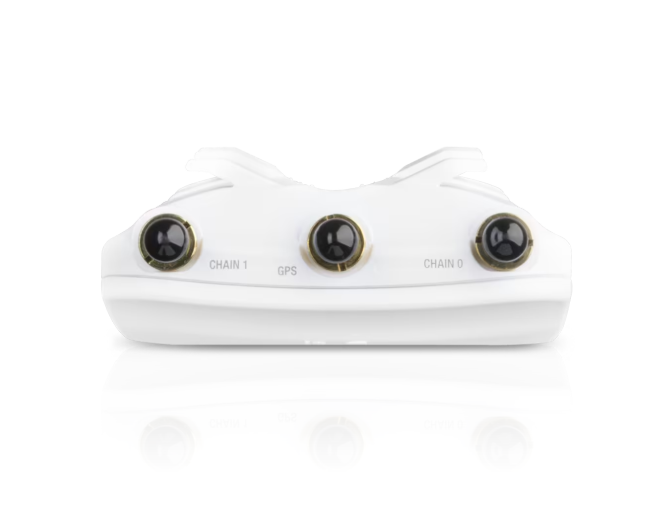

• RF Connectors: (2) RP-SMA (waterproof), (1) GPS (waterproof)

• Management Radio: 5 GHz for simplified setup

• ESD/EMP Protection: ±24kV Contact/Air

• Mounting: Pole mount (kit included)

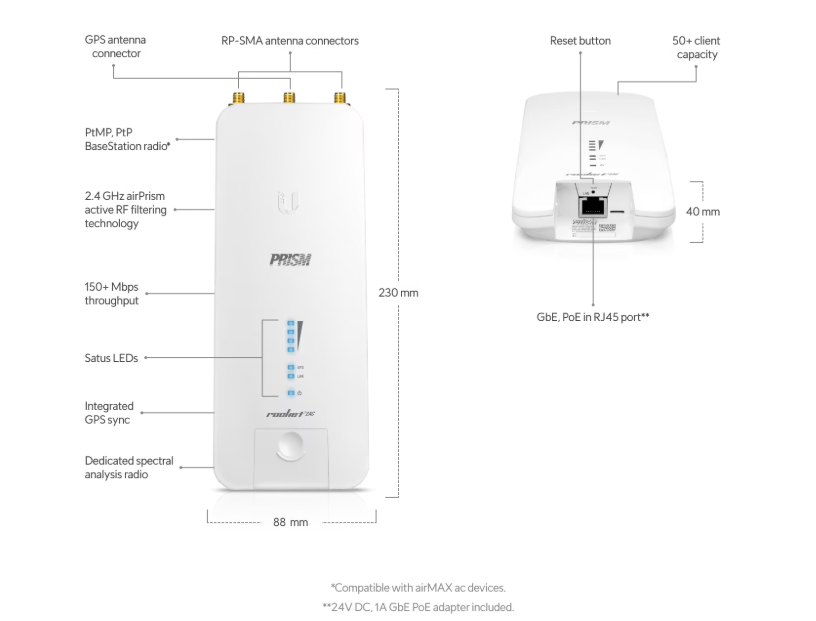

• Dimensions: 88 x 40 x 230 mm (3.5 x 1.6 x 9.1″)

• Weight: 400 g (14.1 oz)

• Enclosure Material: Die-cast aluminum

• Operating Temperature: -40 to 80° C (-40 to 176° F)

• Operating Humidity: 5 to 95% noncondensing

• Use Case: High-density PtMP/PtP links, co-located ISP tower deployments, interference-limited 2.4 GHz environments

• Security Features: WPA2 AES encryption, ESD/EMP protection, NDAA compliant

• Management: airOS 8, dedicated 5 GHz management radio, airView spectrum analyzer, airMagic channel selection

• Design: Rugged outdoor base station with airPrism active RF filtering, integrated GPS sync, and dual RP-SMA connectors for external antennas

• Compatibility: Works with airMAX ac antennas and the airMAX ecosystem
