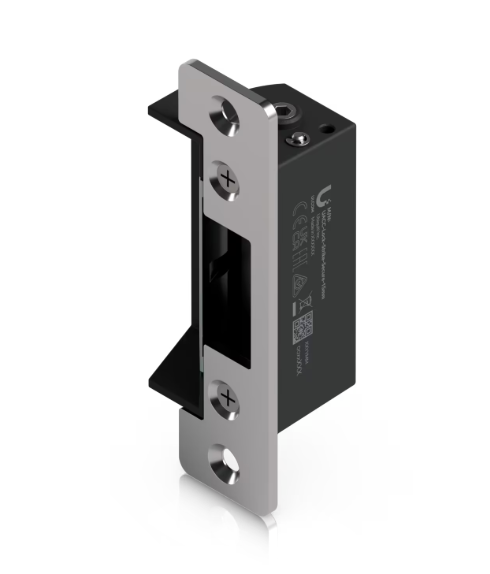

Fail-Secure Strike Lock (UA-Lock-Electric)

The UniFi Fail-Secure Strike Lock (UA-Lock-Electric) is an electric strike lock that provides secure access control for a single door . Featuring a fail-secure design, it remains locked during a power outage to maintain security for restricted areas . With an impressive holding force of up to 1,200 kg (2,645 lb) , it ensures reliable protection and is compatible with wooden, steel, and aluminum doors .

Specifications:

• Model: UniFi Fail-Secure Strike Lock (UA-Lock-Electric)

• Device Type: Electric Strike Lock

• Function: Provides secure access control for a single door

• Lock Type: Fail-secure (remains locked during power loss)

• Holding Force: 1,200 kg (2,645 lb)

• Lock Body Dimensions: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4″)

• Lock Body Weight: 185 g (6.5 oz)

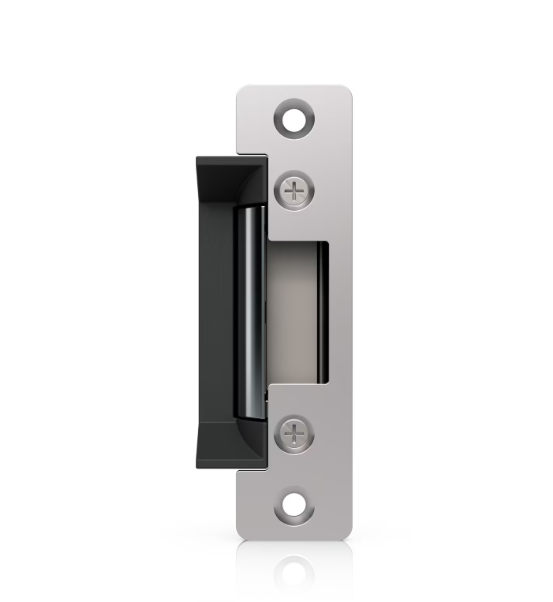

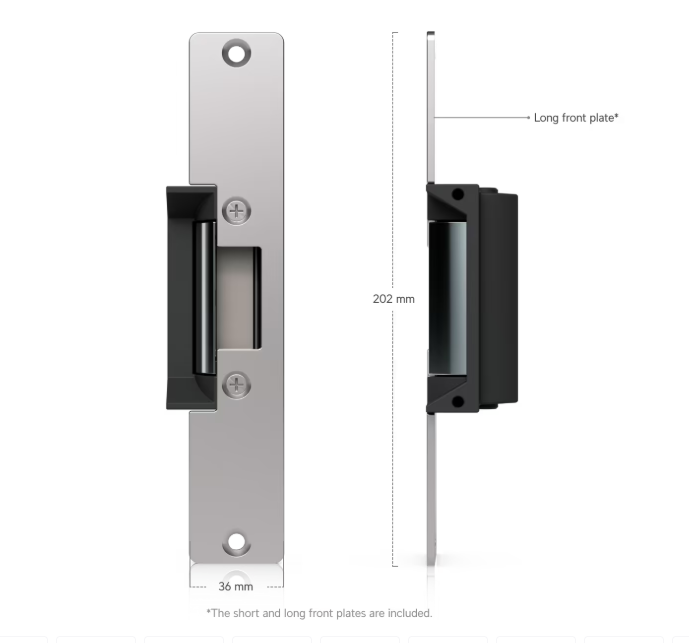

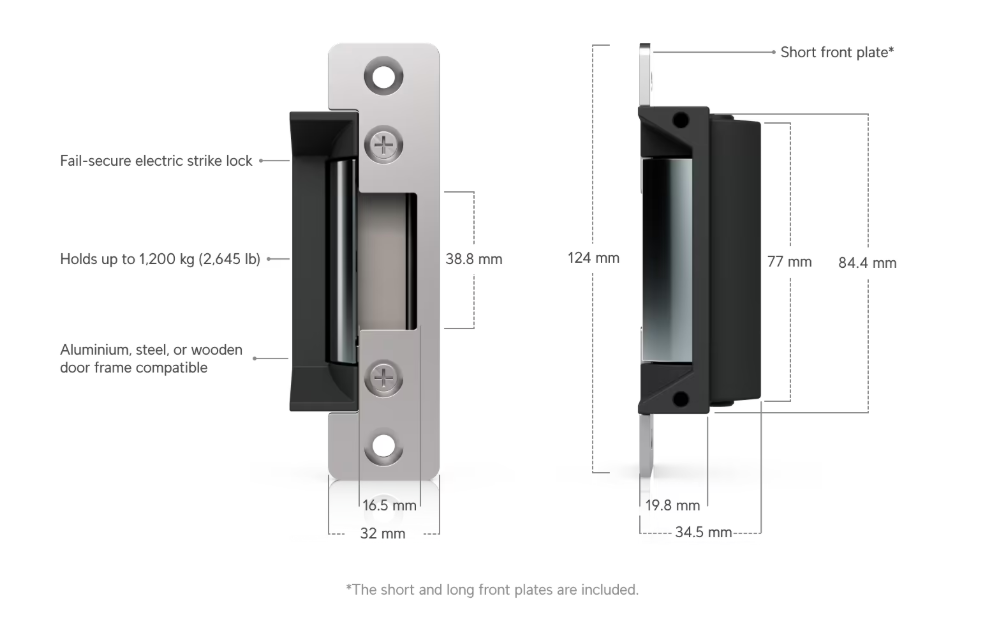

• Front Plate Dimensions: Short: 124 x 32 x 3 mm; Long: 202 x 36 x 3 mm

• Enclosure Material: Lock body: zinc alloy; Front plate/latches: stainless steel

• Voltage: 12V DC

• Current Power: 400mA ±10%

• Wiring Connection: Connect to NO (Normally Open) and COM terminals on a UniFi Access Hub’s powered relay

• Door Compatibility: Wooden, steel, aluminum doors

• Ambient Operating Temperature: -10 to 45° C (14 to 113° F)

• Ambient Operating Humidity: 5 to 90% noncondensing

• Certifications: FCC, IC, CE

• Use Case: Secure access control for offices, residential buildings, and commercial facilities

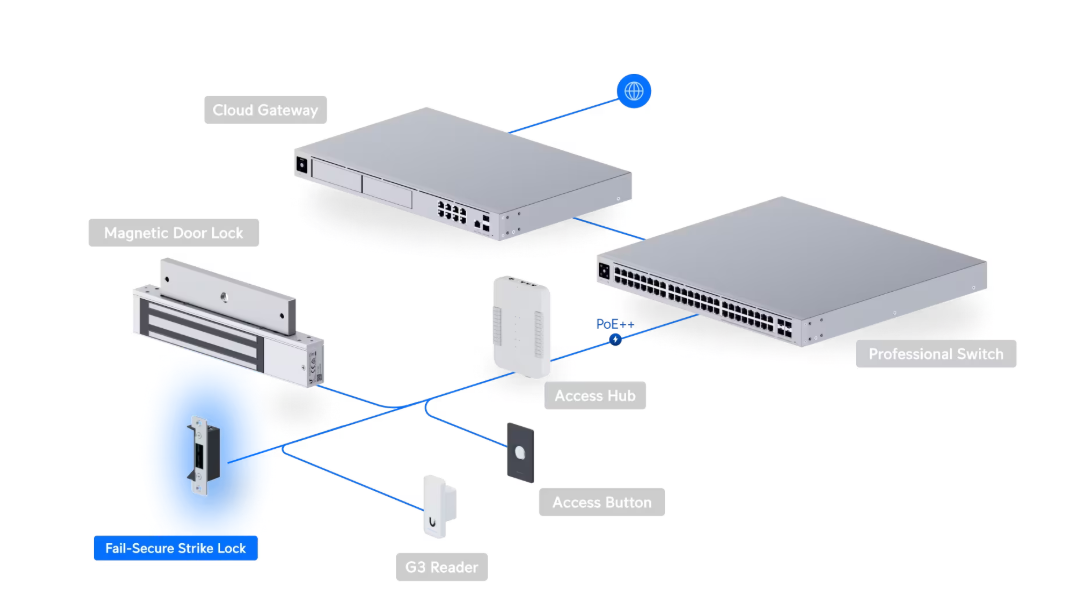

• Management: Integrated with UniFi Access ecosystem; connects to a UniFi Access Hub

• Design: ANSI-compliant strike lock with standard mounting included; designed for single-door installations

• Compatibility: Compatible with UniFi Access Hubs
