Description
G3 Gate Starter Kit (UA-G3-SK-Gate)

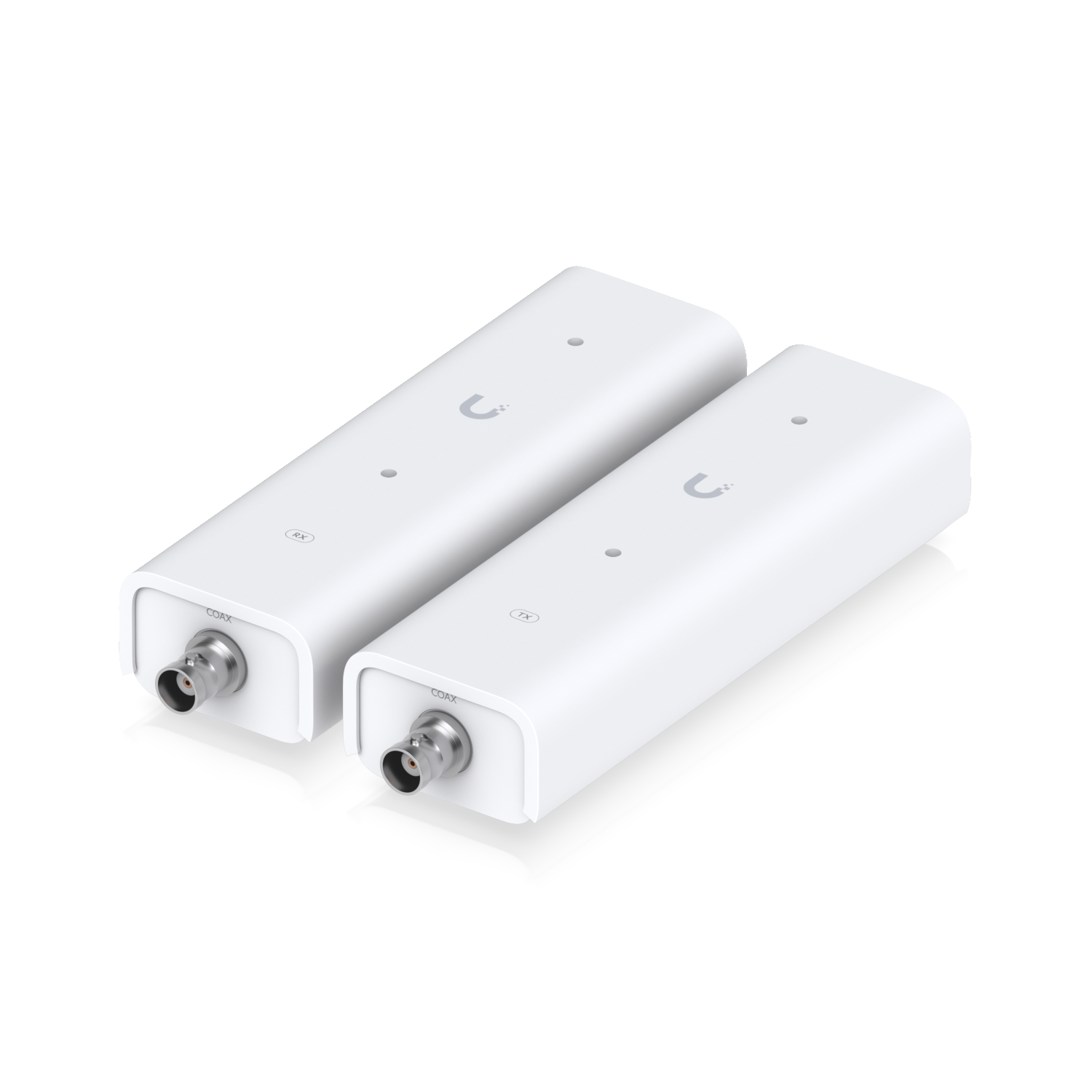

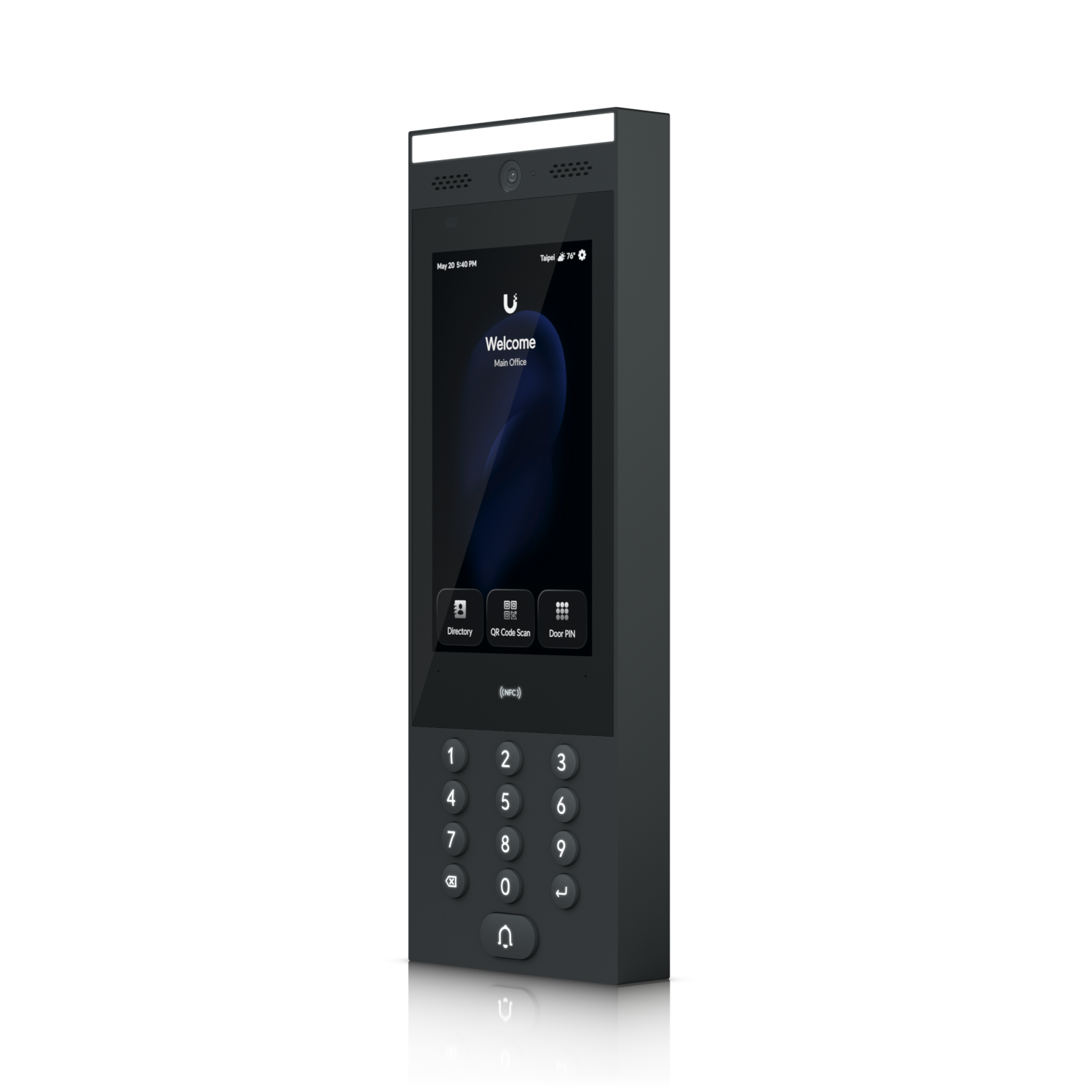

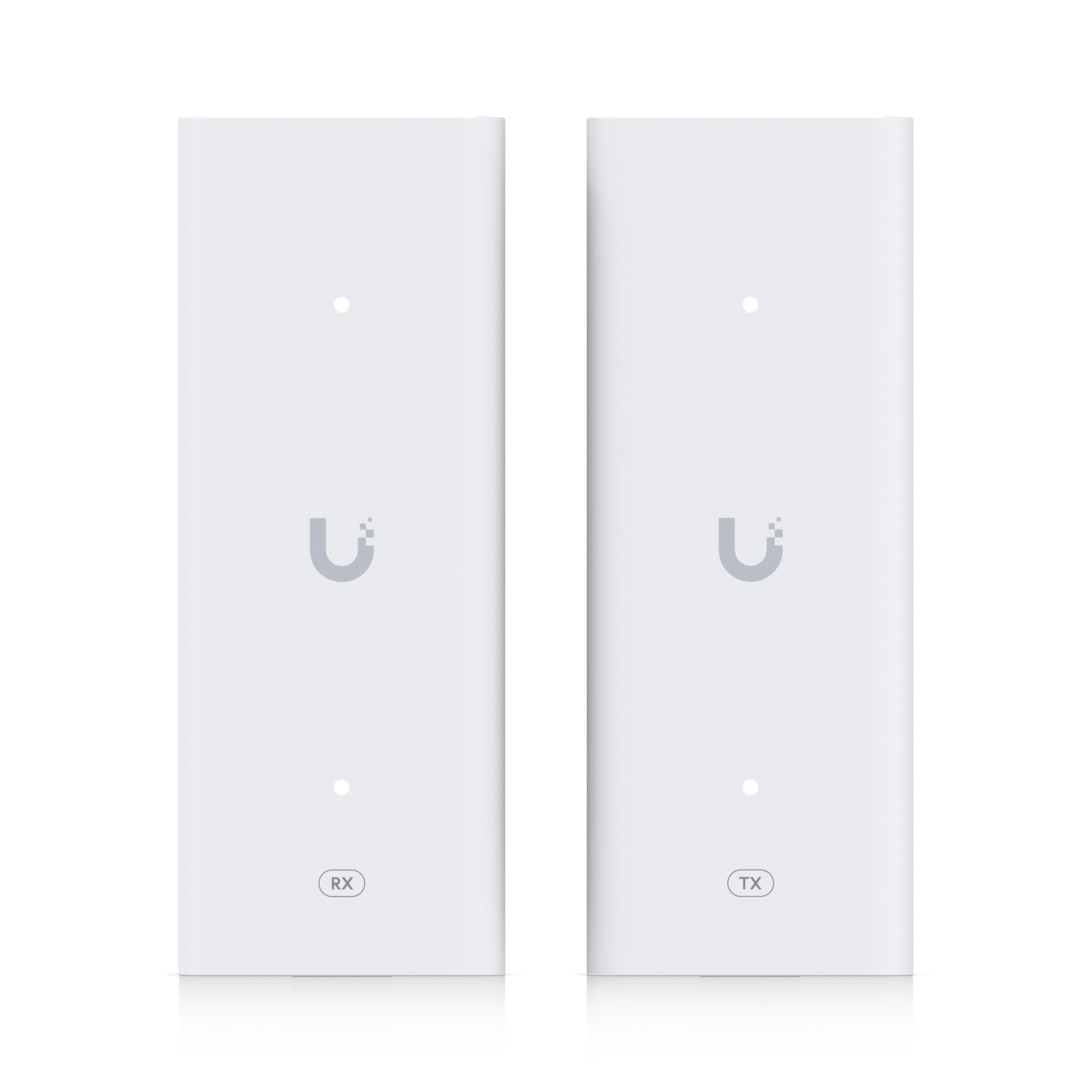

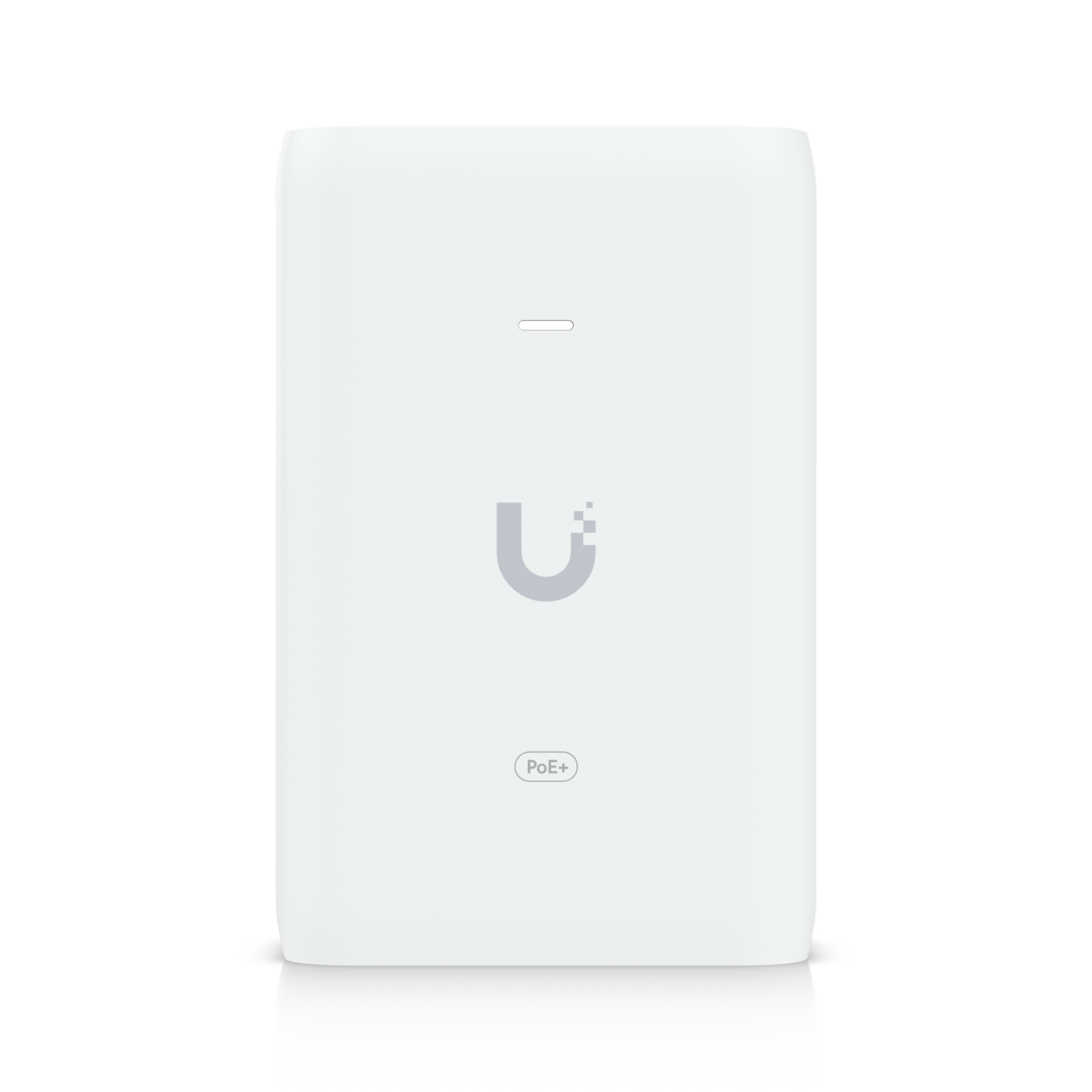

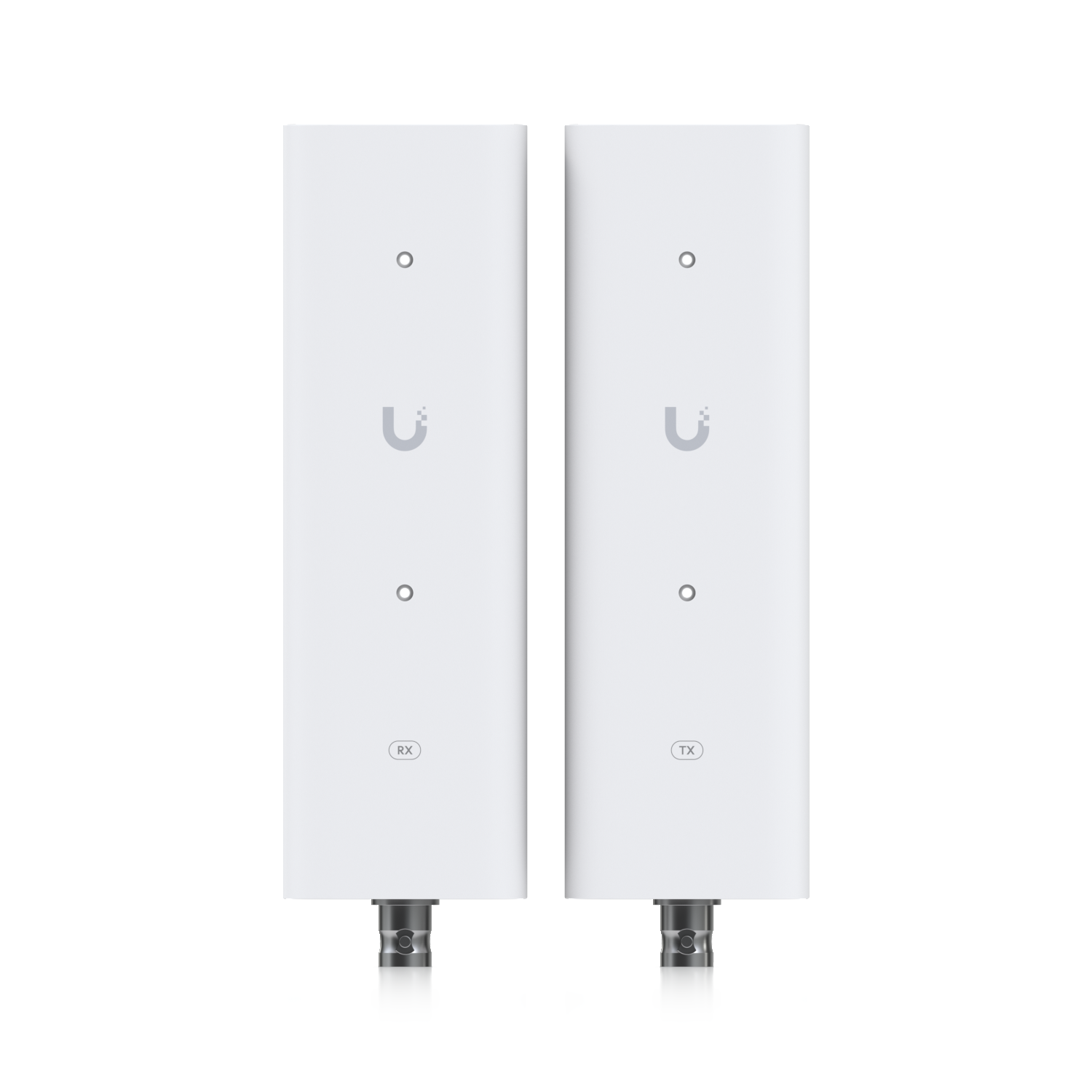

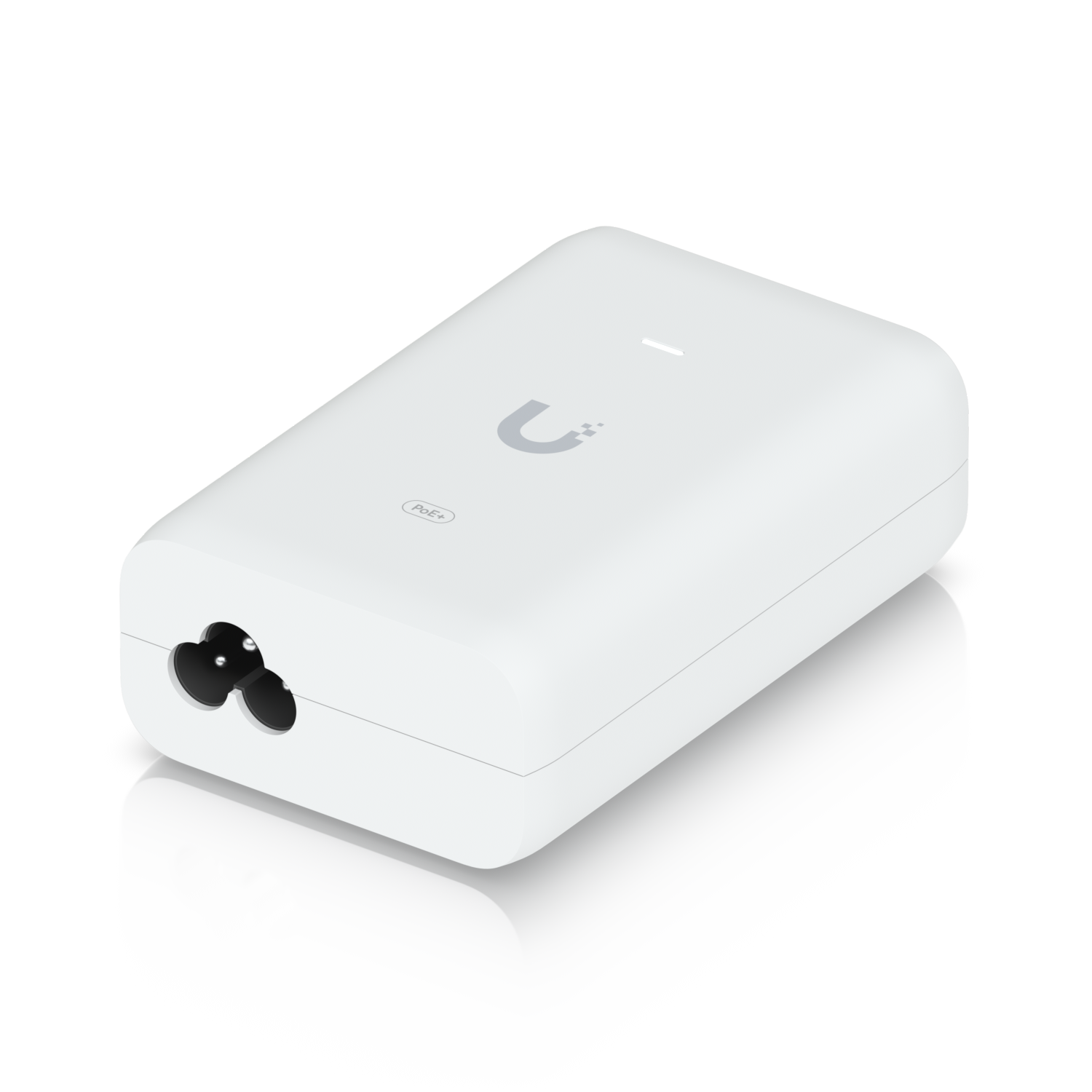

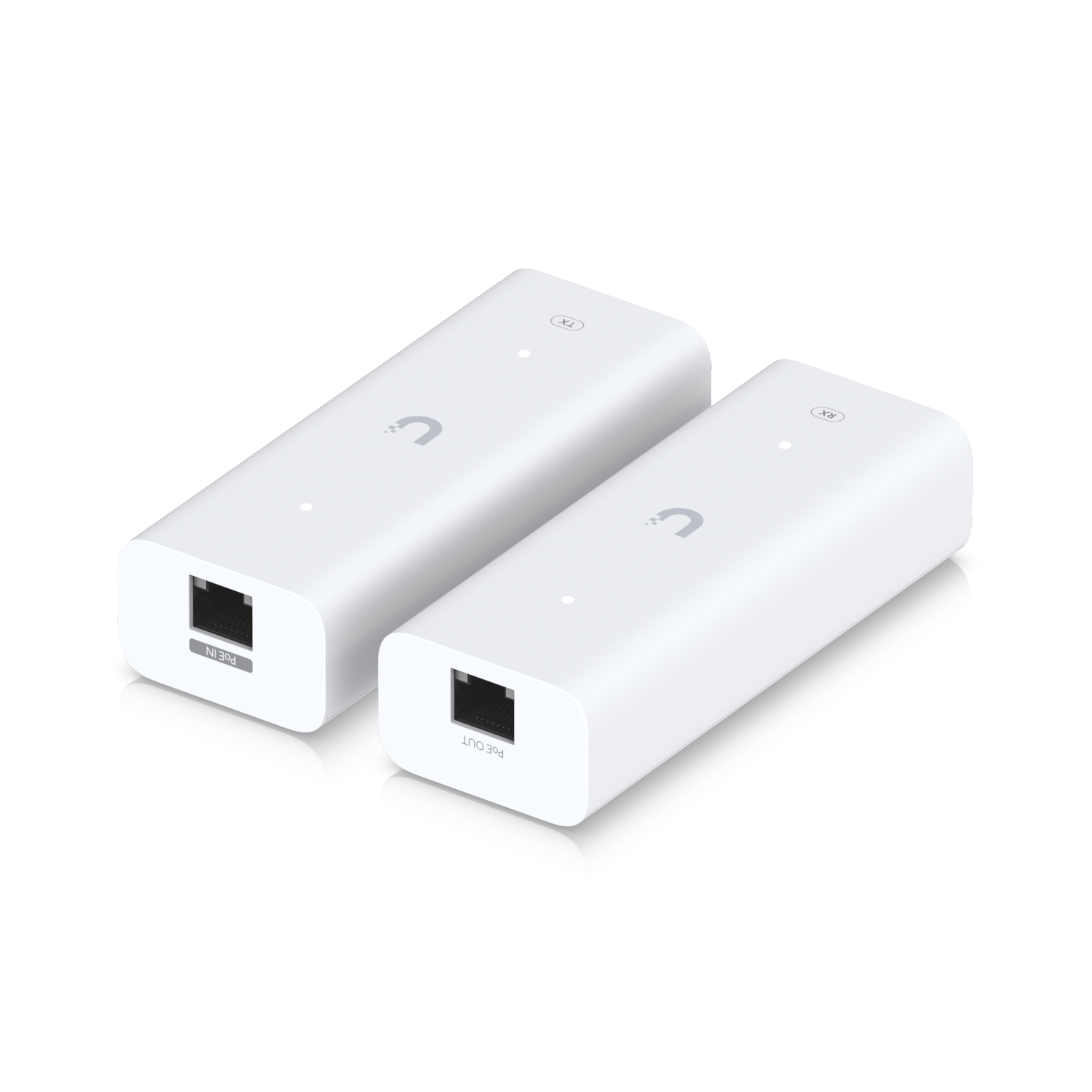

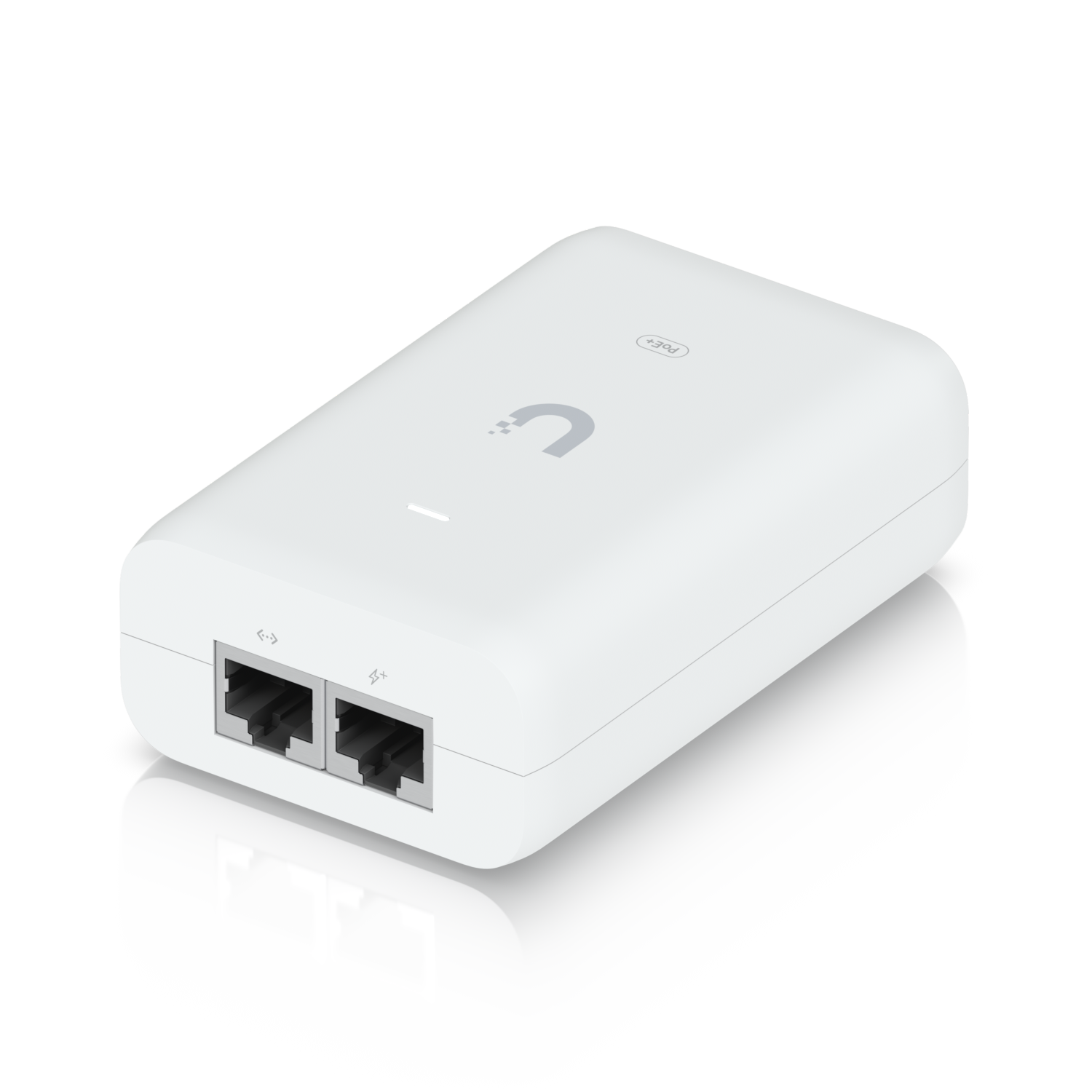

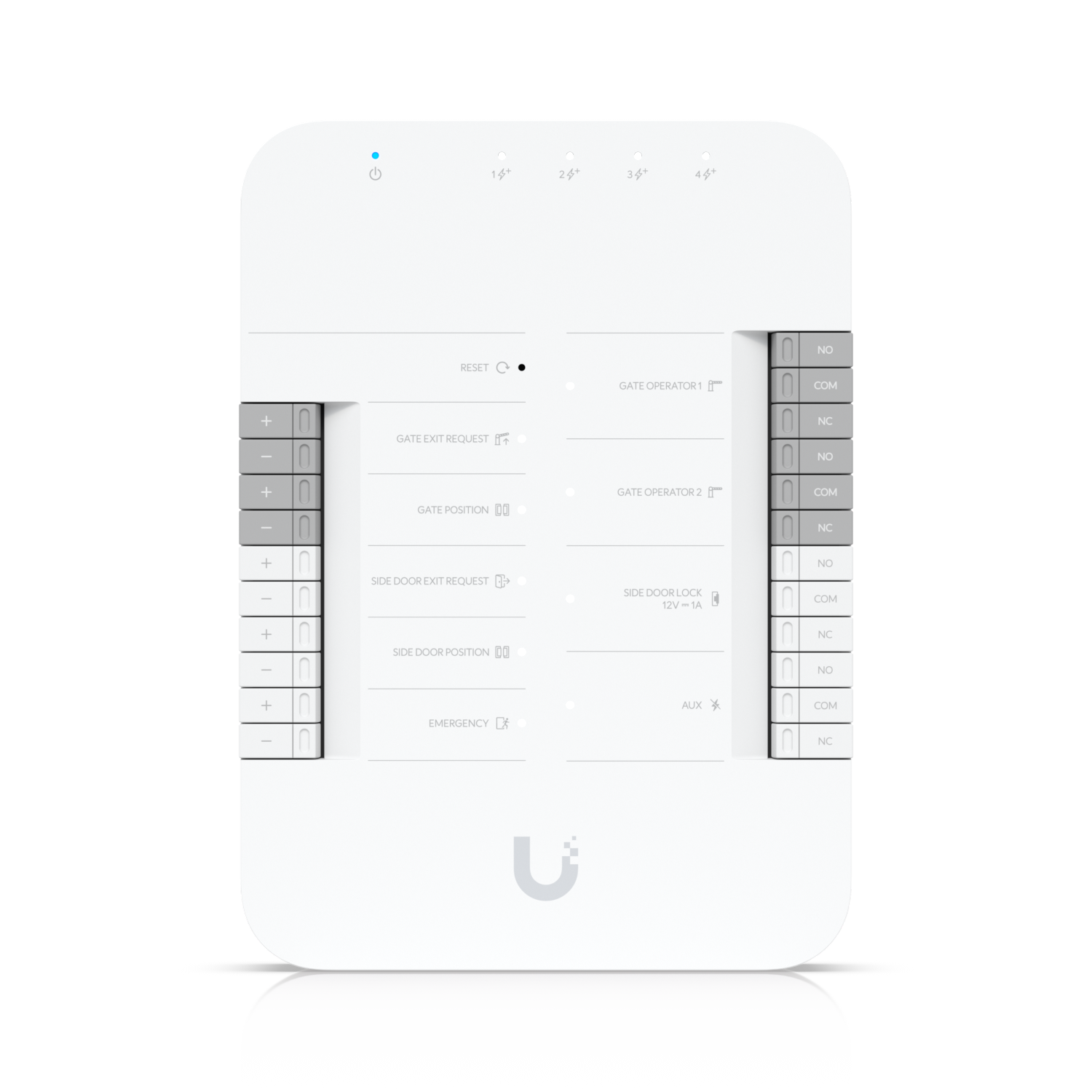

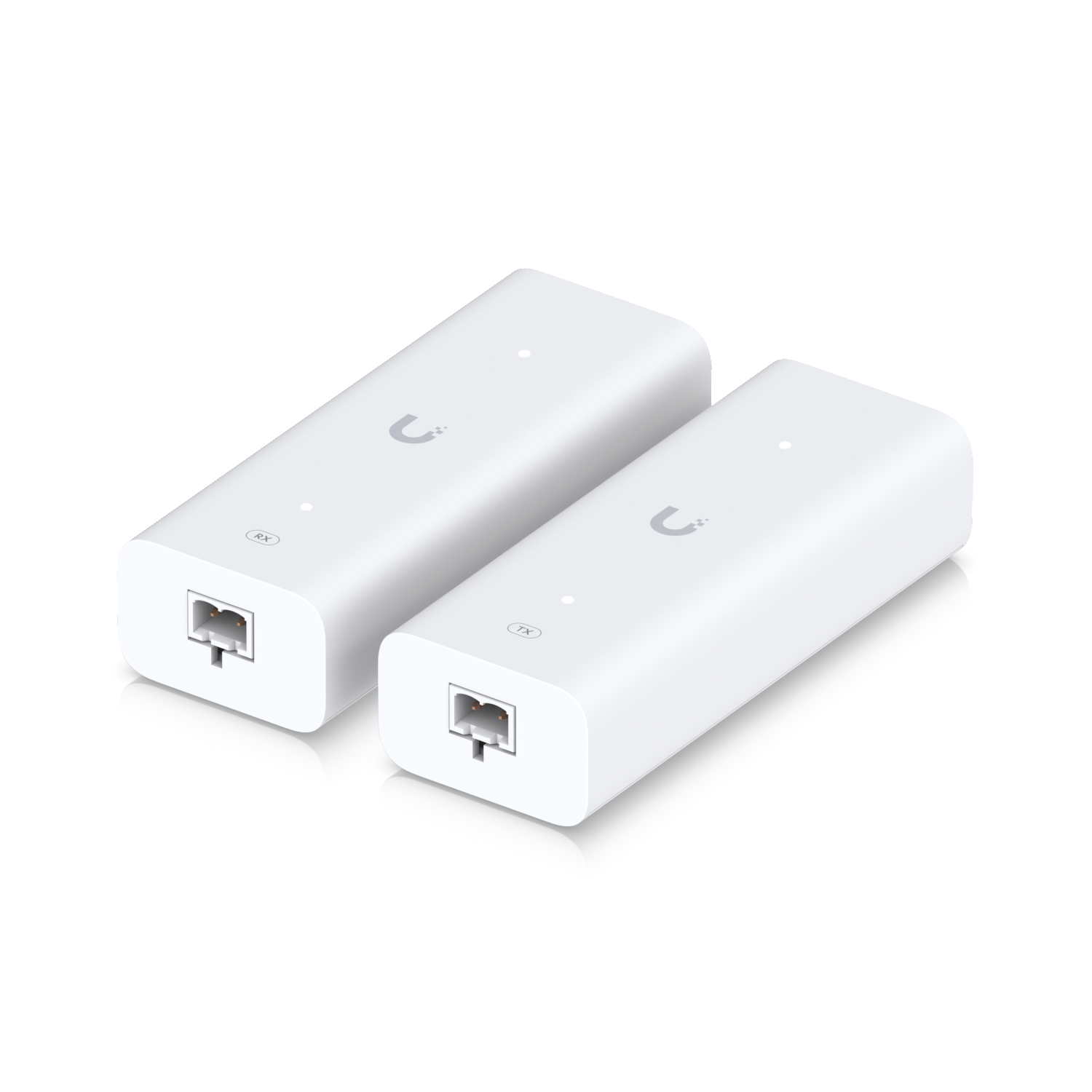

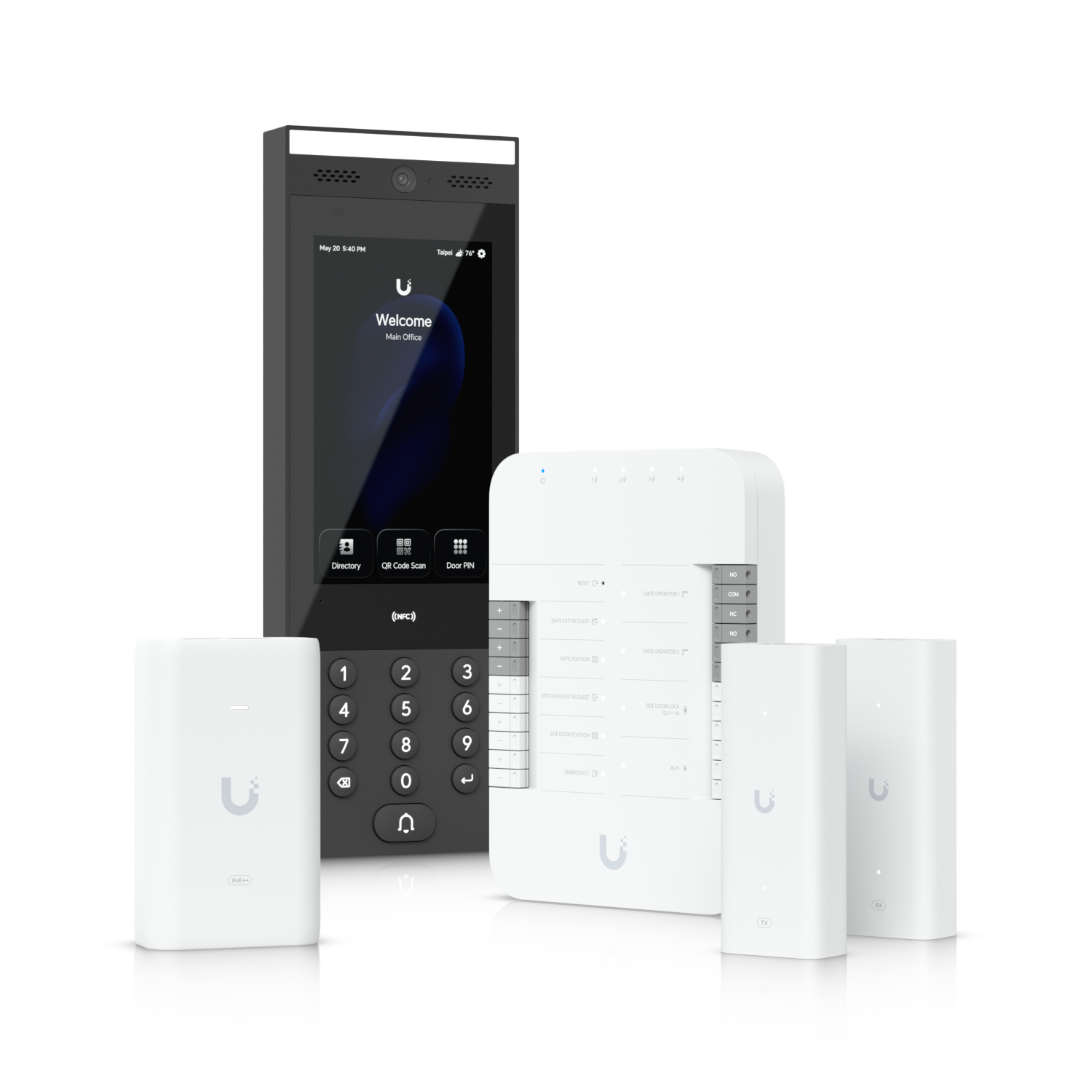

The UniFi G3 Gate Starter Kit (UA-G3-SK-Gate) is a comprehensive access control solution designed specifically for managing vehicle gates and a side door. The kit includes a Gate Hub, a G3 Intercom with a 7″ touchscreen, a PoE++ adapter, and 2-wire Retrofit Extenders. It supports multiple access methods, including NFC, PIN, and mobile unlock, and offers advanced features like License Plate Recognition when paired with a UniFi Protect AI camera.
Specifications:
-
Model: UniFi G3 Gate Starter Kit (UA-G3-SK-Gate)
-
Device Type: Gate Access Starter Kit
-
Function: Complete entry and exit control for one vehicle gate and one side door
-
Authentication: NFC cards/fobs, PIN codes, UniFi Identity app, Apple/Google Wallet, License Plate Recognition
-

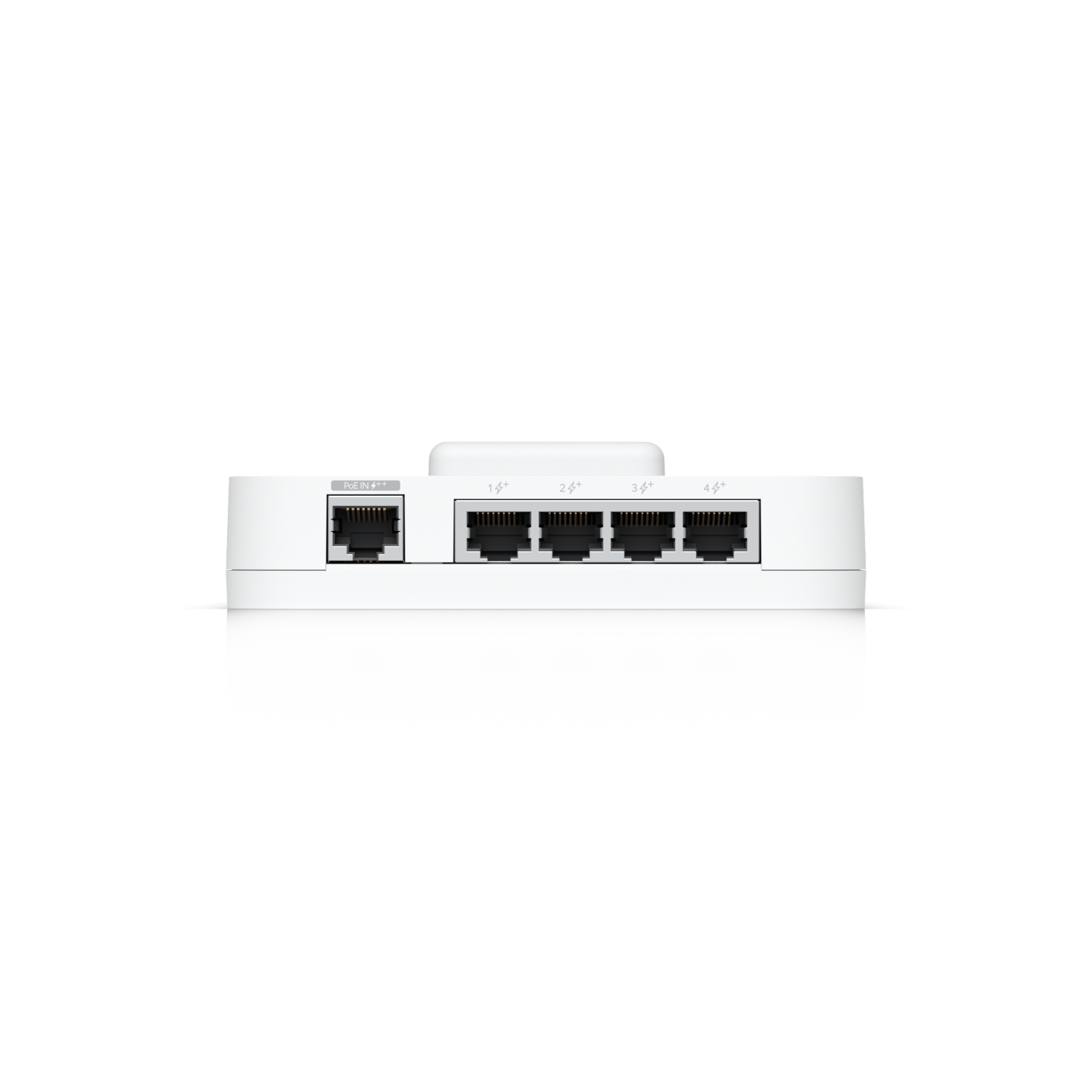

Networking: Gate Hub: (5) 10/100/1000 Base-T ports; G3 Intercom: (1) GbE RJ45 port
-
Connectivity: BLE 4.2, NFC (13.56 MHz)
-
NFC Read Range: < 30 mm
-
Power Method: PoE++ (802.3bt)
-
Weather Resistance: IP65-rated (indoor/outdoor capable)
-
Operating Temperature: -30 to 60° C
-

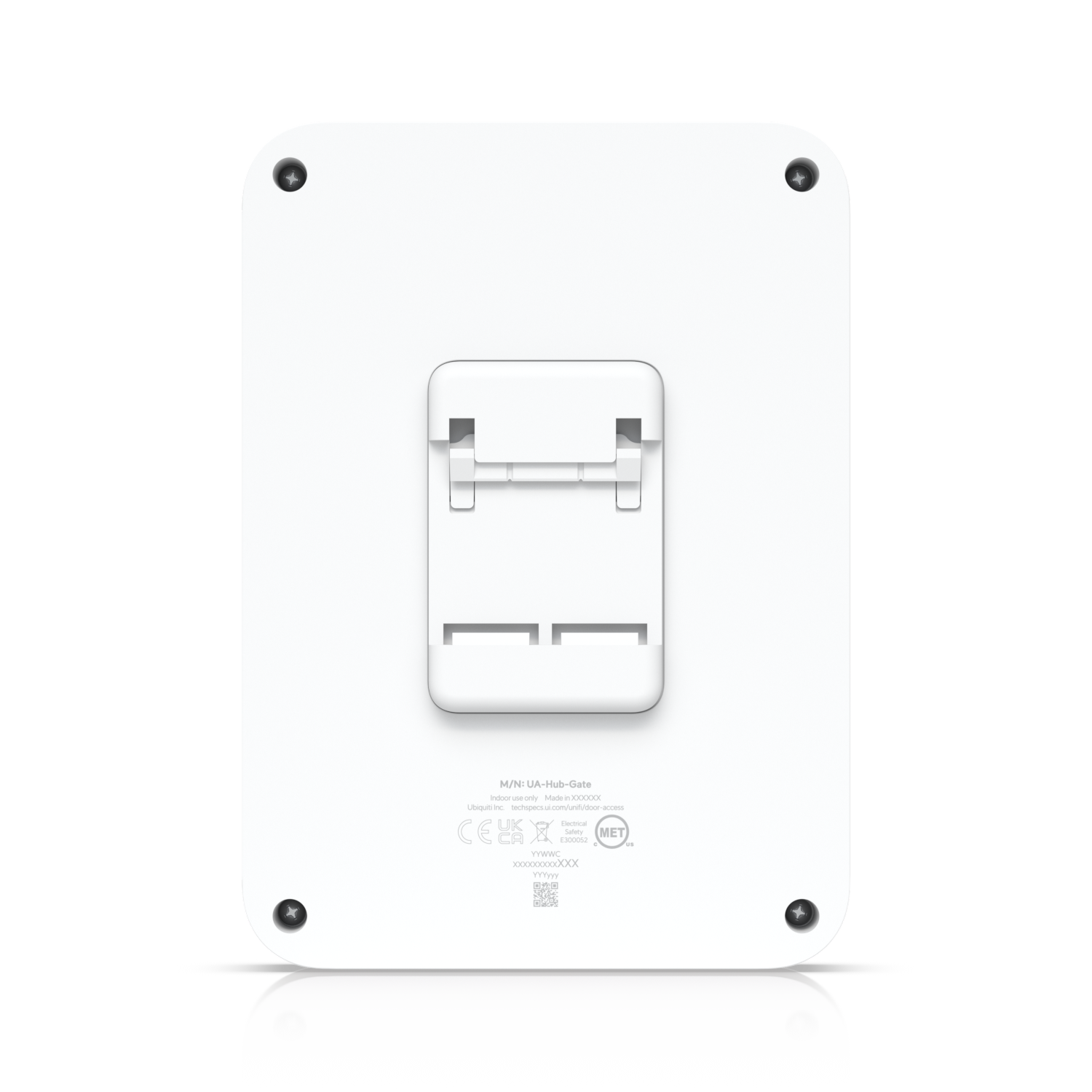

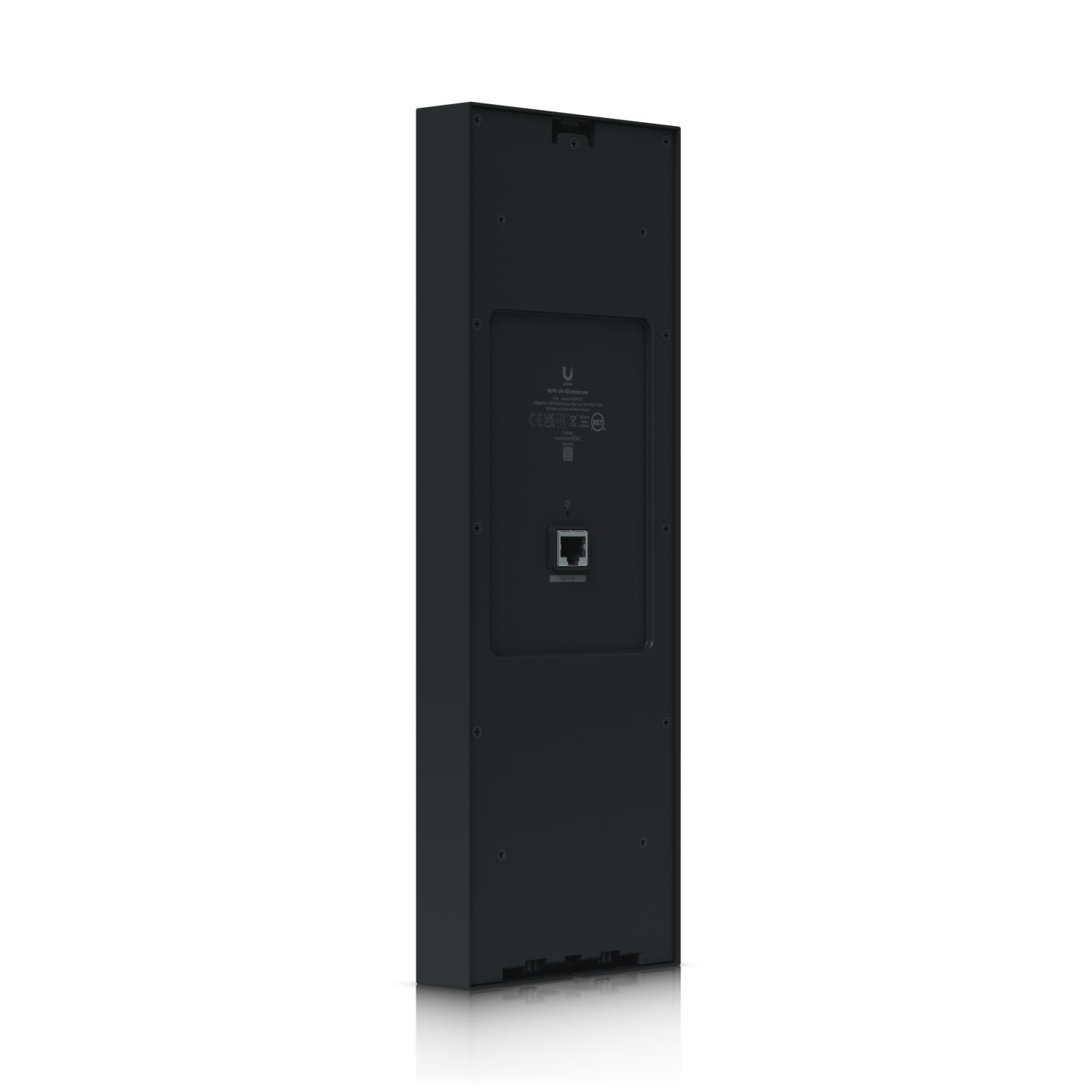

Mounting: Gate Hub: DIN-rail; G3 Intercom: Wall mount
-
Dimensions: Gate Hub: 175 x 126 x 26 mm; G3 Intercom: 324.8 x 113.7 x 28.3 mm
-
Weight: Gate Hub: 460 g; G3 Intercom: 965 g
-
Enclosure Material: Polycarbonate, aluminum alloy, powder-coated stainless steel
-
Use Case: Vehicle gate and pedestrian side door access management for residential and commercial properties
-
Security Features: UL 294 Level I certified, CAN/ULC-60839-11-1 Grade I, NDAA compliant
-
Management: Centralized control via UniFi Access application
-
Design: Durable construction with 7″ touchscreen, two-way intercom, doorbell function, and IP65-rated intercom for outdoor use
-
Compatibility: Works with UniFi Access ecosystem; supports License Plate Recognition with UniFi Protect AI cameras
