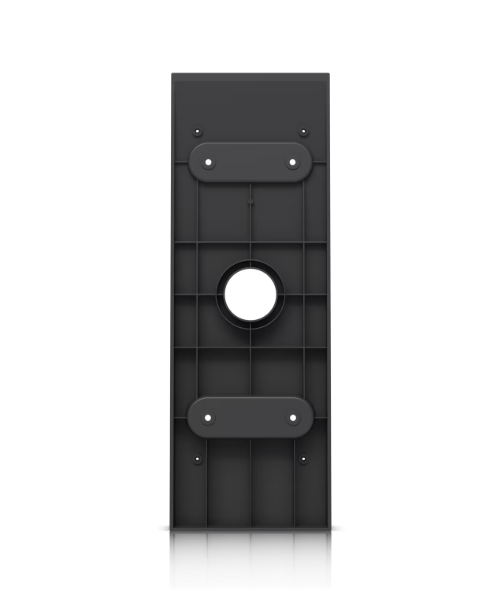

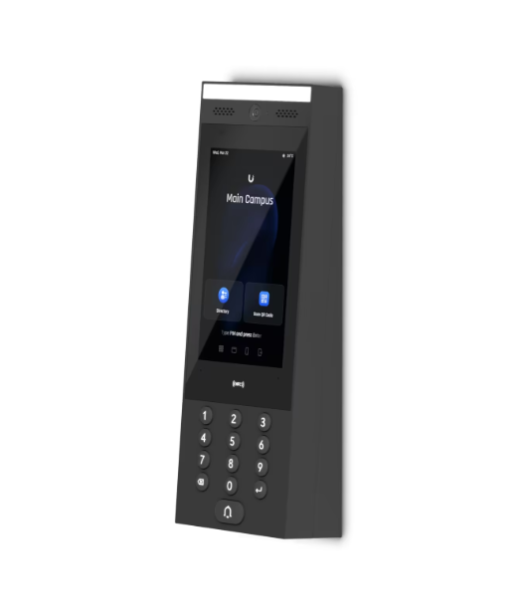

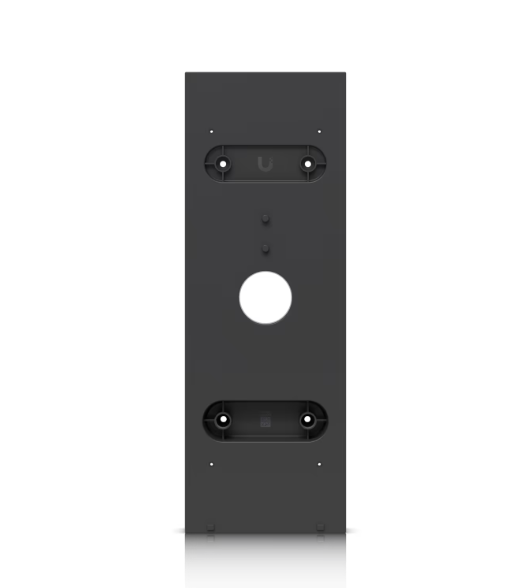

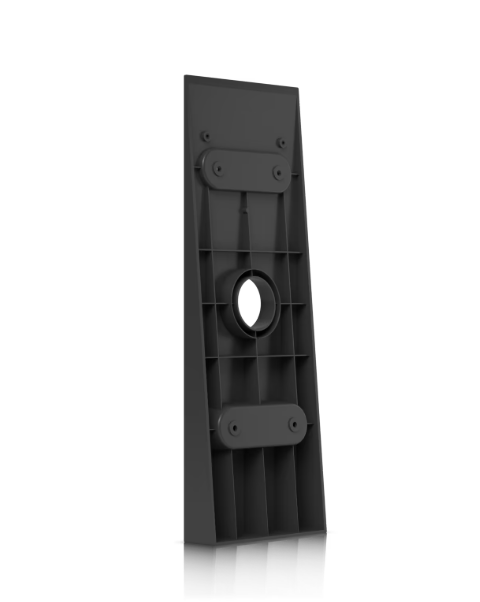

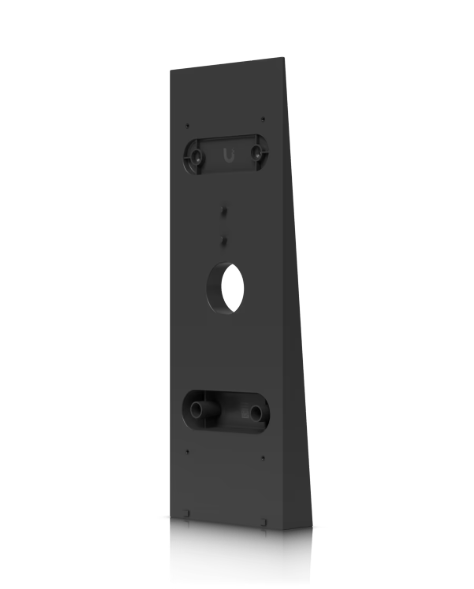

Intercom Surface Angle Mount (UACC-Intercom-SAM)

The Intercom Surface Angle Mount (UACC-Intercom-SAM) is a mounting accessory for the UniFi Access Intercom that provides a 5° upward tilt for better camera coverage and usability. It is designed to improve face capture and keypad accessibility, especially when the intercom is mounted at standard ADA-compliant height of 48 inches .

Specifications:

• Model: Intercom Surface Angle Mount (UACC-Intercom-SAM)

• Device Type: Intercom Surface Mount Accessory

• Function: Provides a 5° upward tilt for the intercom, enhancing the viewing angle and user interaction at standard mounting heights

• Compatibility: UniFi Access Intercom (UA-Intercom) and UA-G3-Intercom

• Dimensions: 324.8 x 113.7 x 34.9 mm (12.8 x 4.5 x 1.4″)

• Weight: 180 g (6.3 oz)

• Enclosure Material: UV-stabilized polycarbonate with PU coating

• Color: Black

• Weatherproofing: Suitable for indoor and outdoor use

• Operating Temperature: -30 to 60° C (-22 to 140° F)

• Storage Temperature: -40 to 70° C (-40 to 158° F)

• Operating Humidity: 5 to 90% noncondensing

• Use Case: Wall and pedestal mounting of the intercom to improve camera angle and accessibility in commercial, residential, and entryway deployments

• Design: Durable, compact surface mount with a minimalist black finish for a clean and professional installation
