Description

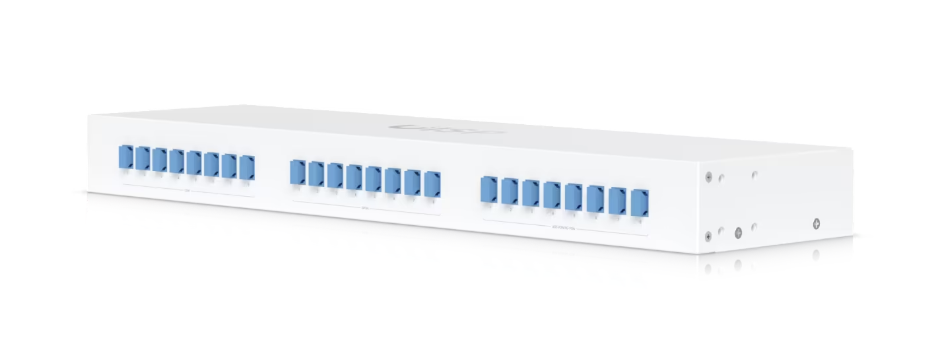

Ubiquiti Fiber Coexistence WDM Filter UACC-UF-WDM-XGS
The Ubiquiti UACC-UF-WDM-XGS is a fiber coexistence WDM filter designed to combine XGS/XG-PON and GPON services into a single fiber distribution system. It provides 8 GPON ports, 8 XGS/XG-PON ports, and 8 splitter output COM ports in a 1U rack-mount form factor, making it suitable for ISP fiber networks that need GPON and XGS/XG-PON coexistence on shared fiber infrastructure.
Specifications:
- Model: Ubiquiti Fiber Coexistence WDM Filter UACC-UF-WDM-XGS
- Device Type: Fiber Coexistence WDM Filter
- Ethernet Ports: 8 × GPON SC/UPC ports, 8 × XGS/XG-PON SC/UPC ports, and 8 × COM SC/UPC splitter output ports
- CPU: Not applicable
- RAM: Not applicable
- Storage: Not applicable
- Operating System: Not applicable
- Routing: Passive WDM filtering for combining XGS/XG-PON and GPON services into a single fiber distribution system
- Management: Not applicable
- Power: Not applicable; passive fiber WDM module
- Dimensions: 442 × 120 × 43.7 mm
- Use Case: GPON and XGS/XG-PON coexistence, ISP fiber broadband networks, FTTx deployments, fiber distribution systems, shared fiber infrastructure, and rack-mounted passive optical network installations.
