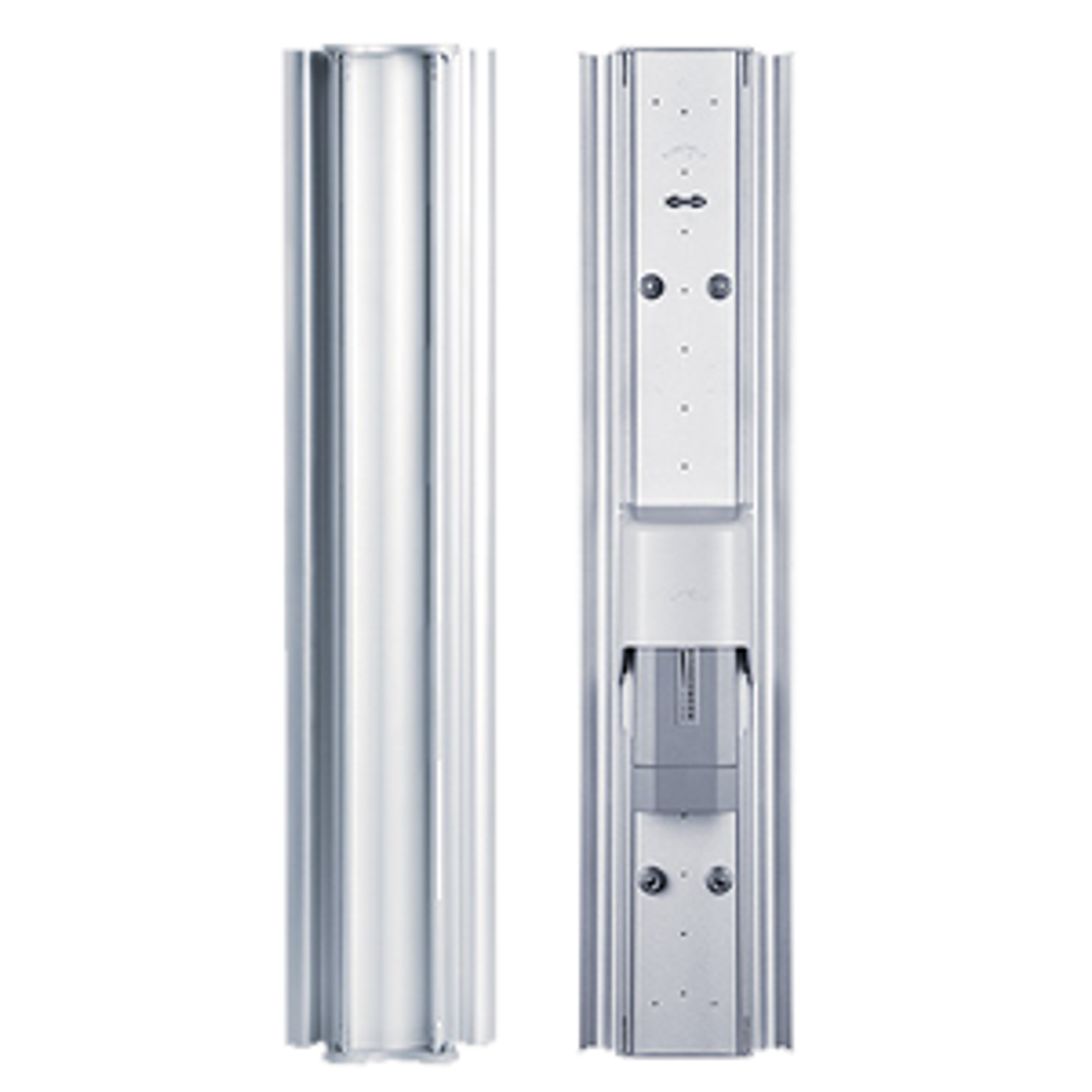

Ubiquiti airMAX Titanium Sector Antenna AM-V2G-Ti

←
Get Your Custom Quote!

The Ubiquiti AM-V2G-Ti is a 2.4 GHz airMAX Titanium Sector Antenna designed for Point-to-MultiPoint (PtMP) applications. It features adjustable beamwidth options of 60°, 90°, and 120°, allowing for flexible deployment configurations. With advanced RF isolation and a rugged design, it ensures optimal performance in high-density environments and co-location deployments.

SPECIFICATIONS

• Frequency Range: 2.3 – 2.6 GHz

• Gain:

  • 17 dBi @ 60°

  • 16 dBi @ 90°

  • 15 dBi @ 120°

• Beamwidth Angles: 60° / 90° / 120°

• Electrical Downtilt: 4°

• Polarization: Dual Linear

• Cross-Polarization Isolation: ≥ 25 dB

• Front-to-Back Ratio: 30 dB Typical

• VSWR: 1.5:1 max

• RF Connectors: 2 x RP-SMA (weatherproof)

• Dimensions: 773 x 372 x 120 mm (30.43 x 14.65 x 4.72″)

• Weight: 6.4 kg (14.11 lb)

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 640.5 N @ 200 km/h (144 lbf @ 125 mph)

• Mounting: Pole mount (hardware included)

• Compatible Radios: RocketM2 Titanium, RocketM2
