Description

Ubiquiti EdgePoint R8 (EP-R8)

←
Get Your Custom Quote!

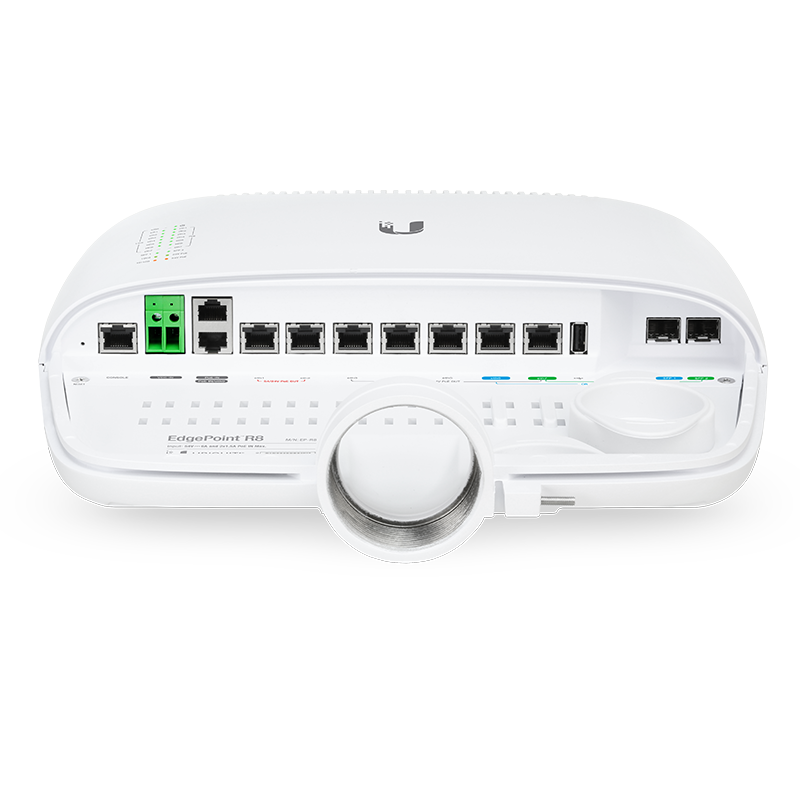

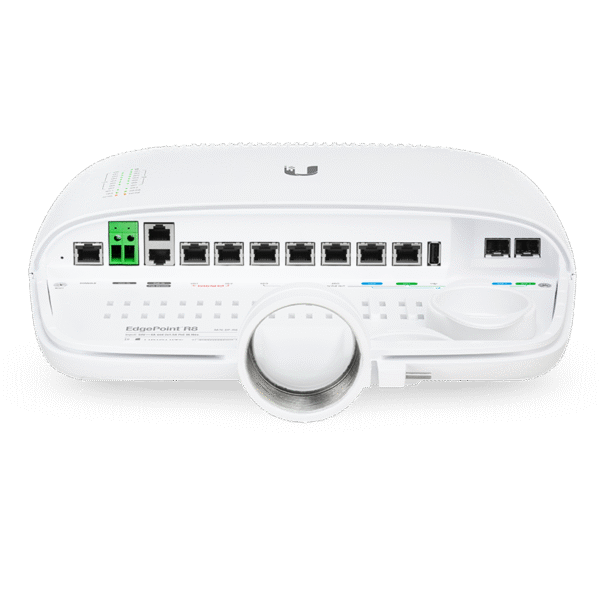

The Ubiquiti EdgePoint R8 (EP-R8) is an advanced outdoor router designed specifically for WISP (Wireless Internet Service Provider) applications. It combines robust routing capabilities with fiber backhaul support and integrated surge protection via FiberProtect™ technology. The device features a rugged, weather-resistant enclosure suitable for pole or wall-mounted installations, reducing equipment clutter and simplifying deployments.

SPECIFICATIONS

• Processor: Dual-core 600 MHz MIPS64 with hardware acceleration for packet processing

• Memory: 2 GB DDR3-1600 RAM

• Storage: 4 GB

• Networking Interfaces:

  • (6) 10/100/1000 Mbps RJ45 Ethernet ports

  • (2) 10/100/1000 Mbps RJ45/SFP combination ports

  • (1) RJ45 serial port

  • (1) RJ45 PoE In port

• Power Input Options:

  • 54V DC via terminal block

  • 54V Passive PoE on eth0 and PoE In ports

• PoE Output:

  • (2) 54V or 24V / 1.4A, 4-pair passive PoE on eth1 to eth2

  • (5) 24V / 0.7A, 2-pair passive PoE on eth3 to eth7

• Max Power Consumption: 40W (excluding PoE output)

• Enclosure: Diecast aluminum alloy, UV-resistant polycarbonate

• Mounting: Pole or wall mount

• Dimensions:

  • Without wall-mount: 326.6 x 382.7 x 88.8 mm

  • With wall-mount: 326.6 x 382.7 x 105.5 mm

• Weight:

  • Without wall-mount: 3.4 kg

  • With wall-mount: 3.8 kg

• Operating Temperature: -40°C to 65°C

• Operating Humidity: 10% to 90% non-condensing
