Description

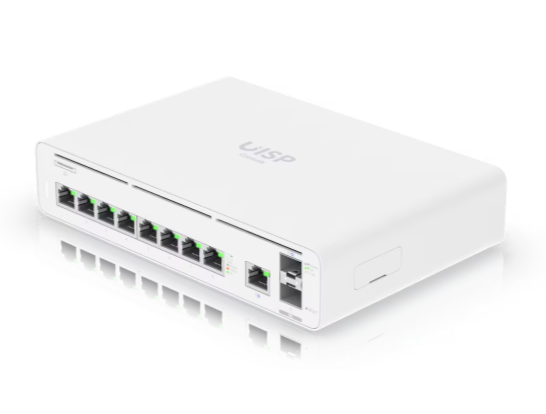

Ubiquiti UISP Console UISP-Console
The Ubiquiti UISP Console UISP-Console is a UISP host console with an integrated switch and multi-gigabit Ethernet gateway, designed for ISP, WISP, MicroPoP, and service provider network management. It includes Gigabit RJ45 LAN ports, 10G SFP+ LAN/WAN connectivity, onboard SSD storage, microSD expansion, UISP management, and Power TransPort DC input support for professional network infrastructure deployments.
Specifications:
- Model: Ubiquiti UISP Console UISP-Console
- Device Type: UISP Host Console with Integrated Switch and Multi-Gigabit Ethernet Gateway
- Ethernet Ports: 8 × GbE RJ45 LAN ports, 1 × 1/10G SFP+ LAN port, 1 × GbE RJ45 WAN port, 1 × 1/10G SFP+ WAN port
- CPU: Quad-core ARM Cortex-A57 at 1.7 GHz
- RAM: 4 GB DDR4
- Storage: 16 GB eMMC flash, 128 GB SSD, and 1 × microSD card slot up to 2TB
- Operating System: UISP console firmware
- Routing: Multi-gigabit Ethernet gateway with GbE RJ45 WAN, 1/10G SFP+ WAN, GbE LAN switching, and 1/10G SFP+ LAN support
- Management: Ethernet in-band and Bluetooth
- Power: External AC/DC adapter or Power TransPort DC input; 24V DC, 2.5A adapter included; 27V DC, 1.5A Power TransPort input; maximum power consumption 30W
- Dimensions: 210.4 × 140.2 × 43.7 mm
- Use Case: UISP hosting, ISP and WISP network management, MicroPoP deployments, multi-gigabit gateway routing, service provider edge networks, 10G SFP+ uplinks, and managed UISP infrastructure.
